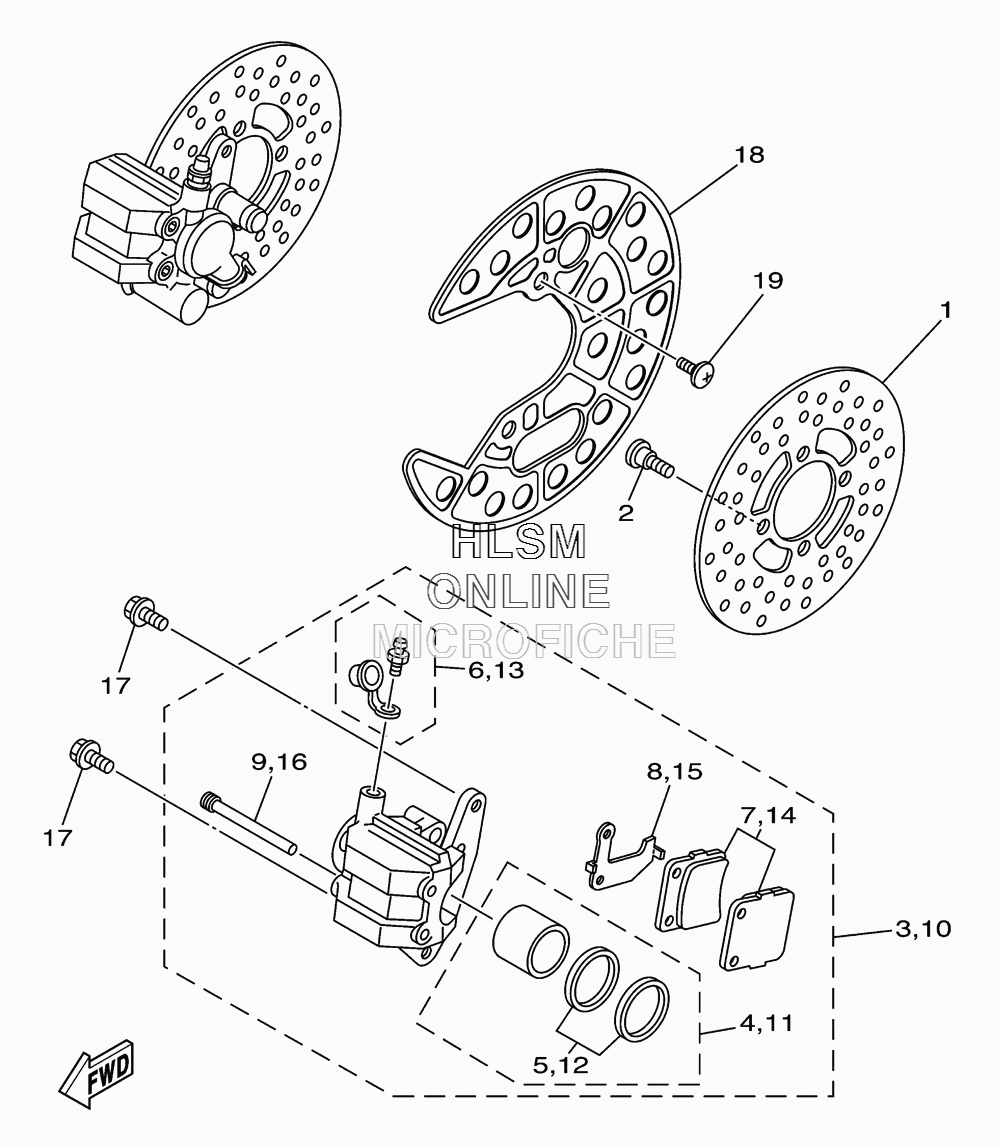

BRAKE - FRONT CALIPER для Yamaha RAPTOR 350 - 2011 года выпуска`
-
№АртикулНазвание
-
13GD-2582T-10-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290109-08082-00 BOLTBOLT
-
35LP-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
43GD-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
53GD-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
61UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
75LP-W0045-00-00 BRAKE PAD KITBRAKE PAD KIT
-
83GD-25827-00-00 SHIM, CALIPERSHIM, CALIPER
-
93GD-25933-00-00 PIN, PADPIN, PAD
-
105LP-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
113GD-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
123GD-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
131UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
145LP-W0045-00-00 BRAKE PAD KITBRAKE PAD KIT
-
153GD-25828-00-00 SHIM, CALIPERSHIM, CALIPER
-
163GD-25933-00-00 PIN, PADPIN, PAD
-
1790105-08161-00 BOLT, FLANGEBOLT, FLANGE
-
185YT-2514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
1990149-06117-00 SCREWSCREW
