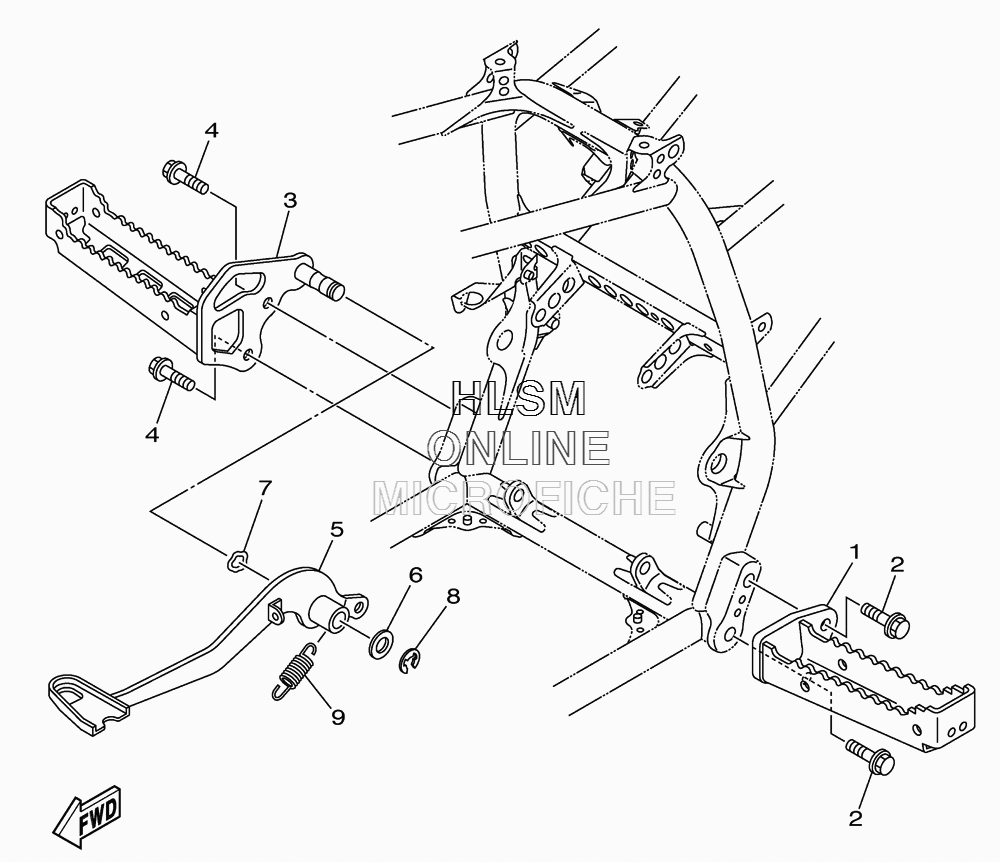

FOOTREST W/ BRAKE PEDAL для Yamaha RAPTOR 250 SPECIAL EDITION - 2011 года выпуска`
-
№АртикулНазвание
-
14D3-27411-00-00 FOOTREST 1FOOTREST 1
-
295812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
34D3-27421-00-00 FOOTREST 2FOOTREST 2
-
495812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
54D3-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
690201-15018-00 WASHER, PLATEWASHER, PLATE
-
790206-15021-00 WASHER, WAVEWASHER, WAVE
-
893430-12008-00 CIRCLIPCIRCLIP
-
990506-20026-00 SPRING, TENSIONSPRING, TENSION
