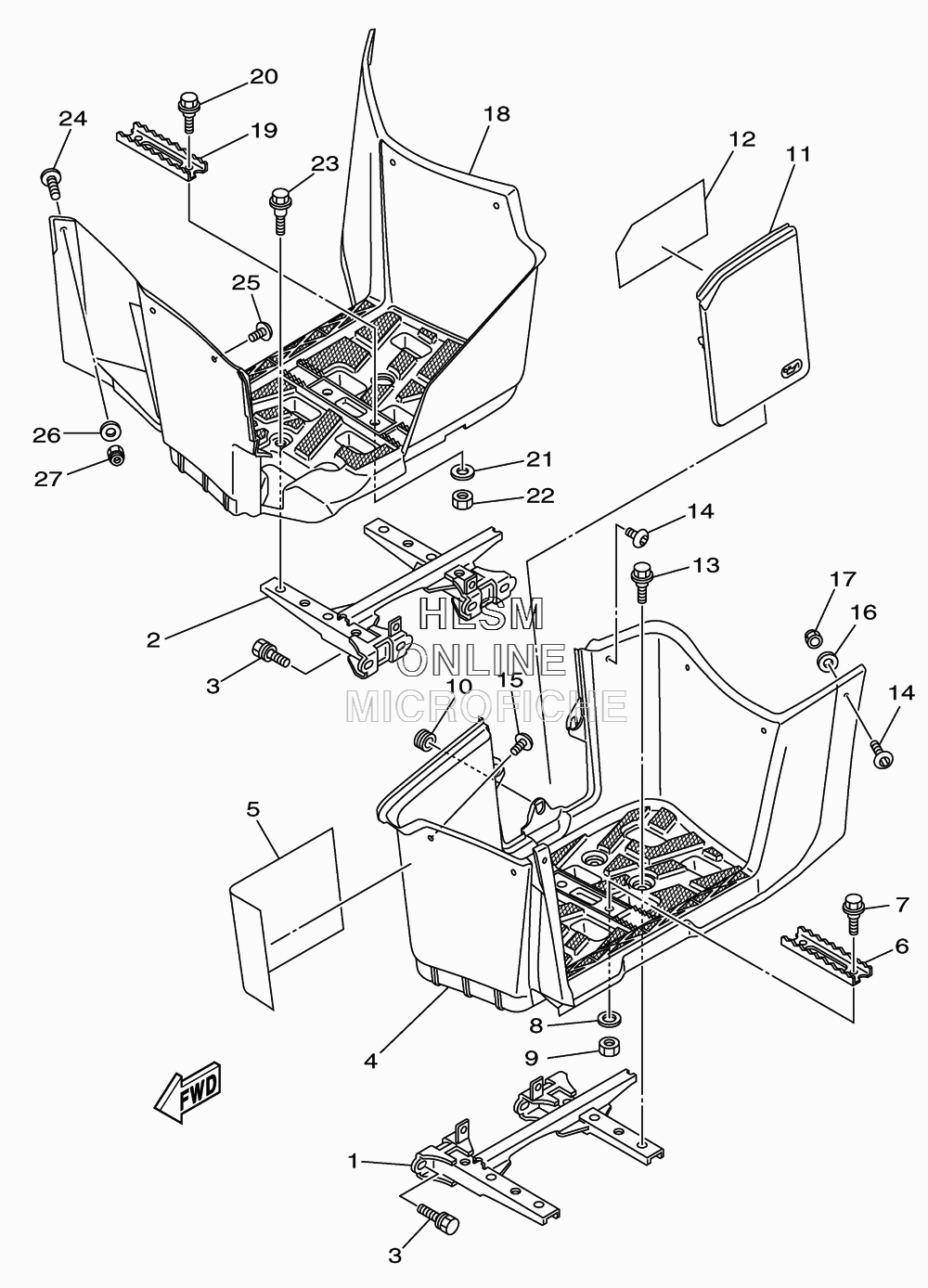

FOOTREST W/ BRAKE PEDAL для Yamaha GRIZZLY 700 EPS 4WD HUNTER - 2011 года выпуска`
-
№АртикулНазвание
-
13B4-27452-00-00 BRACKET, FOOTREST 1BRACKET, FOOTREST 1
-
23B4-27462-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
390119-10044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
43B4-27453-01-00 COVER 1COVER 1
-
53B4-21732-00-00 SEAL 1SEAL 1
-
65GH-2741A-10-00 ARM 1ARM 1
-
790109-06214-00 BOLTBOLT
-
890201-06033-00 WASHER, PLATEWASHER, PLATE
-
995312-06600-00 NUTNUT
-
1090480-14532-00 GROMMETGROMMET
-
113B4-28239-01-00 COVER 3COVER 3
-
123B4-21735-00-00 SEAL 2SEAL 2
-
1390109-06172-00 BOLTBOLT
-
1490111-06136-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1590111-06137-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1690201-06078-00 WASHER, PLATEWASHER, PLATE
-
1795702-06300-00 NUT, NYLONNUT, NYLON
-
183B4-27463-01-00 COVER 2COVER 2
-
195GH-2741A-10-00 ARM 1ARM 1
-
2090109-06214-00 BOLTBOLT
-
2190201-06033-00 WASHER, PLATEWASHER, PLATE
-
2295312-06600-00 NUTNUT
-
2390109-06172-00 BOLTBOLT
-
2490111-06136-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2590111-06137-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2690201-06078-00 WASHER, PLATEWASHER, PLATE
-
2795702-06300-00 NUT, NYLONNUT, NYLON
