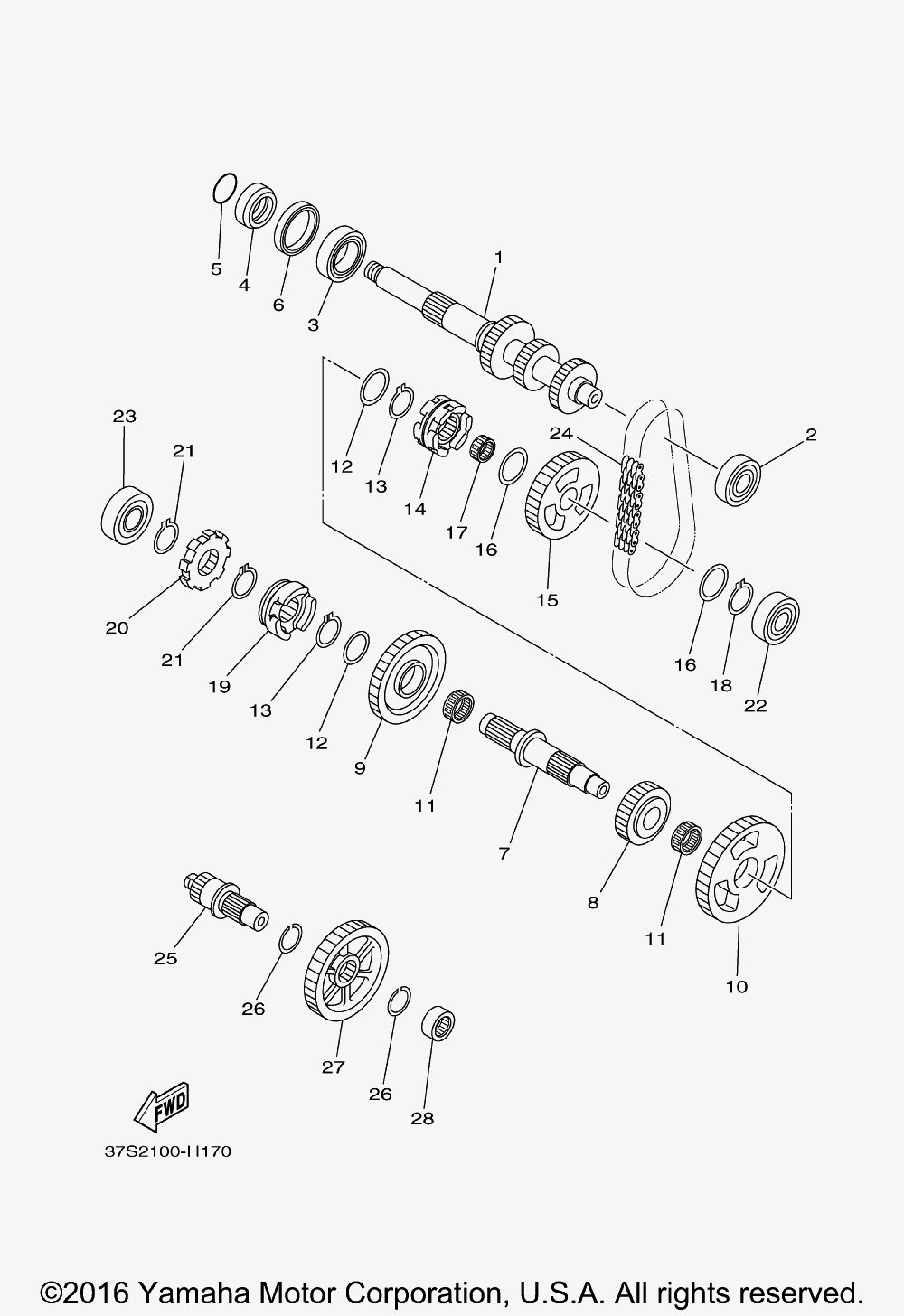

TRANSMISSION для Yamaha GRIZZLY 450 EPS 4WD (PURPLISH BLUE) - 2011 года выпуска`
![](/wa-data/public/shop/sheme/yamaha/atv/680147bd-d218-4633-8cc2-dc5b219bc5d7.gif)
-
№АртикулНазвание
-
15GH-17681-11-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
293306-00415-00 BEARINGBEARING
-
393306-20601-00 BEARINGBEARING
-
490387-26001-00 COLLARCOLLAR
-
593210-26001-00 O-RINGO-RING
-
693102-42004-00 OIL SEALOIL SEAL
-
75GH-17402-01-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
85GH-17582-00-00 GEAR, MIDDLE DRIVE(24T)GEAR, MIDDLE DRIVE(24T)
-
95GH-17223-00-00 GEAR, HIGH WHEEL(38T)GEAR, HIGH WHEEL(38T)
-
105GH-17233-00-00 GEAR, LOW WHEEL(45T)GEAR, LOW WHEEL(45T)
-
1193310-32590-00 BEARINGBEARING
-
1290201-250R9-00 WASHER, PLATEWASHER, PLATE
-
1393440-25084-00 CIRCLIPCIRCLIP
-
141D9-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
155GH-17453-10-00 SPROCKET, DRIVEN(29T)SPROCKET, DRIVEN(29T)
-
1690201-20278-00 WASHER, PLATEWASHER, PLATE
-
1793310-420F2-00 BEARINGBEARING
-
1893410-20038-00 CIRCLIPCIRCLIP
-
191D9-17286-00-00 HOLDERHOLDER
-
205GH-17473-00-00 STOPPERSTOPPER
-
2193440-25084-00 CIRCLIPCIRCLIP
-
2293306-30201-00 BEARINGBEARING
-
2393306-20464-00 BEARINGBEARING
-
2494591-54038-00 CHAIN(23RH302-38 ASM)CHAIN(23RH302-38 ASM)
-
255ND-17523-00-00 SHAFTSHAFT
-
2693440-25084-00 CIRCLIPCIRCLIP
-
275GH-17583-00-00 GEAR, MIDDLE DRIVEN(39T)GEAR, MIDDLE DRIVEN(39T)
-
2893311-42077-00 BEARINGBEARING
