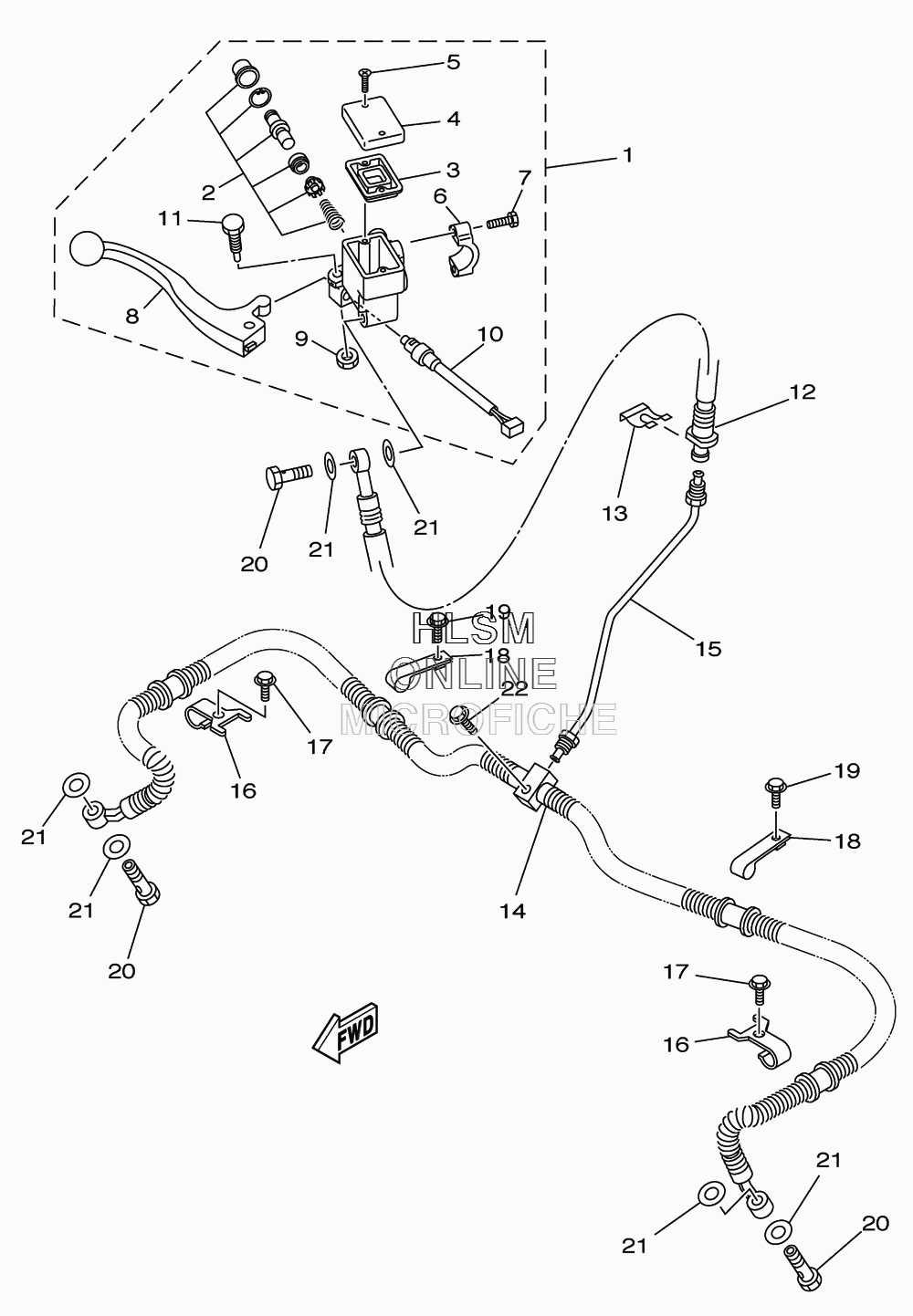

BRAKE - FRONT MASTER CYLINDER для Yamaha GRIZZLY 350 IRS 4WD - 2011 года выпуска`
-
№АртикулНазвание
-
15KM-2583T-01-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
28CR-W0041-00-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
34L0-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
45JX-25852-01-00 CAP, RESERVOIRCAP, RESERVOIR
-
598706-04012-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
65GH-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
75EB-26332-00-00 BOLTBOLT
-
85KM-83922-00-00 LEVER 2LEVER 2
-
995606-06100-00 NUT, UNUT, U
-
105LP-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
111FK-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
125ND-F5872-01-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
132GU-25866-00-00 CIRCLIPCIRCLIP
-
145ND-F5873-01-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
155ND-F5871-00-00 PIPE, BRAKEPIPE, BRAKE
-
165ND-F5875-01-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
1795822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
185ND-F3192-01-00 BANDBAND
-
1995822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2090401-10015-00 BOLT, UNIONBOLT, UNION
-
2190201-10118-00 WASHER, PLATEWASHER, PLATE
-
2295802-06025-00 BOLT, FLANGEBOLT, FLANGE
