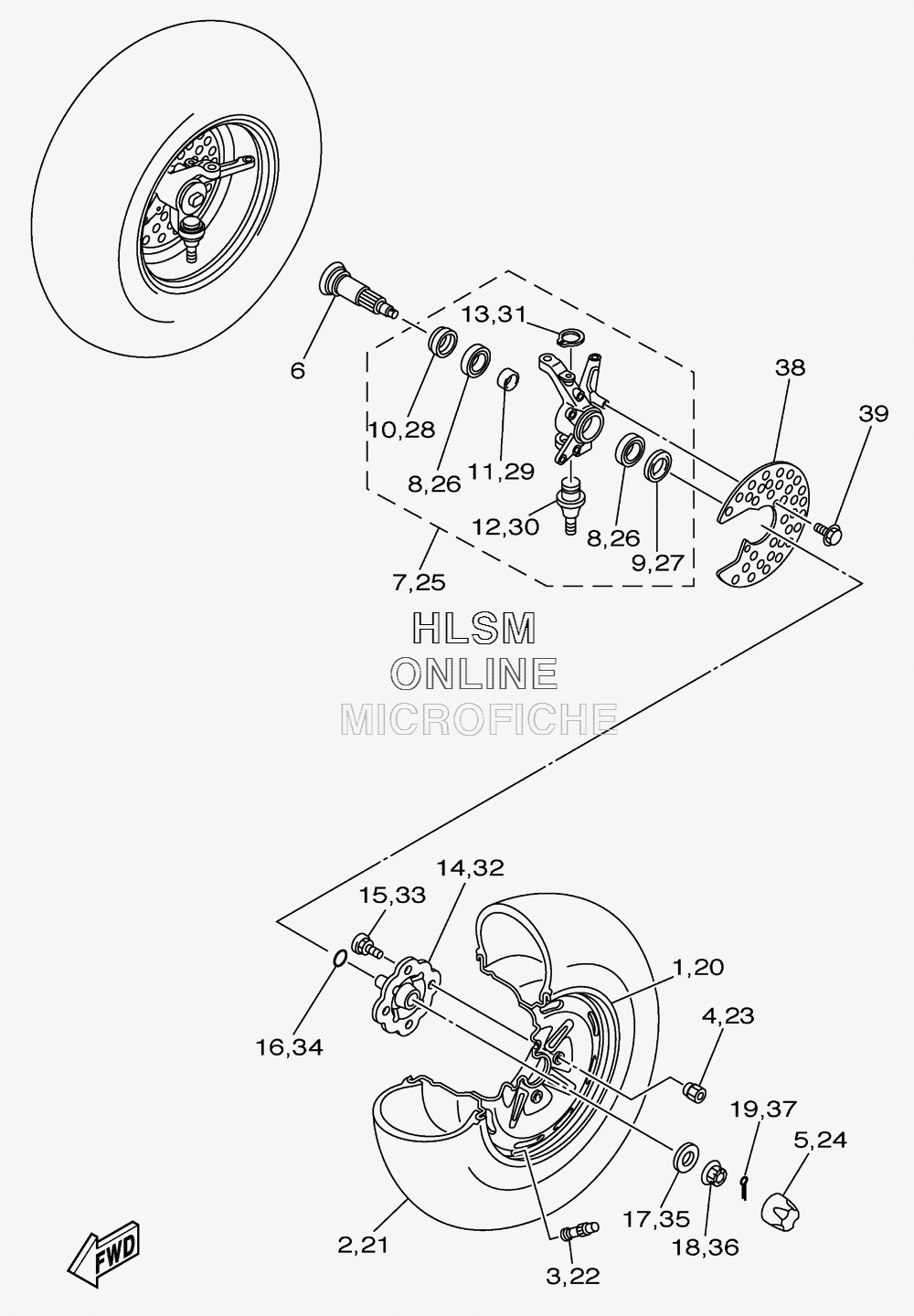

WHEEL - FRONT W/ AXLE ASSY для Yamaha GRIZZLY 350 2WD - 2011 года выпуска`
-
№АртикулНазвание
-
15ND-F5180-11-00 WHEEL COMP.WHEEL COMP.
-
294108-12816-00 TIRE (AT25X8-12 MU13TL) CHENG SHINTIRE (AT25X8-12 MU13TL) CHENG SHIN
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
490179-10022-00 NUTNUT
-
55GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
65HA-25181-00-00 AXLE, WHEELAXLE, WHEEL
-
75ND-F3501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
893306-006Y2-00 BEARINGBEARING
-
993106-38046-00 OIL SEALOIL SEAL
-
1093106-38047-00 OIL SEALOIL SEAL
-
1190560-30325-00 SPACERSPACER
-
1237S-23549-00-00 BALL JOINT 1BALL JOINT 1
-
1399009-32400-00 CIRCLIPCIRCLIP
-
145ND-F5111-21-00 HUB, FRONTHUB, FRONT
-
1590114-10014-00 BOLT, SERRATIONBOLT, SERRATION
-
1693210-27666-00 O-RINGO-RING
-
1790201-16804-00 WASHER, PLATEWASHER, PLATE
-
1890171-16002-00 NUT, CASTLENUT, CASTLE
-
1991402-30030-00 PIN, COTTERPIN, COTTER
-
205ND-F5180-11-00 WHEEL COMP.WHEEL COMP.
-
2194108-12816-00 TIRE (AT25X8-12 MU13TL) CHENG SHINTIRE (AT25X8-12 MU13TL) CHENG SHIN
-
2293900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
2390179-10022-00 NUTNUT
-
245GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
255ND-F3502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2693306-006Y2-00 BEARINGBEARING
-
2793106-38046-00 OIL SEALOIL SEAL
-
2893106-38047-00 OIL SEALOIL SEAL
-
2990560-30325-00 SPACERSPACER
-
3037S-23549-00-00 BALL JOINT 1BALL JOINT 1
-
3199009-32400-00 CIRCLIPCIRCLIP
-
325ND-F5111-21-00 HUB, FRONTHUB, FRONT
-
3390114-10014-00 BOLT, SERRATIONBOLT, SERRATION
-
3493210-27666-00 O-RINGO-RING
-
3590201-16804-00 WASHER, PLATEWASHER, PLATE
-
3690171-16002-00 NUT, CASTLENUT, CASTLE
-
3791402-30030-00 PIN, COTTERPIN, COTTER
-
385ND-F514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
3995822-06012-00 BOLT, FLANGEBOLT, FLANGE
