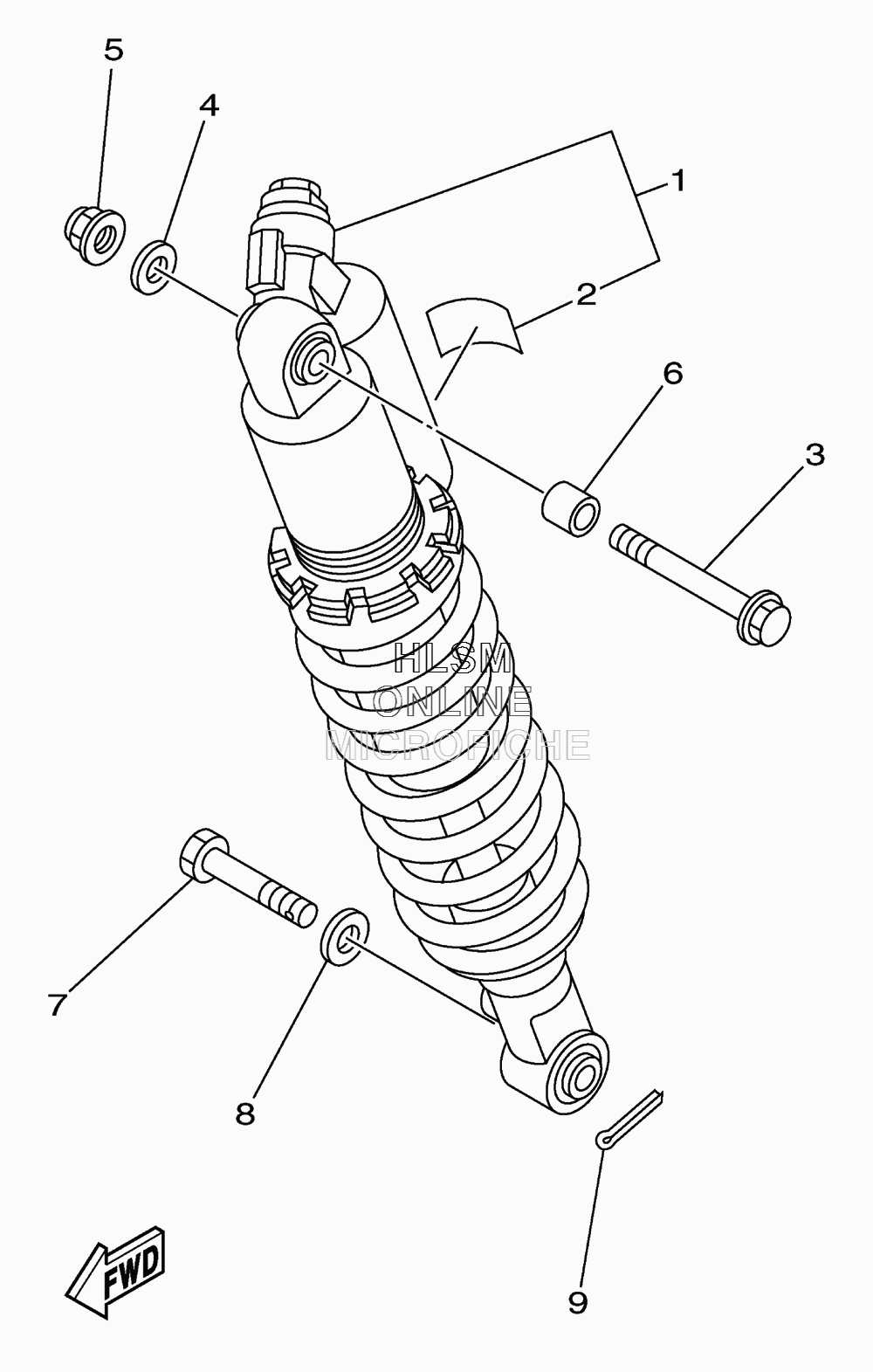

SUSPENSION - REAR SHOCK ABSORBER для Yamaha YFZ450X - 2010 года выпуска`
-
№АртикулНазвание
-
118P-22210-00-00 SHOCK ABSORBER ASSY, REAR (FOR DPBSE)SHOCK ABSORBER ASSY, REAR (FOR DPBSE)
-
118P-22210-40-00 SHOCK ABSORBER ASSY, REAR (FOR BWS1 )SHOCK ABSORBER ASSY, REAR (FOR BWS1 )
-
24AA-22259-80-00 LABEL, WARNINGLABEL, WARNING
-
390105-12038-00 BOLT, FLANGEBOLT, FLANGE
-
490201-12032-00 WASHER, PLATEWASHER, PLATE
-
590185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
690387-12046-00 COLLARCOLLAR
-
790102-12005-00 BOLT, PIN HOLE HEX.BOLT, PIN HOLE HEX.
-
890201-12034-00 WASHER, PLATEWASHER, PLATE
-
991402-30025-00 PIN, COTTERPIN, COTTER
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- ELECTRICAL
- EMBLEMS
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR - SWITCHES/LEVERS
- HANDLEBAR W/ CABLES
- HEADLIGHT
- LABELS
- MODEL INFO - MANUAL
- OIL PUMP
- RACK AND BUMPER
- RADIATOR ASSY
- SEAT
- SHIFT CAM W/ FORK
- SIDE COVER
- STAND - FOOTREST
- STARTER - RECOIL
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- • SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- THROTTLE BODY ASSY.
- TRANSMISSION
- VALVE ASSY
- WATER PUMP ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
