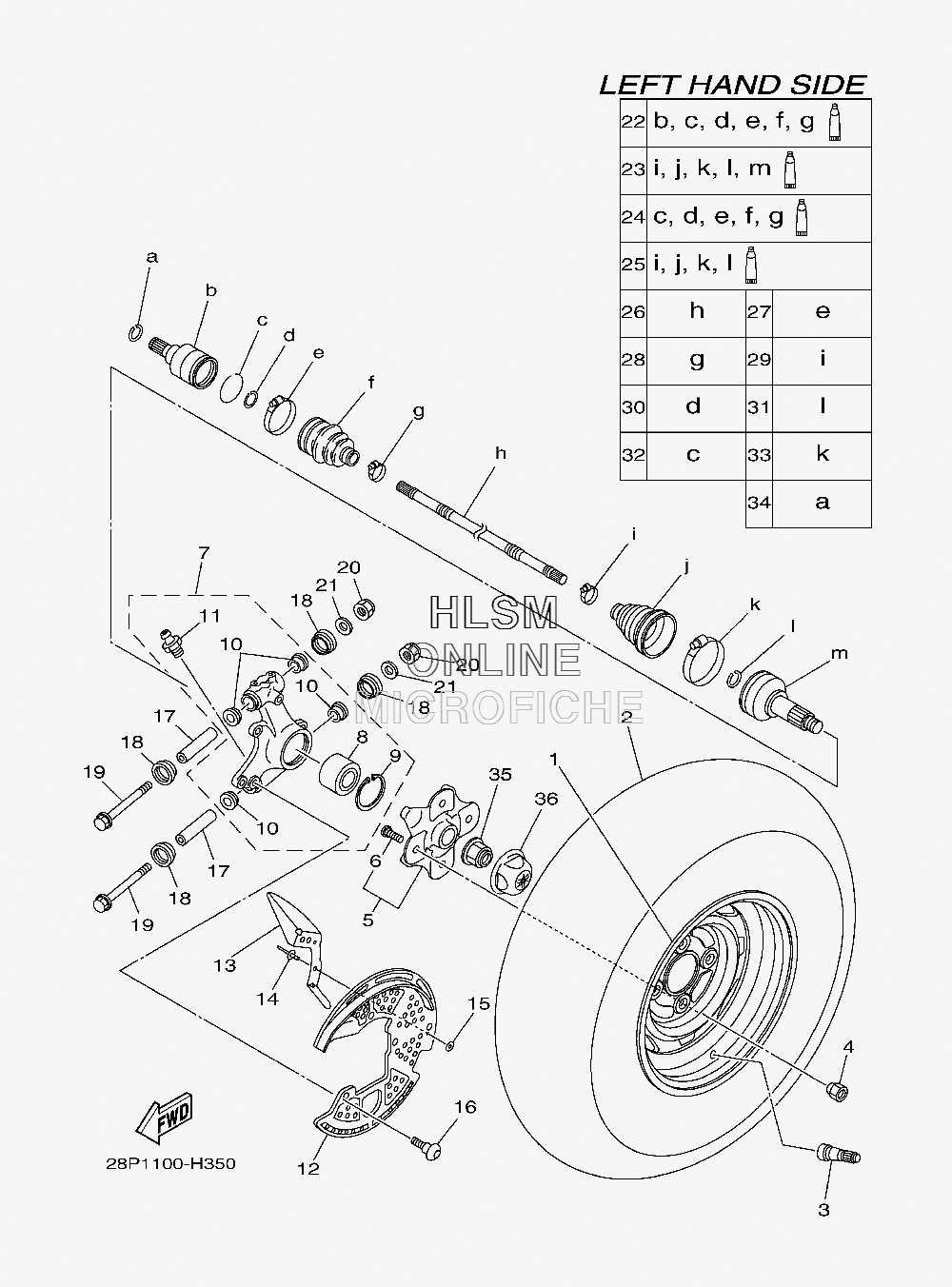

WHEEL - REAR LEFT SIDE W/ AXLE ASSY для Yamaha GRIZZLY 550 FI 4WD HUNTER - 2010 года выпуска`
-
№АртикулНазвание
-
15C0-25390-10-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-12012-00 TIRE (AT25X10-12 KT425T/L N)TIRE (AT25X10-12 KT425T/L N)
-
393900-00030-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
490179-10020-00 NUTNUT
-
53B4-25111-10-00 HUB, FRONTHUB, FRONT
-
690114-10014-00 BOLT, SERRATIONBOLT, SERRATION
-
728P-2530F-00-00 REAR KNUCKLE ASSYREAR KNUCKLE ASSY
-
893305-00602-00 BEARINGBEARING
-
999009-55500-00 CIRCLIPCIRCLIP
-
1090381-17067-00 BUSH, SOLIDBUSH, SOLID
-
1193700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
123B4-2514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
133B4-2539F-00-00 PLATE 1PLATE 1
-
1490267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
1590201-04027-00 WASHER, PLATEWASHER, PLATE
-
1690154-06014-00 SCREW, BINDINGSCREW, BINDING
-
175KM-23448-00-00 SPACERSPACER
-
182NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1990105-10185-00 BOLT, FLANGEBOLT, FLANGE
-
2090185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2190201-10035-00 WASHER, PLATEWASHER, PLATE
-
2228P-2530V-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
2328P-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
2428P-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
2528P-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
2628P-2518E-10-00 SHAFTSHAFT
-
273B4-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
283B4-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
2928P-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
303B4-2512J-00-00 SNAP RINGSNAP RING
-
313B4-2512H-00-00 CIRCLIPCIRCLIP
-
323B4-25182-00-00 CIRCLIPCIRCLIP
-
3328P-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
343B4-2536E-00-00 CLIP, SPRINGCLIP, SPRING
-
3590179-20016-00 NUTNUT
-
363B4-2512A-00-00 CAP, WHEELCAP, WHEEL
