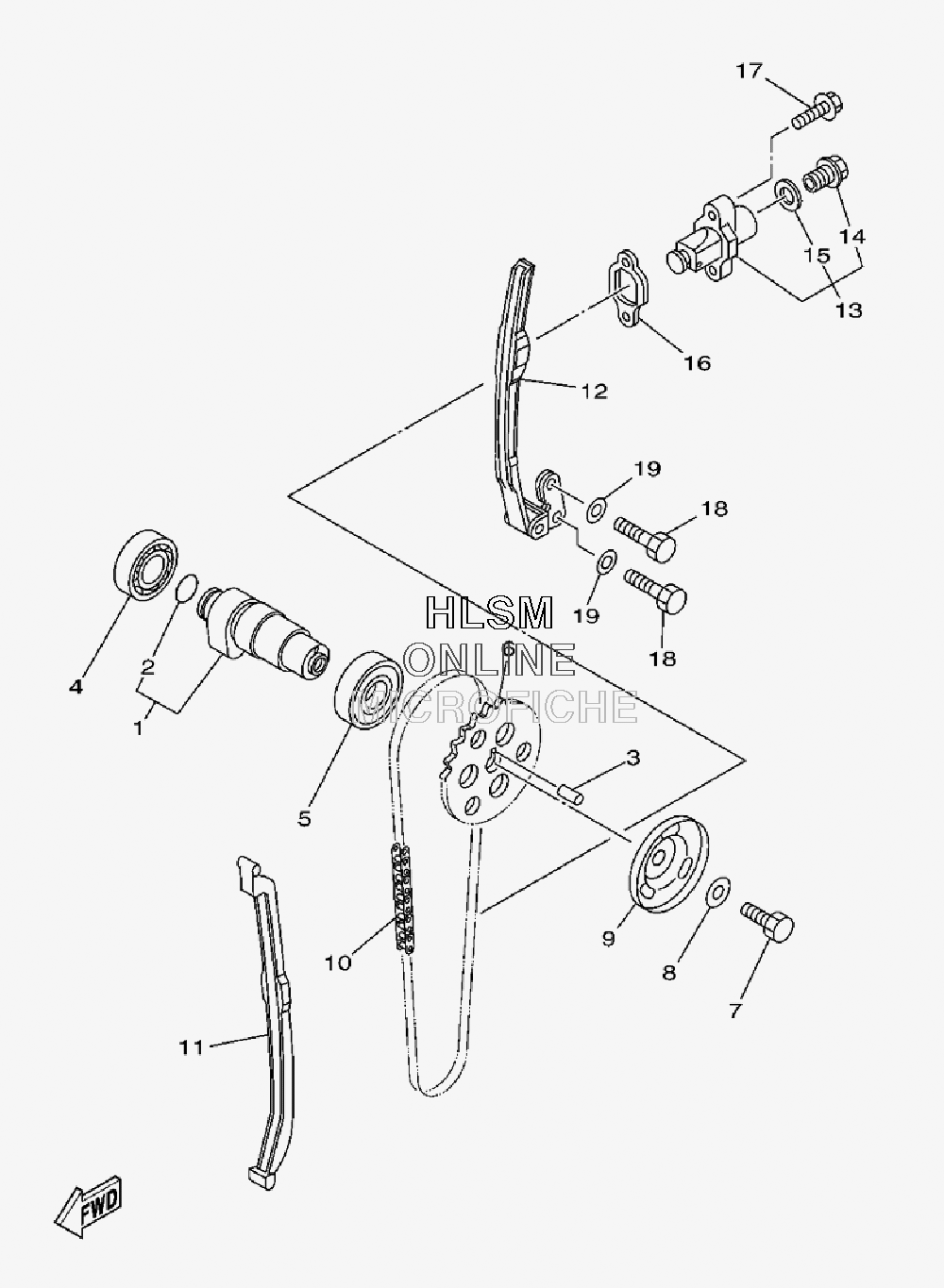

CAMSHAFT W/ CHAIN для Yamaha WOLVERINE 350 2WD - 2009 года выпуска`
-
№АртикулНазвание
-
15UH-12170-10-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
293210-17003-00 O-RINGO-RING
-
393604-10011-00 PIN, DOWELPIN, DOWEL
-
493306-00438-00 BEARINGBEARING
-
593306-00502-00 BEARINGBEARING
-
65UH-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
790101-10016-00 BOLTBOLT
-
890201-10591-00 WASHER, PLATEWASHER, PLATE
-
94KB-11145-00-00 PLATE, BREATHER 2PLATE, BREATHER 2
-
1094591-87110-00 CHAIN (92RIGHT HAND2005-110M)CHAIN (92RIGHT HAND2005-110M)
-
115UH-12231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
125UH-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
1331G-12210-01-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
1431G-12222-00-00 PLUGPLUG
-
1531G-12214-00-00 GASKETGASKET
-
163GD-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1795022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1897022-06016-00 BOLTBOLT
-
1992902-06600-00 WASHER, PLATEWASHER, PLATE
