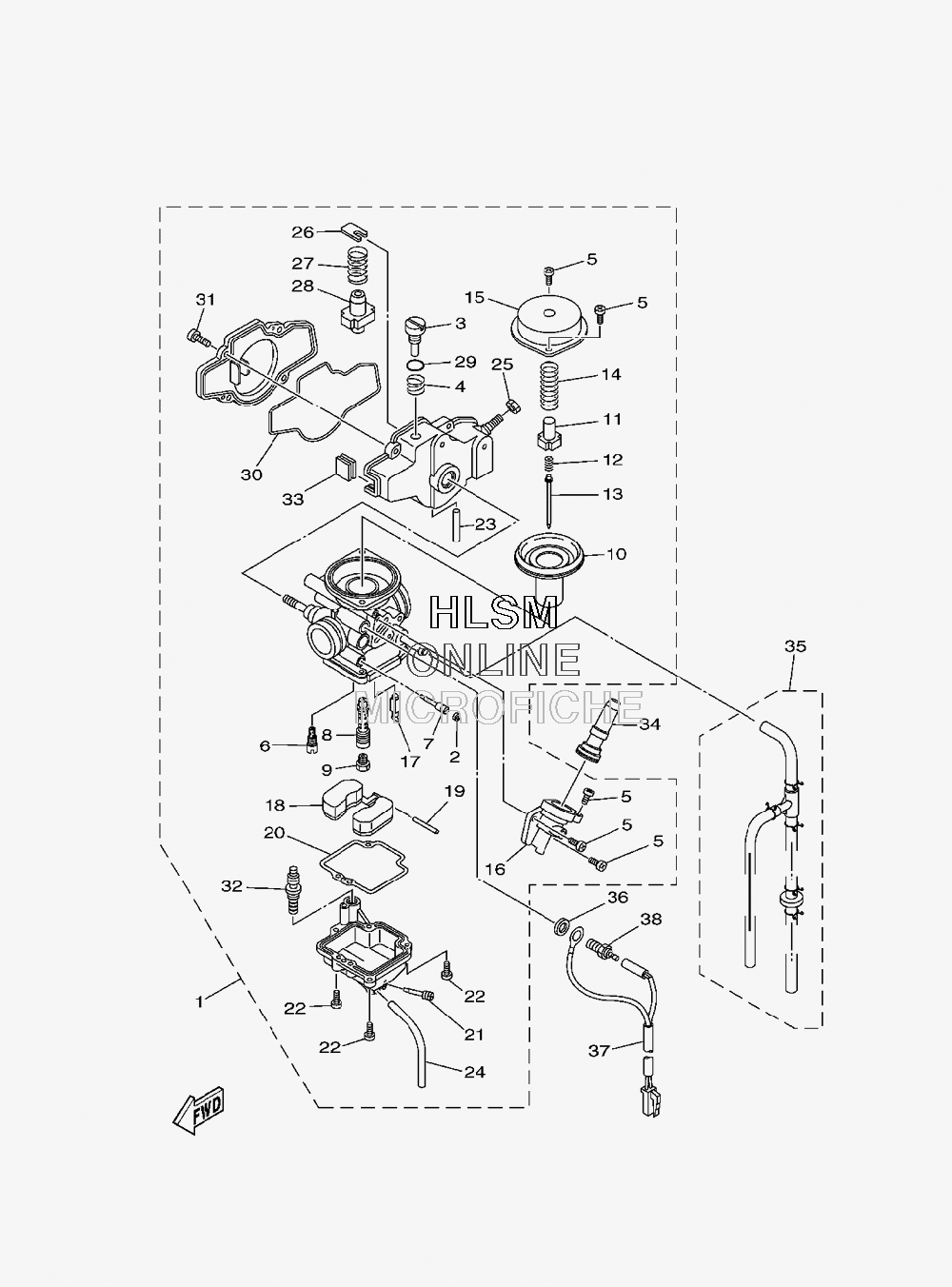

CARBURETOR для Yamaha RAPTOR 90 - 2009 года выпуска`
-
№АртикулНазвание
-
143D-E4301-00-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
243D-E4345-00-00 PLUG, MAIN NOZZLEPLUG, MAIN NOZZLE
-
343D-E4321-00-00 SCREW, THROTTLESCREW, THROTTLE
-
443D-E4333-00-00 SPRING, THROTTLE STOPSPRING, THROTTLE STOP
-
598502-04008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
643D-E4342-16-00 JET, PILOT (#32)JET, PILOT (#32)
-
743D-E4347-00-00 PILOT SCREW SETPILOT SCREW SET
-
843D-E4341-00-00 NOZZLE, MAINNOZZLE, MAIN
-
9288-E4343-50-00 JET, MAIN (#100)JET, MAIN (#100)
-
105WB-E434A-00-00 DIAPHRAGMDIAPHRAGM
-
115LB-E4936-00-00 SEAT, SPRINGSEAT, SPRING
-
125LB-E4275-00-00 SPRINGSPRING
-
1343D-E4336-00-00 NEEDLENEEDLE
-
145WB-E4286-00-00 SPRINGSPRING
-
1543D-E439D-00-00 CAP, MIXING CHAMBERCAP, MIXING CHAMBER
-
1643D-E4344-00-00 JET, STARTER (#0)JET, STARTER (#0)
-
1743D-E4392-00-00 VALVE, NEEDLEVALVE, NEEDLE
-
185WB-E4385-00-00 FLOATFLOAT
-
195LB-E4386-00-00 PIN, FLOATPIN, FLOAT
-
205WB-E4384-00-00 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
2143D-E4306-00-00 DRAIN SCREW ASSYDRAIN SCREW ASSY
-
2298502-04014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2343D-E443G-00-00 PIPE, DRAIN 2PIPE, DRAIN 2
-
244FP-E4349-00-00 PIPEPIPE
-
255AV-E4594-00-00 NUTNUT
-
2643D-E4346-00-00 PLATEPLATE
-
2743D-E4333-10-00 SPRING, THROTTLE STOPSPRING, THROTTLE STOP
-
2843D-E4321-10-00 ADJUSTER, THROTTLEADJUSTER, THROTTLE
-
2943D-E4397-10-00 O-RINGO-RING
-
3043D-E4398-00-00 GASKETGASKET
-
3198502-04010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3243D-E4304-00-00 ACCELERATOR PUMP COMP.ACCELERATOR PUMP COMP.
-
3343D-E432A-00-00 PLUGPLUG
-
3443D-E4307-00-00 STARTER ASSYSTARTER ASSY
-
3543D-E4310-00-00 TUBE BREATHER COMP.TUBE BREATHER COMP.
-
3690201-08016-00 WASHER, PLATEWASHER, PLATE
-
3743D-H331N-00-00 WIRE, LEADWIRE, LEAD
-
385FU-83790-20-00 HEATER ASSY (30W)HEATER ASSY (30W)
