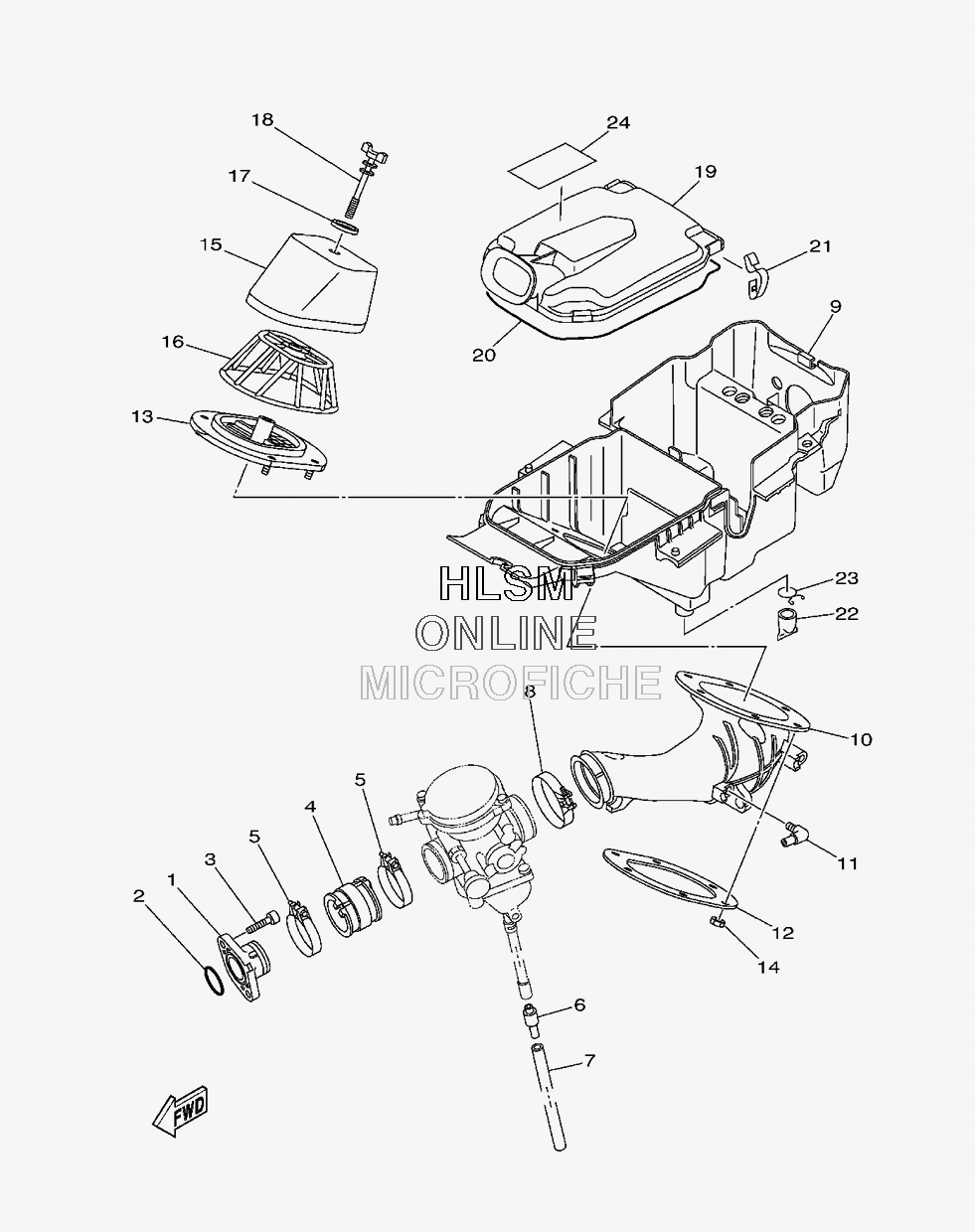

AIR CLEANER W/ INTAKE для Yamaha RAPTOR 250 - 2009 года выпуска`
-
№АртикулНазвание
-
14D3-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-35537-00 O-RINGO-RING
-
391312-06020-00 BOLTBOLT
-
44D3-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
590450-47002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
624W-14193-00-00 PIPEPIPE
-
791A20-07010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
890450-58003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
94D3-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
104D3-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1131A-14419-00-00 PIPEPIPE
-
122XJ-14477-00-00 PLATEPLATE
-
134D3-14459-00-00 HOLDER, GUIDEHOLDER, GUIDE
-
1495602-05100-00 NUT, UNUT, U
-
152XJ-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
162XJ-14458-00-00 GUIDEGUIDE
-
1790209-06096-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
-
1890122-06035-00 BOLT, WINGBOLT, WING
-
194D3-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
204D3-14452-00-00 SEALSEAL
-
215GH-14436-00-00 HOOKHOOK
-
2259V-14457-00-00 SEALSEAL
-
2390467-220A1-00 CLIPCLIP
-
244D3-2177C-10-00 PLATE, EPA OFFROAD ATV 1PLATE, EPA OFFROAD ATV 1
