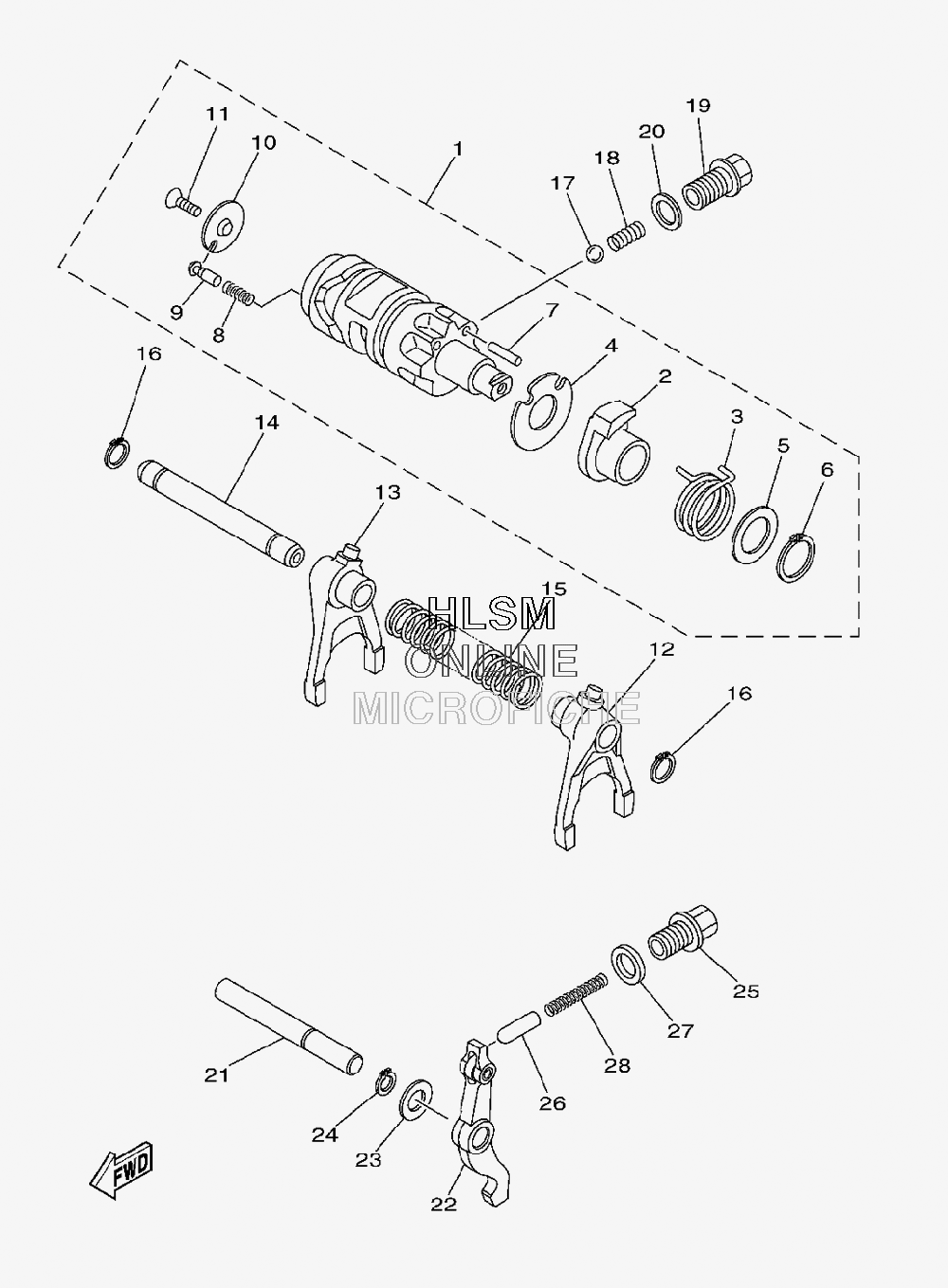

SHIFT CAM W/ FORK для Yamaha GRIZZLY 700 4X4 FI EPS HUNTER - 2009 года выпуска`
-
№АртикулНазвание
-
13B4-18540-20-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
25KM-18171-00-00 CAM, LEVERCAM, LEVER
-
390508-32132-00 SPRING, TORSIONSPRING, TORSION
-
43B4-18331-00-00 PLATE, SHIFT CAMPLATE, SHIFT CAM
-
590201-20792-00 WASHER, PLATEWASHER, PLATE
-
693410-20038-00 CIRCLIPCIRCLIP
-
793604-18100-00 PIN, DOWELPIN, DOWEL
-
890501-06022-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
95KM-18542-00-00 POINT, NEUTRALPOINT, NEUTRAL
-
104UN-18566-00-00 PLATE, SIDE 2PLATE, SIDE 2
-
1190149-05016-00 SCREWSCREW
-
123B4-18511-10-00 FORK, SHIFT 1FORK, SHIFT 1
-
133B4-18512-10-00 FORK, SHIFT 2FORK, SHIFT 2
-
143B4-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
1590501-140A2-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1699009-12400-00 CIRCLIPCIRCLIP
-
1793503-08007-00 BALLBALL
-
1890501-10353-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1990105-14003-00 BOLT, FLANGEBOLT, FLANGE
-
2090430-14194-00 GASKETGASKET
-
213B4-18318-00-00 SHAFT, SHIFTERSHAFT, SHIFTER
-
2228P-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
2390201-127J6-00 WASHER, PLATEWASHER, PLATE
-
2499009-12400-00 CIRCLIPCIRCLIP
-
2590109-14002-00 BOLTBOLT
-
261J7-18547-00-00 STOPPER, CAMSTOPPER, CAM
-
2790430-14043-00 GASKETGASKET
-
2890501-090A1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
