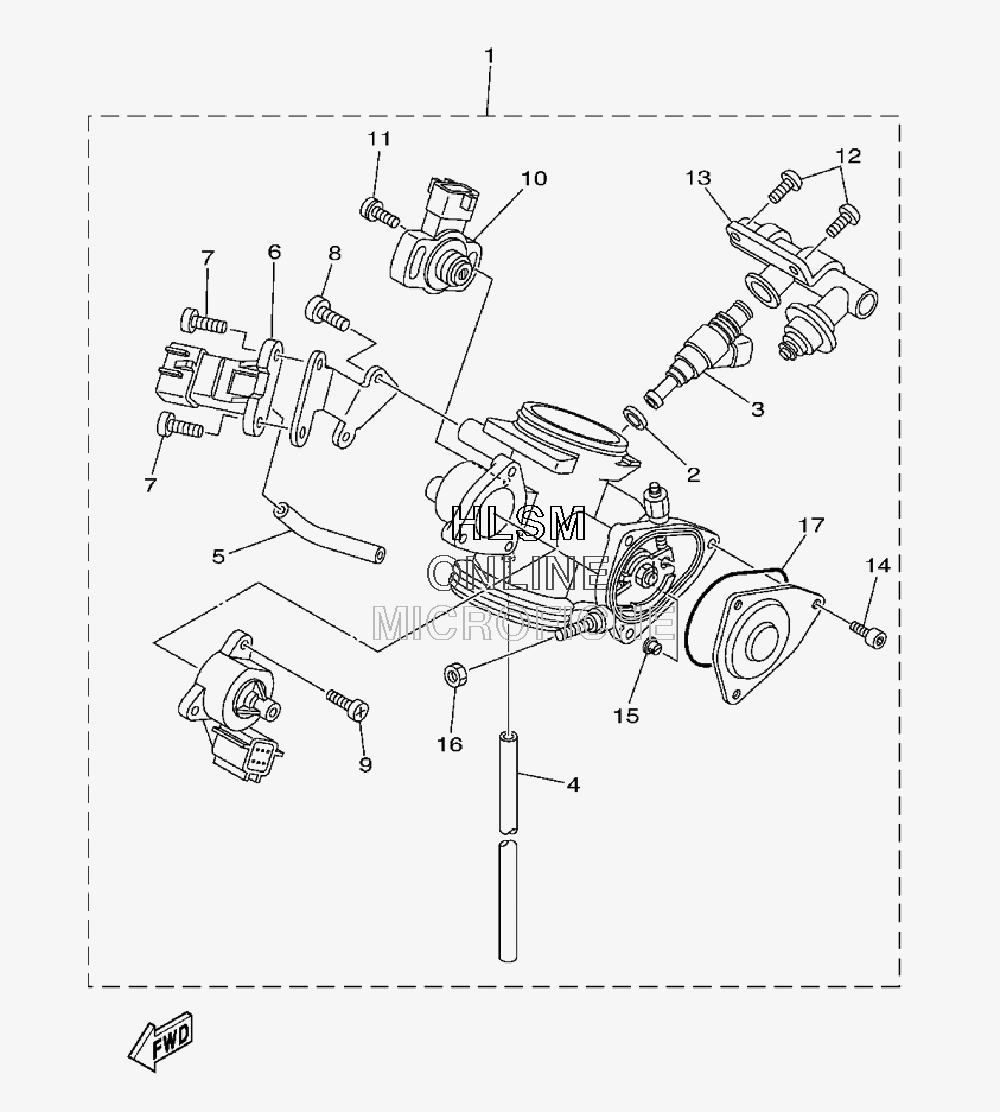

THROTTLE BODY ASSY. для Yamaha GRIZZLY 550 4X4 FI - 2009 года выпуска`
-
№АртикулНазвание
-
128P-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28FP-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
33B4-13761-00-00 INJECTORINJECTOR
-
428P-13543-00-00 HOSE, AIRHOSE, AIR
-
55JW-14348-00-00 PIPE 1PIPE 1
-
61C7-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
798507-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
898507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
91S4-14216-00-00 SCREWSCREW
-
103B4-85885-00-00 THROTTLE SENSOR ASSYTHROTTLE SENSOR ASSY
-
118CC-14216-10-00 SCREWSCREW
-
1298507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
133B4-13160-00-00 DELIVERY PIPE ASSY 1DELIVERY PIPE ASSY 1
-
1491312-04006-00 BOLTBOLT
-
151UY-14155-00-00 GUIDE, CABLEGUIDE, CABLE
-
161S3-14161-00-00 NUT, CABLE ADJUSTINGNUT, CABLE ADJUSTING
-
175LP-14147-00-00 O-RINGO-RING
