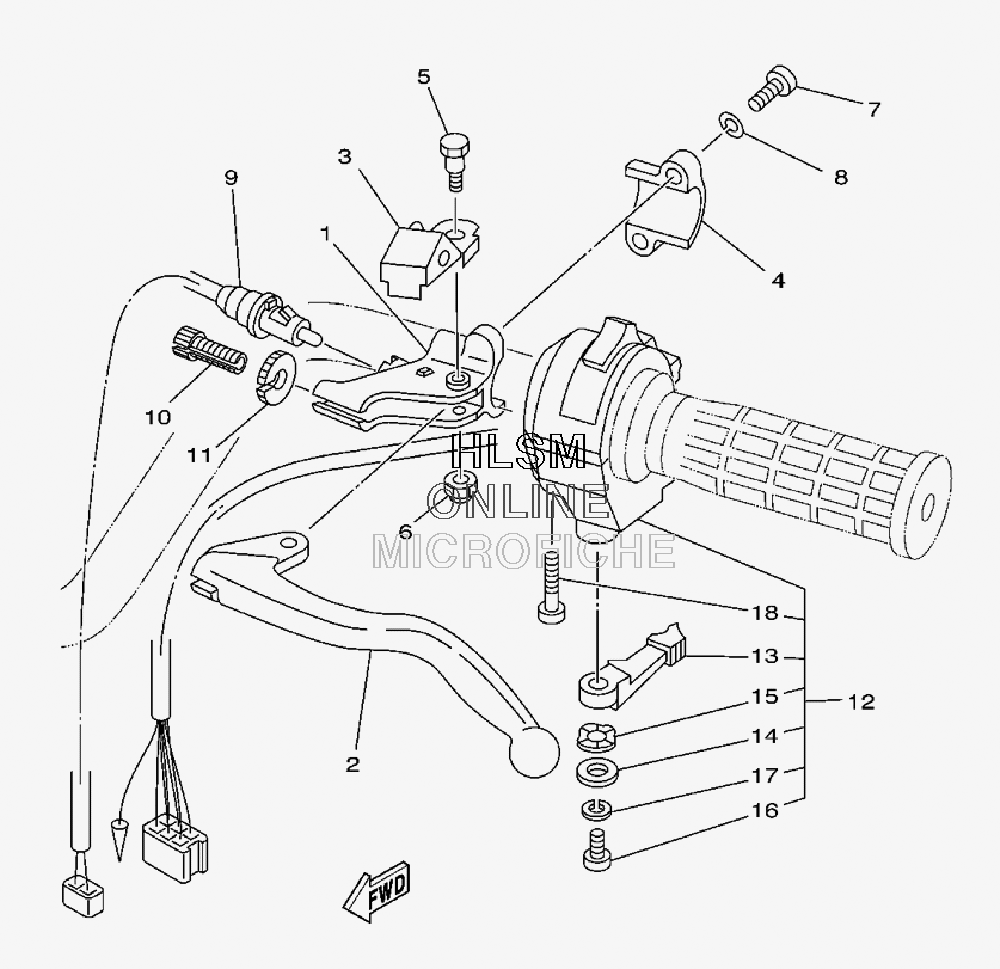

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha BIG BEAR 400 4X4 - 2009 года выпуска`
-
№АртикулНазвание
-
11YW-82911-02-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
22HT-83912-00-00 LEVER 1LEVER 1
-
31YW-83965-00-00 LEVER, LOCKLEVER, LOCK
-
42XJ-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
590109-06576-00 BOLTBOLT
-
695607-06100-00 NUT, UNUT, U
-
798507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
892907-06100-00 WASHER, SPRINGWASHER, SPRING
-
93FA-83980-03-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1090123-08046-00 BOLTBOLT
-
1190179-08148-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
125KM-83972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
135KM-83941-00-00 LEVER, STARTERLEVER, STARTER
-
141UY-83909-00-00 WASHER, SPECIALWASHER, SPECIAL
-
153L4-83943-00-00 WASHER, STARTERWASHER, STARTER
-
1698517-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1792907-05100-00 WASHER, SPRINGWASHER, SPRING
-
1898507-05030-00 SCREW, PAN HEADSCREW, PAN HEAD
