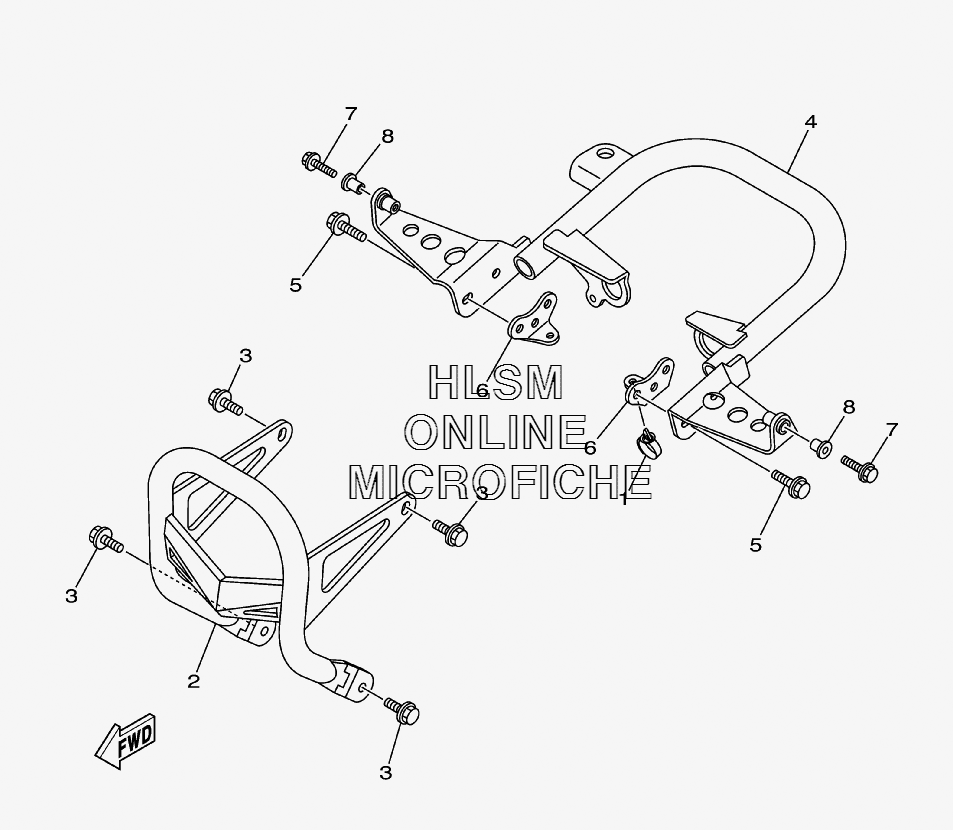

RACK AND BUMPER для Yamaha YFZ450X - 2008 года выпуска`
-
№АртикулНазвание
-
190464-20181-00 CLAMPCLAMP
-
25D3-2845N-00-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
395812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
45D3-2845R-00-00 BAR, CARRY REARBAR, CARRY REAR
-
595812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
65TG-28215-00-00 WASHER, SPECIALWASHER, SPECIAL
-
795802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
890387-06153-00 COLLARCOLLAR
