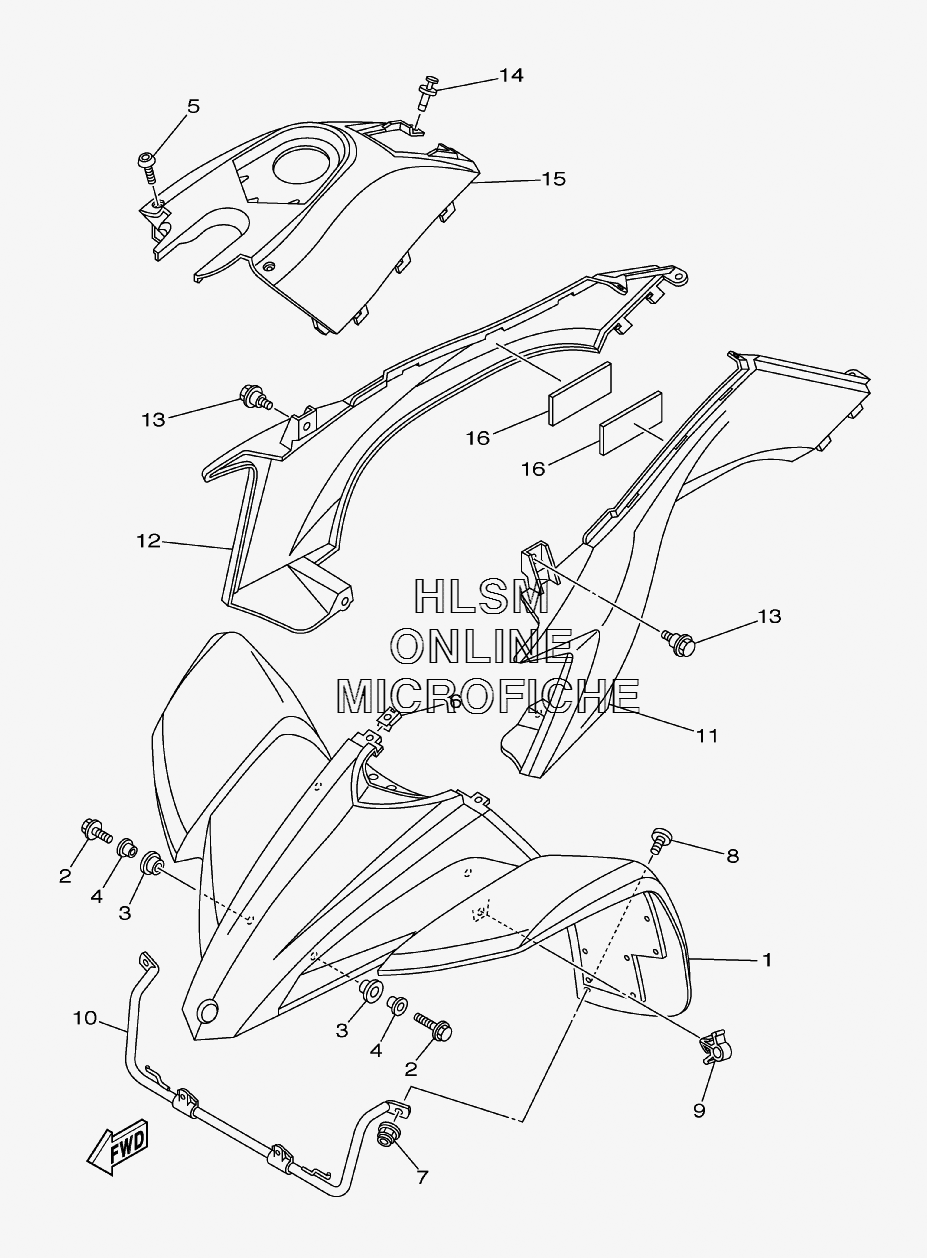

FENDER - FRONT для Yamaha YFZ450X - 2008 года выпуска`
-
№АртикулНазвание
-
15TG-W2151-00-00 FRONT FENDER COMP. FOR DPBSEFRONT FENDER COMP. FOR DPBSE
-
15TG-W2151-50-00 FRONT FENDER COMP. FOR PGDFRONT FENDER COMP. FOR PGD
-
295802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
390480-15006-00 GROMMETGROMMET
-
490387-061F9-00 COLLARCOLLAR
-
590110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690183-05008-00 NUT, SPRINGNUT, SPRING
-
795602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
990464-48174-00 CLAMPCLAMP
-
105TG-21513-10-00 STAY, FENDER 1STAY, FENDER 1
-
115TG-21711-00-00 COVER, SIDE 1 FOR DPBSECOVER, SIDE 1 FOR DPBSE
-
115TG-21711-50-00 COVER, SIDE 1 FOR PGDCOVER, SIDE 1 FOR PGD
-
125TG-21721-00-00 COVER, SIDE 2 FOR DPBSECOVER, SIDE 2 FOR DPBSE
-
125TG-21721-50-00 COVER, SIDE 2 FOR PGDCOVER, SIDE 2 FOR PGD
-
1390109-06172-00 BOLTBOLT
-
1490269-06002-00 RIVETRIVET
-
155TG-2171A-00-00 COVER, TOP FOR DPBSECOVER, TOP FOR DPBSE
-
155TG-2171A-50-00 COVER, TOP FOR PGDCOVER, TOP FOR PGD
-
165TG-21541-00-00 DAMPER 1DAMPER 1
