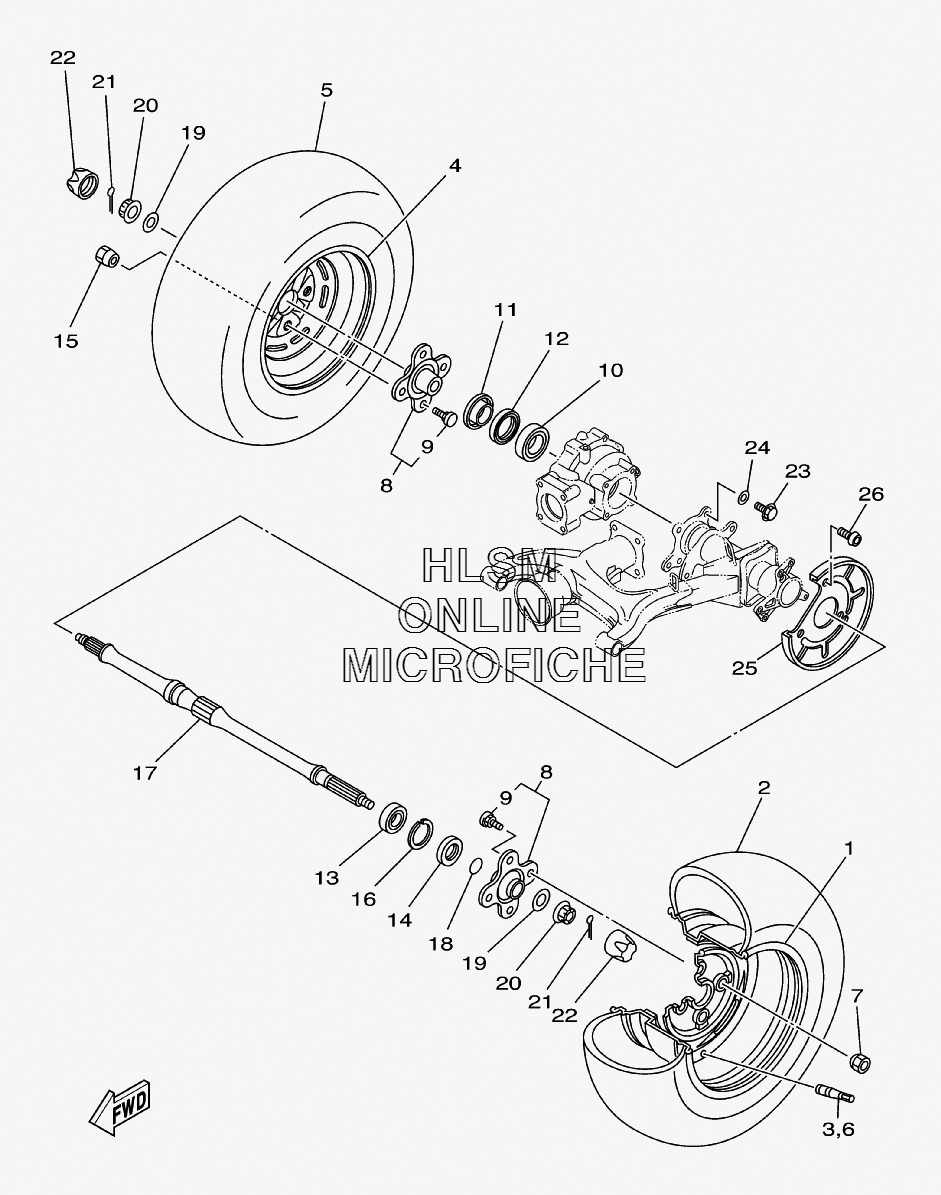

WHEEL - REAR W/ AXLE ASSY для Yamaha WOLVERINE 450 4WD - 2008 года выпуска`
-
№АртикулНазвание
-
13C2-F5390-10-00 REAR RIM (12 X 7.5)REAR RIM (12 X 7.5)
-
294110-12803-00 TIRE (AT23X10R12 M938 TL) CHENG SHINTIRE (AT23X10R12 M938 TL) CHENG SHIN
-
393900-00813-00 VALVE, RIMVALVE, RIM
-
43C2-F5390-10-00 REAR RIM (12 X 7.5)REAR RIM (12 X 7.5)
-
594110-12803-00 TIRE (AT23X10R12 M938 TL) CHENG SHINTIRE (AT23X10R12 M938 TL) CHENG SHIN
-
693900-00813-00 VALVE, RIMVALVE, RIM
-
790179-10020-00 NUTNUT
-
85ND-F5383-01-00 COLLAR, WHEELCOLLAR, WHEEL
-
990114-10014-00 ...BOLT, SERRATION...BOLT, SERRATION
-
1093306-008Y0-00 BEARINGBEARING
-
114SH-25367-01-00 COVER, HUB DUSTCOVER, HUB DUST
-
1293106-47040-00 OIL SEAL, DD-TYPEOIL SEAL, DD-TYPE
-
1393306-006Y2-00 BEARINGBEARING
-
1493106-38046-00 OIL SEALOIL SEAL
-
1590179-10020-00 NUTNUT
-
1699009-55500-00 CIRCLIPCIRCLIP
-
175ND-F5381-00-00 AXLE, WHEELAXLE, WHEEL
-
1893210-27666-00 O-RINGO-RING
-
1990201-16804-00 WASHER, PLATEWASHER, PLATE
-
2090171-16002-00 NUT, CASTLENUT, CASTLE
-
2191402-30030-00 PIN, COTTERPIN, COTTER
-
225GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
2390105-10751-00 BOLT, FLANGEBOLT, FLANGE
-
2490201-10035-00 WASHER, PLATEWASHER, PLATE
-
255ND-F5718-00-00 PROTECTOR, DISC BRAKEPROTECTOR, DISC BRAKE
-
2692012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
