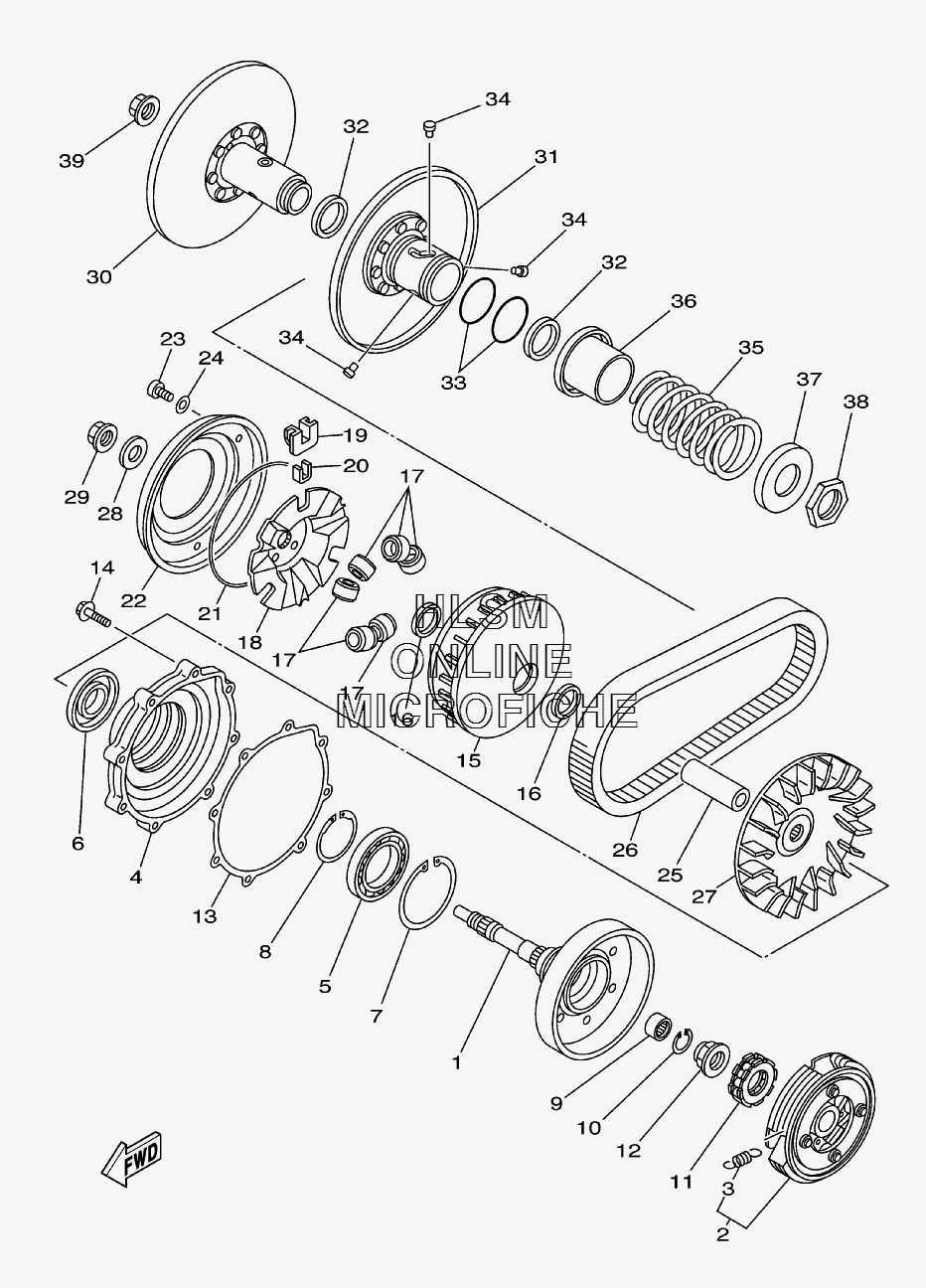

CLUTCH для Yamaha WOLVERINE 350 2WD - 2008 года выпуска`
-
№АртикулНазвание
-
15UH-16611-00-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
25UH-16620-00-00 CLUTCH CARRIER ASSYCLUTCH CARRIER ASSY
-
35UH-16626-00-00 ...SPRING, CLUTCH WEIGHT 1...SPRING, CLUTCH WEIGHT 1
-
45UH-15163-00-00 HOUSING, BEARING 1HOUSING, BEARING 1
-
593316-01003-00 BEARINGBEARING
-
693102-32483-00 OIL SEALOIL SEAL
-
799009-80500-00 CIRCLIPCIRCLIP
-
893410-46079-00 CIRCLIPCIRCLIP
-
993315-21813-00 BEARING, CYL.#15BEARING, CYL.#15
-
1093450-24062-00 CIRCLIPCIRCLIP
-
115GH-16664-00-00 BEARING, ONE WAYBEARING, ONE WAY
-
1290179-22005-00 NUTNUT
-
135UH-15463-00-00 GASKET, COVER PINION 2GASKET, COVER PINION 2
-
1495022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
155UH-17620-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
1693101-31167-00 OIL SEALOIL SEAL
-
174WV-17632-00-00 WEIGHTWEIGHT
-
185UH-17623-00-00 CAMCAM
-
194WV-17653-00-00 SLIDERSLIDER
-
204WV-17654-01-00 SPACER 1SPACER 1
-
2193211-52001-00 O-RINGO-RING
-
225UH-17639-00-00 STOPPERSTOPPER
-
2390157-04006-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2490201-047R9-00 WASHER, PLATEWASHER, PLATE
-
255UH-17645-00-00 COLLARCOLLAR
-
265UH-17641-01-00 V-BELTV-BELT
-
275UH-17611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
2890201-190T7-00 WASHER, PLATEWASHER, PLATE
-
2990179-16005-00 NUTNUT
-
305UH-17660-00-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
315UH-17670-00-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
3293104-41119-00 OIL SEALOIL SEAL
-
3393210-44545-00 O-RINGO-RING
-
344CW-17664-00-00 PIN, GUIDEPIN, GUIDE
-
3590501-580A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
365UH-17684-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
375UH-17644-00-00 SEAT, SPRINGSEAT, SPRING
-
3890170-36279-00 NUTNUT
-
3990179-16005-00 NUTNUT
