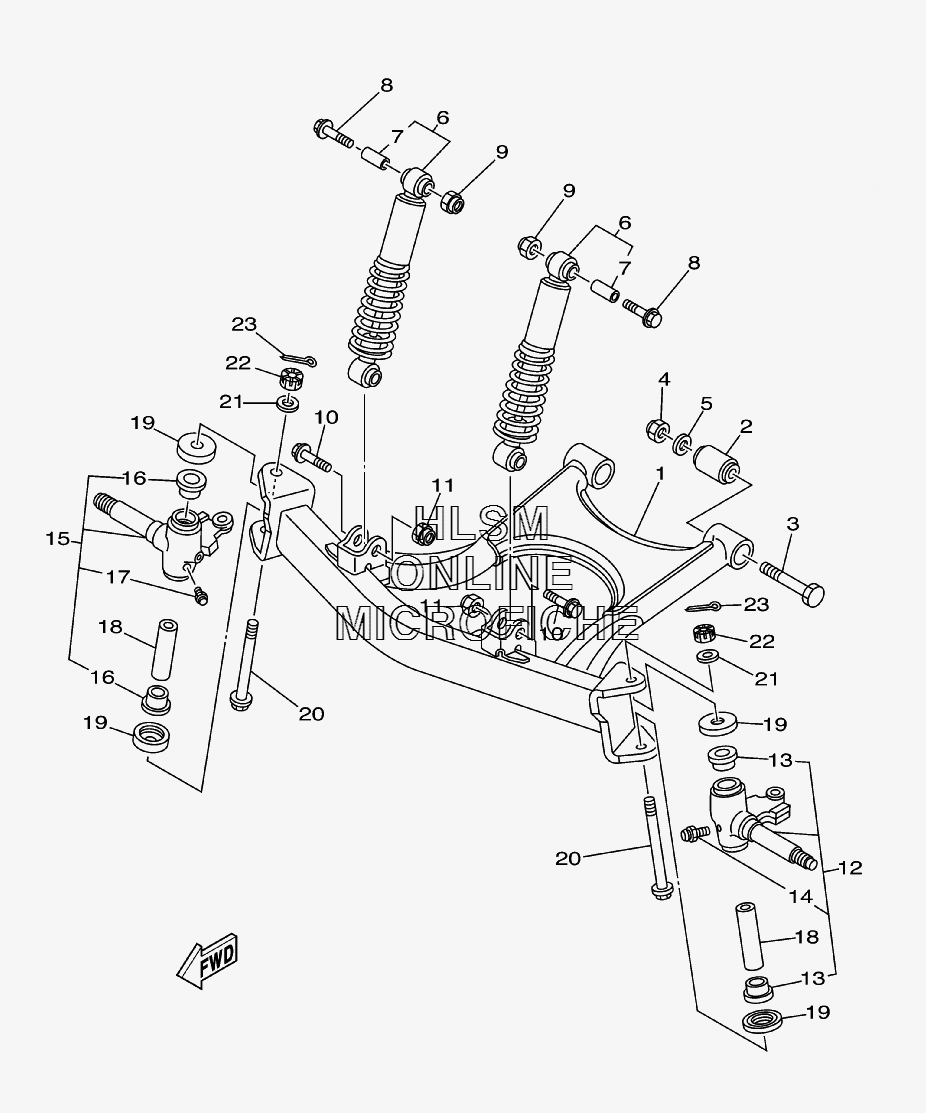

SUSPENSION - FRONT WHEEL для Yamaha RAPTOR 80 - 2008 года выпуска`
-
№АртикулНазвание
-
13GB-23570-00-33 FRONT LOWER ARM COMP. (BLACK)FRONT LOWER ARM COMP. (BLACK)
-
2307-22123-00-00 BUSH 1BUSH 1
-
390101-12033-00 BOLTBOLT
-
490185-12010-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590201-12050-00 WASHER, PLATEWASHER, PLATE
-
62HX-23350-00-36 SHOCK ABSORBER ASSY (WHITE FOR DPBSE)SHOCK ABSORBER ASSY (WHITE FOR DPBSE)
-
62HX-23350-00-35 SHOCK ABSORBER ASSY (SILVER FOR PGD)SHOCK ABSORBER ASSY (SILVER FOR PGD)
-
72HX-2331U-00-00 ...COLLAR, DISTANCE...COLLAR, DISTANCE
-
890105-10262-00 BOLT, FLANGEBOLT, FLANGE
-
990185-10022-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090105-12062-00 BOLT, FLANGEBOLT, FLANGE
-
1190185-12010-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
123GB-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1390381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
1493700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
153GB-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
1690381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
1793700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
183GB-23448-00-00 SPACERSPACER
-
192NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
2090105-10274-00 BOLT, FLANGEBOLT, FLANGE
-
2190201-10057-00 WASHER, PLATEWASHER, PLATE
-
2290171-10003-00 NUT, CASTLENUT, CASTLE
-
2391401-20020-00 PIN, COTTERPIN, COTTER
