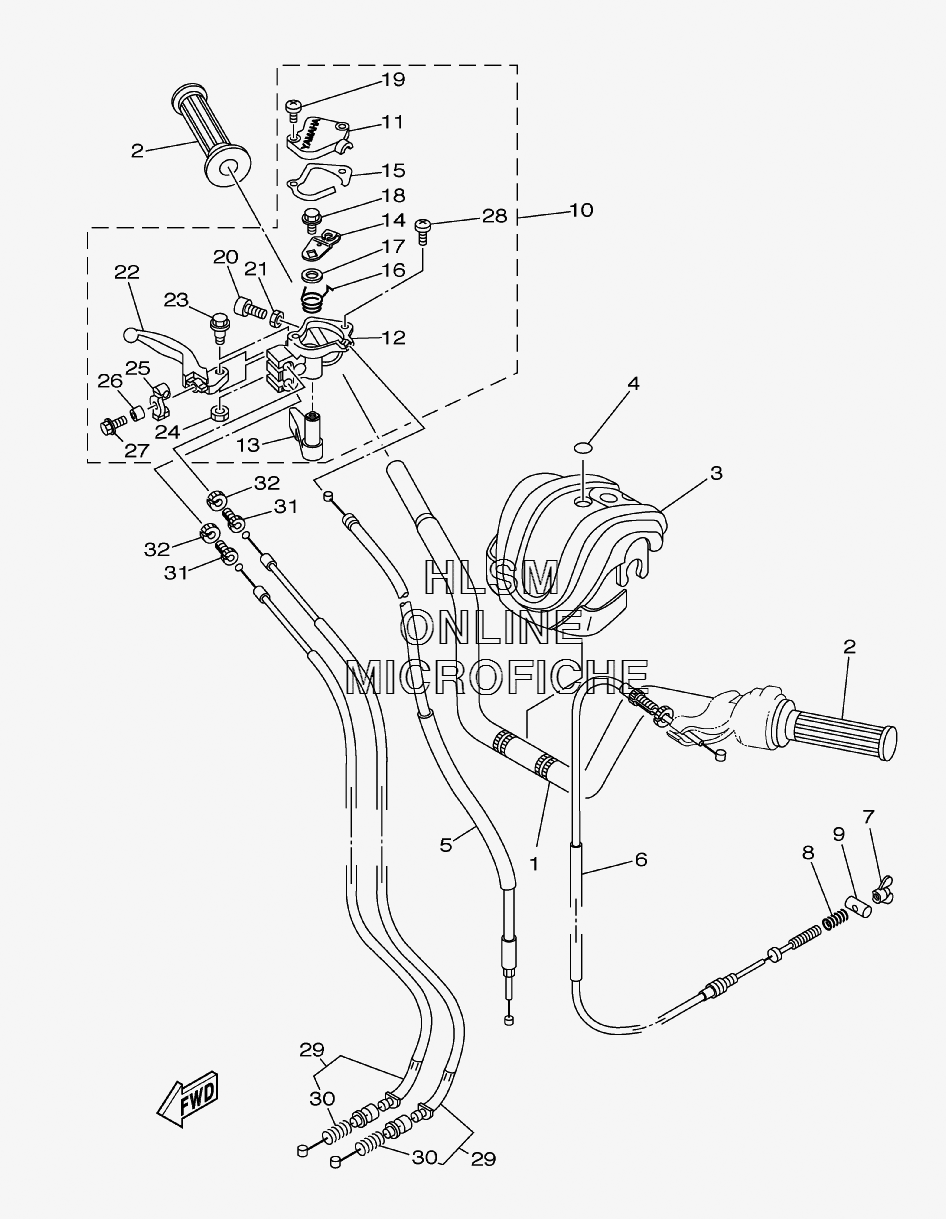

HANDLEBAR W/ CABLES для Yamaha RAPTOR 50 - 2008 года выпуска`
-
№АртикулНазвание
-
15YF-26111-00-00 HANDLEBARHANDLEBAR
-
24X4-26241-00-00 GRIPGRIP
-
35TH-26124-00-00 PROTECTOR, HANDLEBAR FOR DPBSEPROTECTOR, HANDLEBAR FOR DPBSE
-
35TH-26124-10-00 PROTECTOR, HANDLEBAR FOR PGDPROTECTOR, HANDLEBAR FOR PGD
-
45GT-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
55YF-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
63GB-26341-01-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
790175-06013-00 NUT, WINGNUT, WING
-
890501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
990249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
105YF-26250-10-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
113GB-2628F-00-00 ...CAP, GEAR...CAP, GEAR
-
123GB-2625E-01-00 ...BODY, THROTTLE...BODY, THROTTLE
-
133GB-2625G-00-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
145YF-2625H-00-00 ...ARM, THROTTLE...ARM, THROTTLE
-
153GB-2628G-02-00 ...GASKET...GASKET
-
1690508-10775-00 ...SPRING, TORSION...SPRING, TORSION
-
1790201-145M4-00 ...WASHER, PLATE...WASHER, PLATE
-
1895802-08012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1998502-04016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2098502-05016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2195302-05700-00 ...NUT...NUT
-
225YF-83922-00-00 ...LEVER 2...LEVER 2
-
2390109-06243-00 ...BOLT...BOLT
-
2495602-06100-00 ...NUT, U...NUT, U
-
253GB-26347-00-00 ...JOINT, CABLE...JOINT, CABLE
-
2690387-066V8-00 ...COLLAR...COLLAR
-
2795802-06016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2898502-06020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
293GB-26361-03-00 CABLE, BRAKECABLE, BRAKE
-
3090501-08511-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
3190123-08106-00 BOLTBOLT
-
3290179-08030-00 NUTNUT
