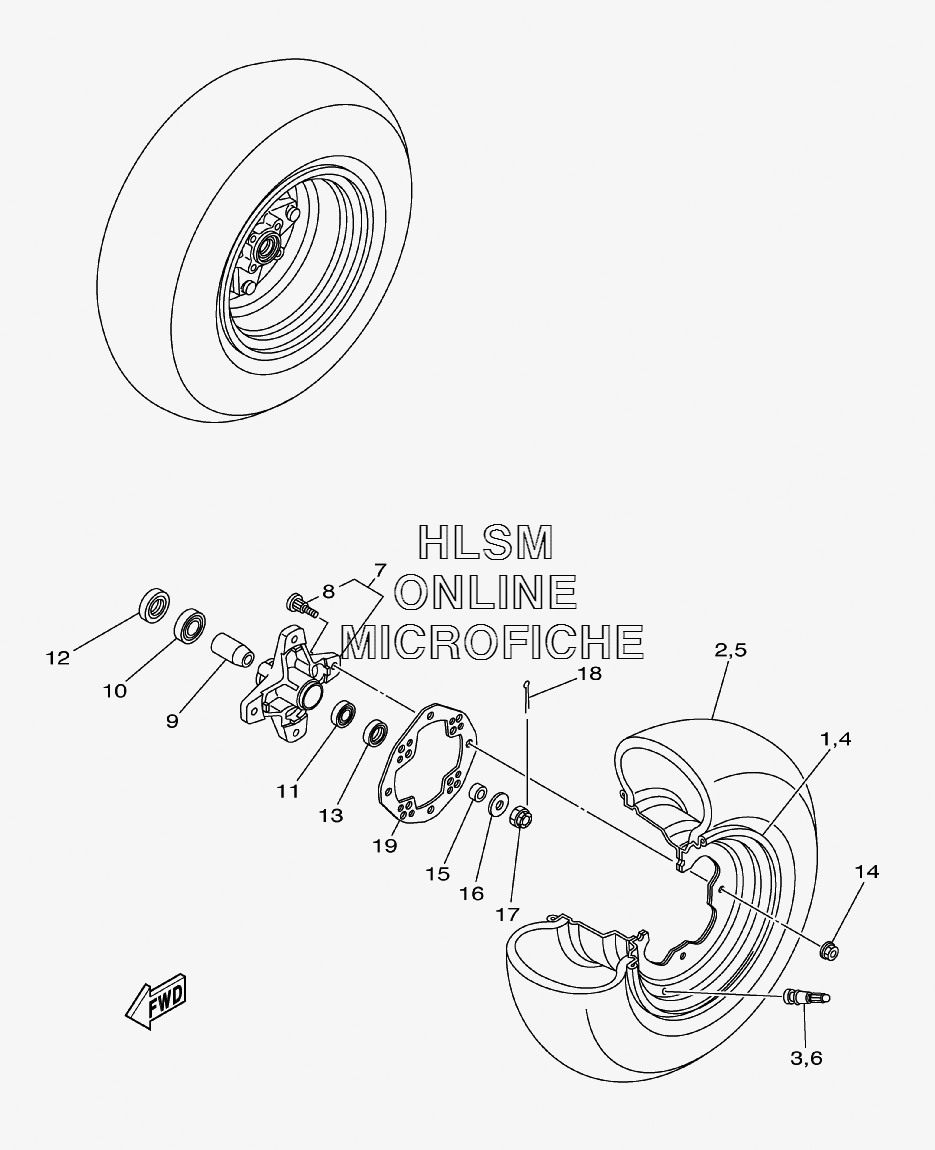

WHEEL - FRONT W/ AXLE ASSY для Yamaha RAPTOR 250 - 2008 года выпуска`
-
№АртикулНазвание
-
15LP-25180-20-00 WHEEL COMP.WHEEL COMP.
-
294107-10024-00 TIRE (AT20X7-10** KT201 T/L N) DUNLOPTIRE (AT20X7-10** KT201 T/L N) DUNLOP
-
393900-00022-00 VALVE, RIMVALVE, RIM
-
45LP-25180-20-00 WHEEL COMP.WHEEL COMP.
-
594107-10024-00 TIRE (AT20X7-10** KT201 T/L N) DUNLOPTIRE (AT20X7-10** KT201 T/L N) DUNLOP
-
693900-00022-00 VALVE, RIMVALVE, RIM
-
73GD-25111-20-00 HUB, FRONTHUB, FRONT
-
890114-10006-00 ...BOLT, SERRATION...BOLT, SERRATION
-
91UY-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
1093306-00446-00 BEARINGBEARING
-
1193306-20231-00 BEARINGBEARING
-
1293105-26026-00 OIL SEAL, SDD-TYPEOIL SEAL, SDD-TYPE
-
1393102-22216-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1495702-10500-00 NUT, WITH WASHERNUT, WITH WASHER
-
1590387-150R1-00 COLLARCOLLAR
-
1690201-14586-00 WASHER, PLATEWASHER, PLATE
-
1790171-14002-00 NUT, CASTLENUT, CASTLE
-
1891401-30025-00 PIN, COTTERPIN, COTTER
-
191S3-25127-00-00 COVER, PLATECOVER, PLATE
