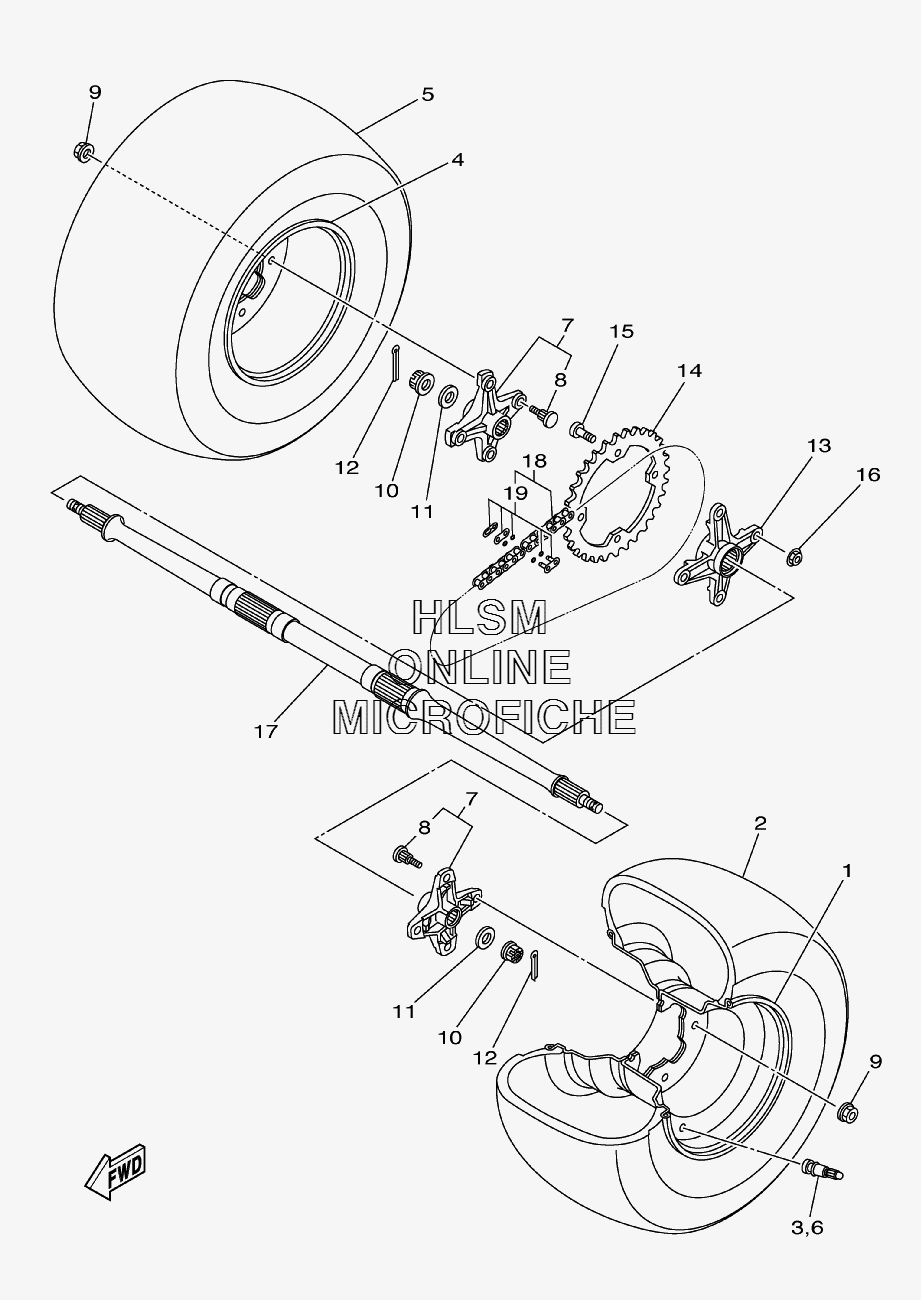

WHEEL - REAR W/ AXLE ASSY для Yamaha RAPTOR 250 SPECIAL EDITION II - 2008 года выпуска`
-
№АртикулНазвание
-
14D3-25390-00-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-09024-00 TIRE (AT19X10-9** KT205 T/L N) DUNLOPTIRE (AT19X10-9** KT205 T/L N) DUNLOP
-
393900-00022-00 VALVE, RIMVALVE, RIM
-
44D3-25390-00-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
594110-09024-00 TIRE (AT19X10-9** KT205 T/L N) DUNLOPTIRE (AT19X10-9** KT205 T/L N) DUNLOP
-
693900-00022-00 VALVE, RIMVALVE, RIM
-
71S3-25383-20-00 COLLAR, WHEELCOLLAR, WHEEL
-
890114-10013-00 ...BOLT, SERRATION...BOLT, SERRATION
-
995702-10500-00 NUT, FLANGENUT, FLANGE
-
1090171-14004-00 NUT, CASTLENUT, CASTLE
-
1190201-14021-00 WASHER, PLATEWASHER, PLATE
-
1291401-30030-00 PIN, COTTERPIN, COTTER
-
135YT-25386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
145TG-25438-10-00 SPROCKET, DRIVEN (38T)SPROCKET, DRIVEN (38T)
-
1590109-10010-00 BOLTBOLT
-
1695602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
174D3-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
1894581-87092-00 CHAIN (DID520V)CHAIN (DID520V)
-
1994681-87011-00 ...JOINT, CHAIN (DID520V FJ)...JOINT, CHAIN (DID520V FJ)
