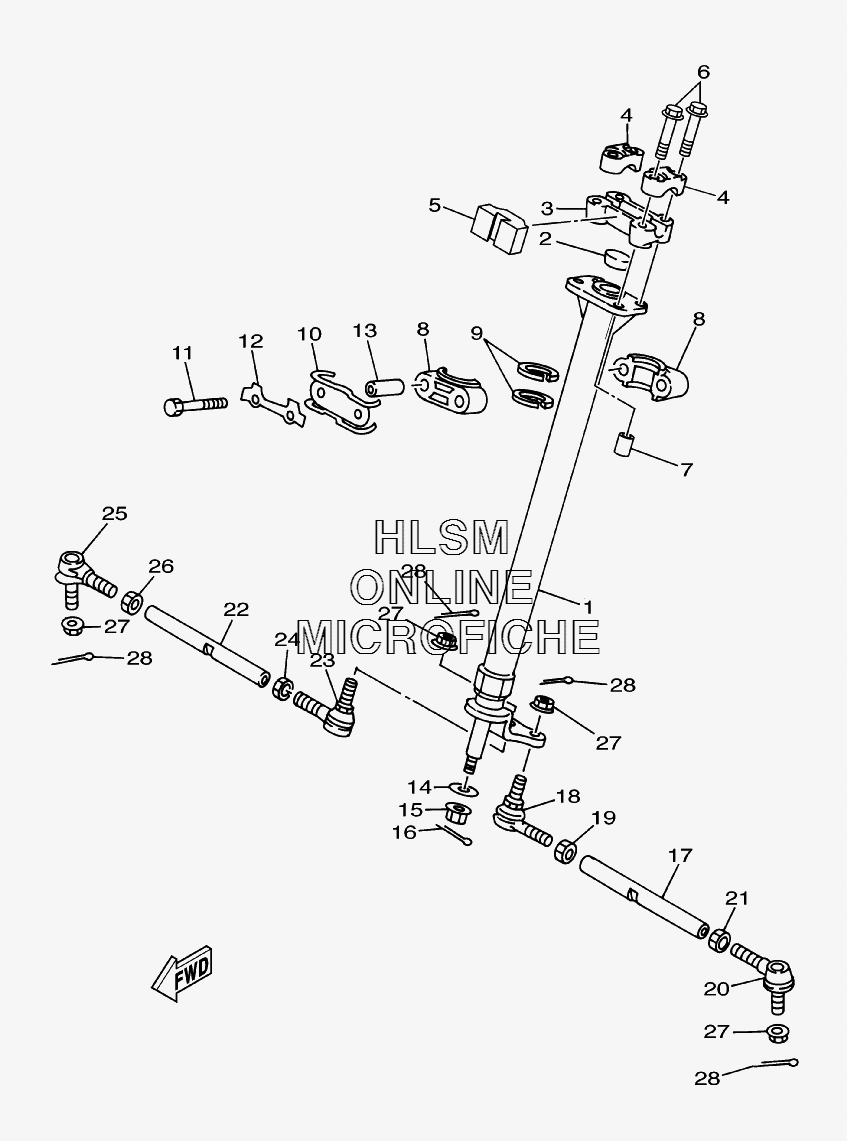

STEERING для Yamaha GRIZZLY 80 - 2008 года выпуска`
-
№АртикулНазвание
-
14EM-23813-20-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
290336-28053-00 PLUG, TAPERPLUG, TAPER
-
38G5-23814-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
48K1-23814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
52D3-23858-00-00 SPACERSPACER
-
695822-08055-00 BOLT, FLANGEBOLT, FLANGE
-
790445-11418-00 HOSE (L18)HOSE (L18)
-
81UY-23812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
993112-31011-00 OIL SEALOIL SEAL
-
103GB-23868-00-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
1197022-08060-00 BOLTBOLT
-
121UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
1390387-090R0-00 COLLARCOLLAR
-
1490201-10036-00 WASHER, PLATEWASHER, PLATE
-
1590185-10019-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1691401-20020-00 PIN, COTTERPIN, COTTER
-
173GB-23831-00-00 ROD, TIEROD, TIE
-
1855X-23841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
1995302-10700-00 NUTNUT
-
2052H-23845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2190170-10010-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
223GB-23831-00-00 ROD, TIEROD, TIE
-
2355X-23841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
2495302-10700-00 NUTNUT
-
2552H-23845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2690170-10010-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
2790185-10019-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2891401-20020-00 PIN, COTTERPIN, COTTER
