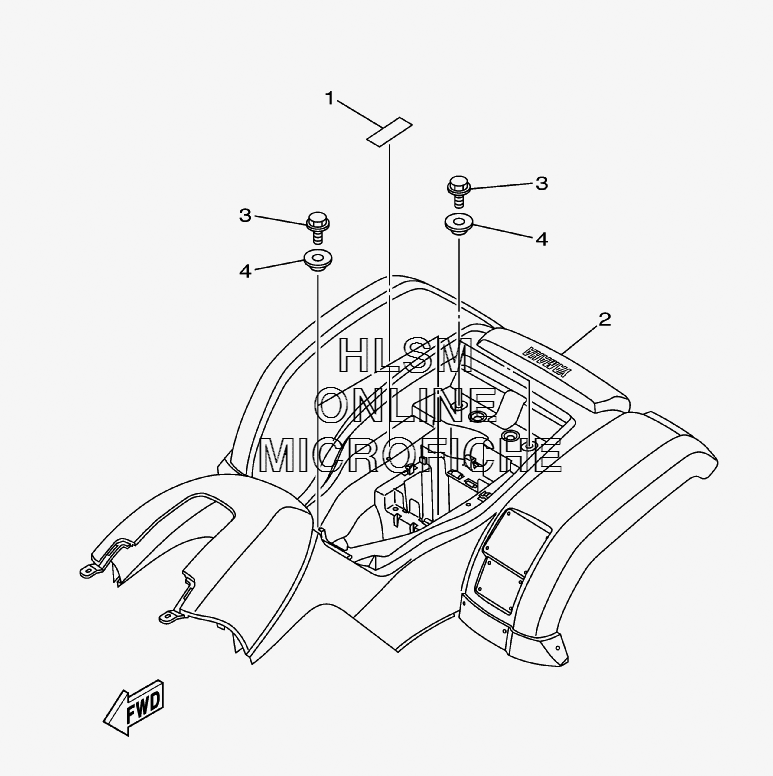

FENDER - REAR для Yamaha GRIZZLY 80 - 2008 года выпуска`
-
№АртикулНазвание
-
15TH-2177C-20-00 PLATE, EPA OFFROAD ATV 1PLATE, EPA OFFROAD ATV 1
-
22D3-W2161-00-00 REAR FENDER COMP. FOR PDGREAR FENDER COMP. FOR PDG
-
22D3-W2161-10-00 REAR FENDER COMP. FOR DPBSNREAR FENDER COMP. FOR DPBSN
-
390119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490387-06153-00 COLLARCOLLAR
Все узлы модели:
- AIR CLEANER W/ INTAKE
- CAMSHAFT W/ CHAIN
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- DECALS
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- ELECTRICAL
- EXHAUST
- FENDER - FRONT
- • FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- MIDDLE DRIVE GEAR
- MODEL INFO - MANUALS
- OIL PUMP
- RACK AND BUMPER
- REFLECTOR ASSY
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TRANSMISSION
- VALVE ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
