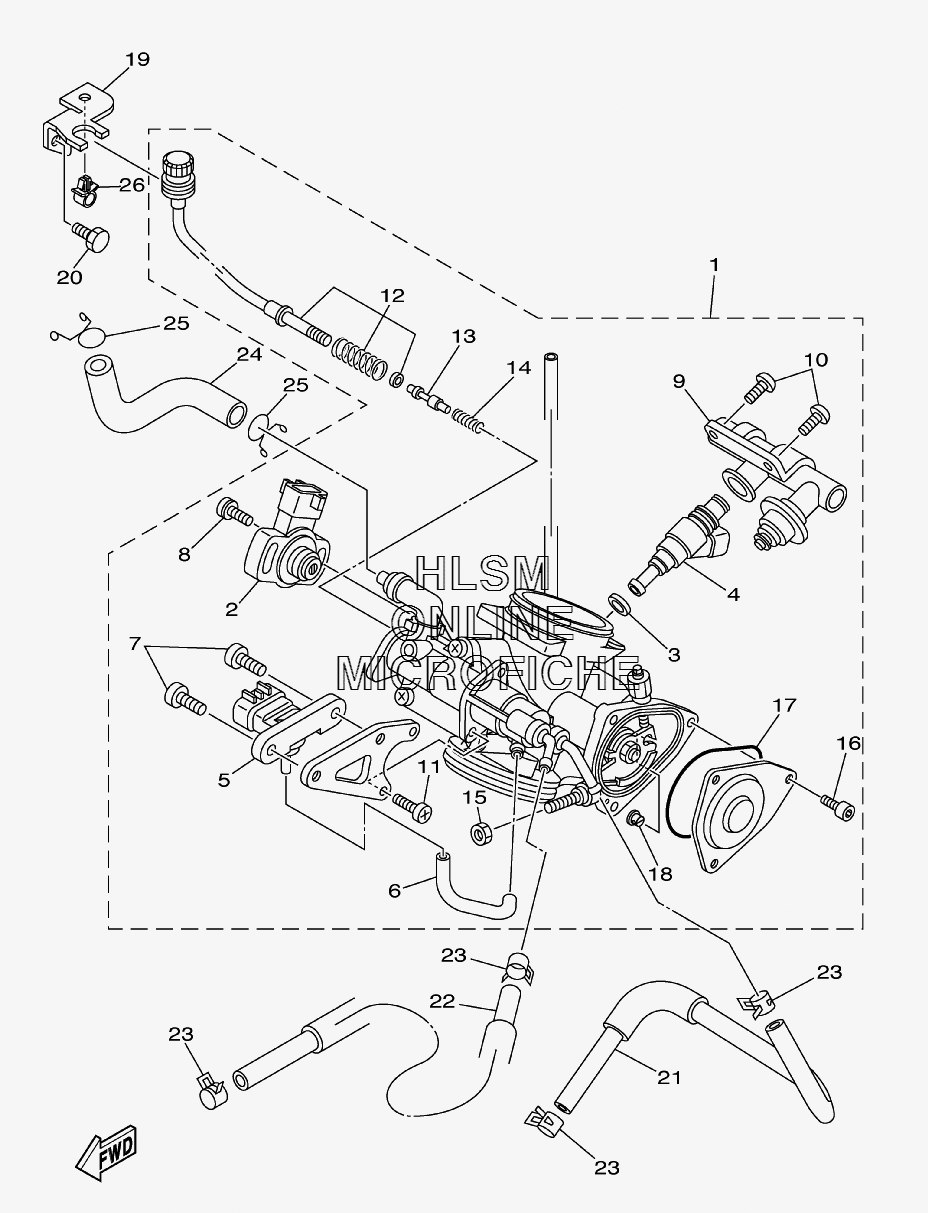

THROTTLE BODY ASSY. для Yamaha GRIZZLY 700 - 2008 года выпуска`
-
№АртикулНазвание
-
13B4-13750-10-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
25FL-85885-02-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
38FP-13556-00-00 ...GASKET, MANIFOLD...GASKET, MANIFOLD
-
43B4-13761-00-00 ...INJECTOR ASSY...INJECTOR ASSY
-
51C7-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
65JW-14348-00-00 ...PIPE 1...PIPE 1
-
798507-06010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
88CC-14216-10-00 ...SCREW...SCREW
-
93B4-13160-00-00 ...DELIVERY PIPE ASSY 1...DELIVERY PIPE ASSY 1
-
1098507-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1198507-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
123B4-14503-00-00 ...ADJUST SCREW SET...ADJUST SCREW SET
-
131S3-13493-00-00 ...PLUNGER...PLUNGER
-
144BH-14134-00-00 ...SPRING, AIR ADJUSTING...SPRING, AIR ADJUSTING
-
151S3-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
1691312-04006-00 ...BOLT...BOLT
-
175LP-14147-00-00 ...O-RING...O-RING
-
181UY-14155-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
193B4-14413-10-00 STAYSTAY
-
2097002-06012-00 BOLTBOLT
-
213B4-1243A-00-00 HOSE 1HOSE 1
-
2290445-12006-00 HOSE (L630)HOSE (L630)
-
2390467-110A2-00 CLIPCLIP
-
243B4-13545-00-00 HOSE 1HOSE 1
-
2590467-140A4-00 CLIPCLIP
-
2690464-06007-00 CLAMPCLAMP
