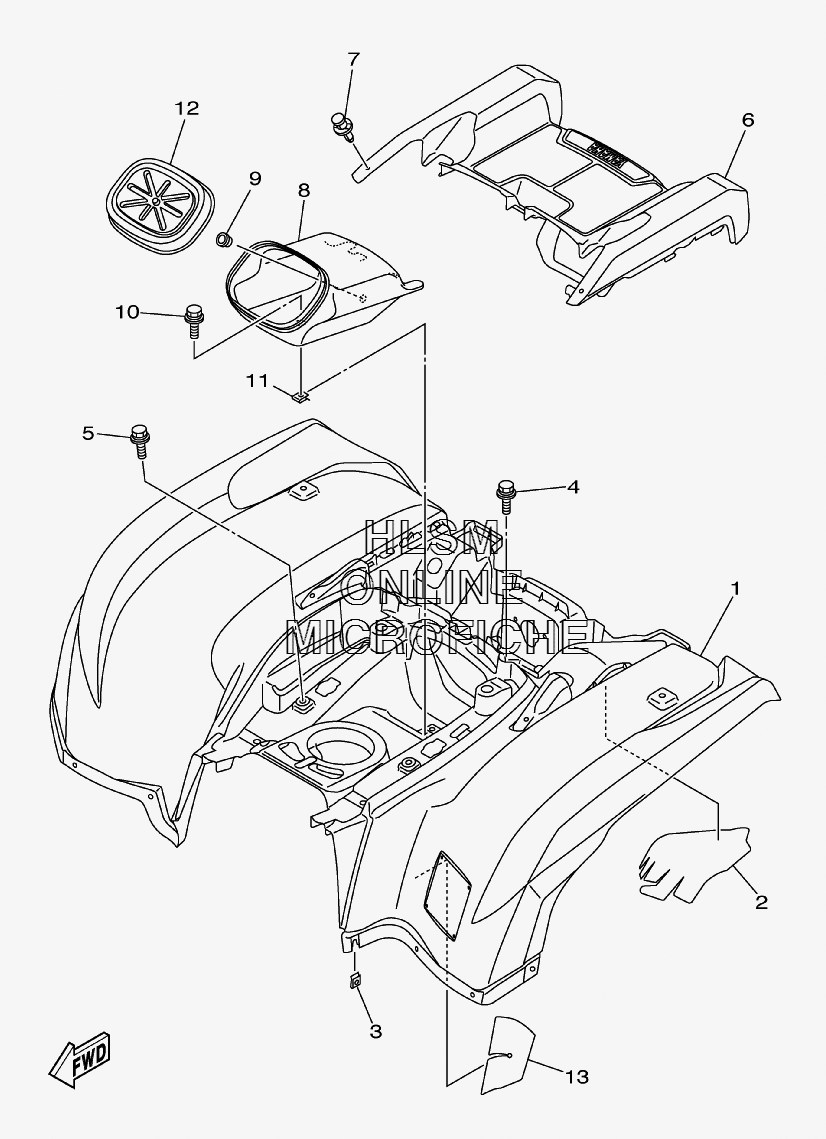

FENDER - REAR для Yamaha GRIZZLY 700 EPS HUNTER - 2008 года выпуска`
-
№АртикулНазвание
-
13B4-W2161-D0-00 REAR FENDER COMP.REAR FENDER COMP.
-
23B4-21652-00-00 PROTECTORPROTECTOR
-
390183-06053-00 NUT, SPRINGNUT, SPRING
-
490119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
63B4-21651-00-00 COVER, REAR FENDERCOVER, REAR FENDER
-
790269-07010-00 RIVETRIVET
-
83B4-2160E-00-00 BOXBOX
-
990338-09130-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
1090119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1190183-06053-00 NUT, SPRINGNUT, SPRING
-
123B4-2160F-00-00 LIDLID
-
133B4-21669-00-00 SEALSEAL
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- CYLINDER HEAD
- DECALS
- DIFFERENTIAL - FRONT
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- ELECTRICAL
- EMBLEMS
- EXHAUST
- FENDER - FRONT
- • FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HEADLIGHT
- INSTRUMENT PANEL
- MIDDLE DRIVE GEAR
- MODEL INFO - MANUALS
- OIL PUMP
- RACK AND BUMPER
- RADIATOR ASSY
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- SIDE COVER
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- THROTTLE BODY ASSY.
- TRANSMISSION
- VALVE ASSY
- WATER PUMP ASSY
- WHEEL - FRONT LEFT SIDE W/ AXLE ASSY
- WHEEL - FRONT RIGHT SIDE W/ AXLE ASSY
- WHEEL - REAR LEFT SIDE W/ AXLE ASSY
- WHEEL - REAR RIGHT SIDE W/ AXLE ASSY
