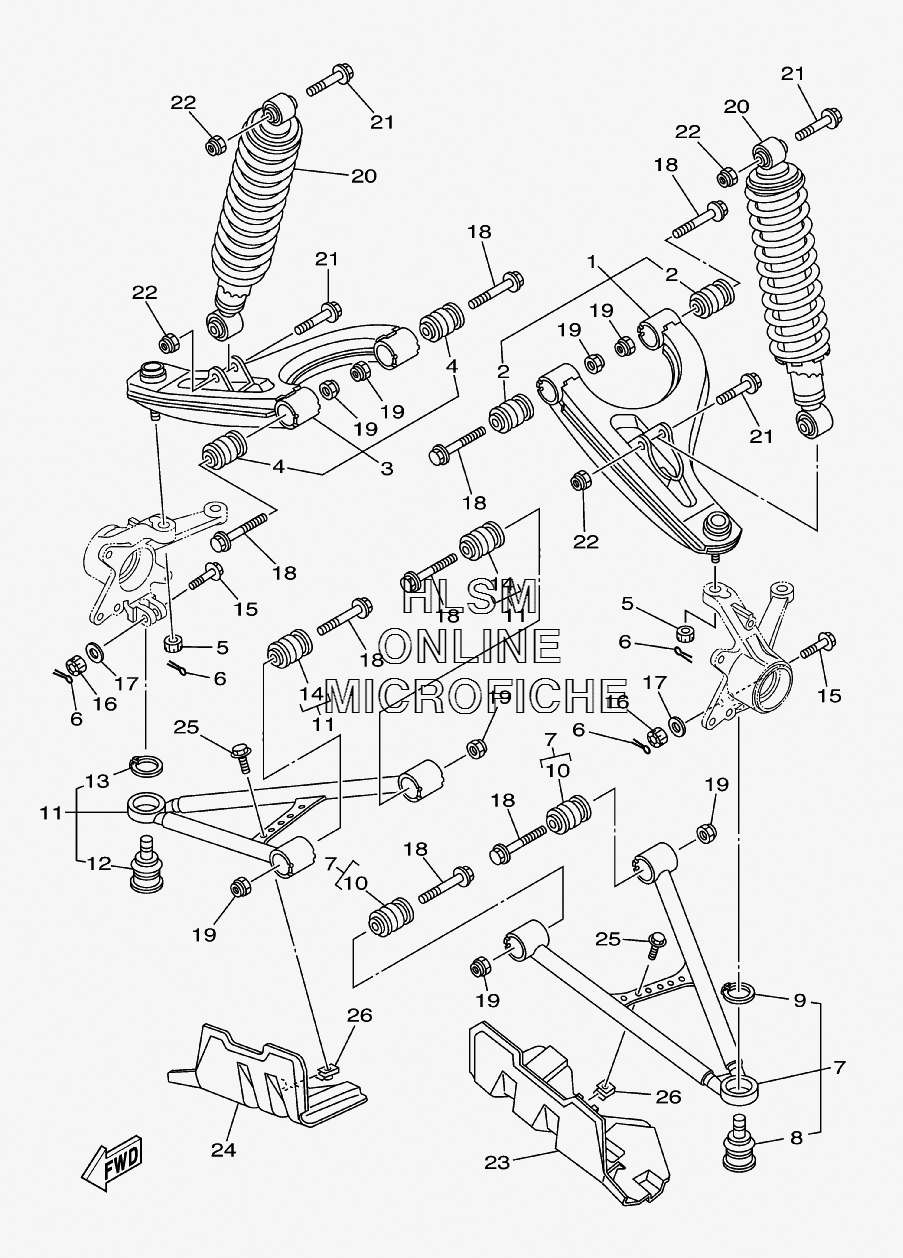

SUSPENSION - FRONT WHEEL для Yamaha GRIZZLY 660 HUNTER - 2008 года выпуска`
-
№АртикулНазвание
-
15KM-23540-10-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
25KM-23526-10-00 ...BUSH...BUSH
-
35KM-23550-10-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
45KM-23526-10-00 ...BUSH...BUSH
-
590171-10046-00 NUT, CASTLENUT, CASTLE
-
691401-20020-00 PIN, COTTERPIN, COTTER
-
75KM-23570-10-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
85KM-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
999009-30400-00 ...CIRCLIP...CIRCLIP
-
105KM-23526-10-00 ...BUSH...BUSH
-
115KM-23580-10-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
125KM-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
1399009-30400-00 ...CIRCLIP...CIRCLIP
-
145KM-23526-10-00 ...BUSH...BUSH
-
1590105-10549-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1695337-10600-00 NUTNUT
-
1790201-10430-00 WASHER, PLATEWASHER, PLATE
-
1890105-10286-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1990185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
205KM-23350-20-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
2190105-10388-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2290185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
235KM-23123-00-00 COVER, LOWER 1COVER, LOWER 1
-
245KM-23133-00-00 COVER, LOWER 2COVER, LOWER 2
-
2595807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2690183-06053-00 NUT, SPRINGNUT, SPRING
