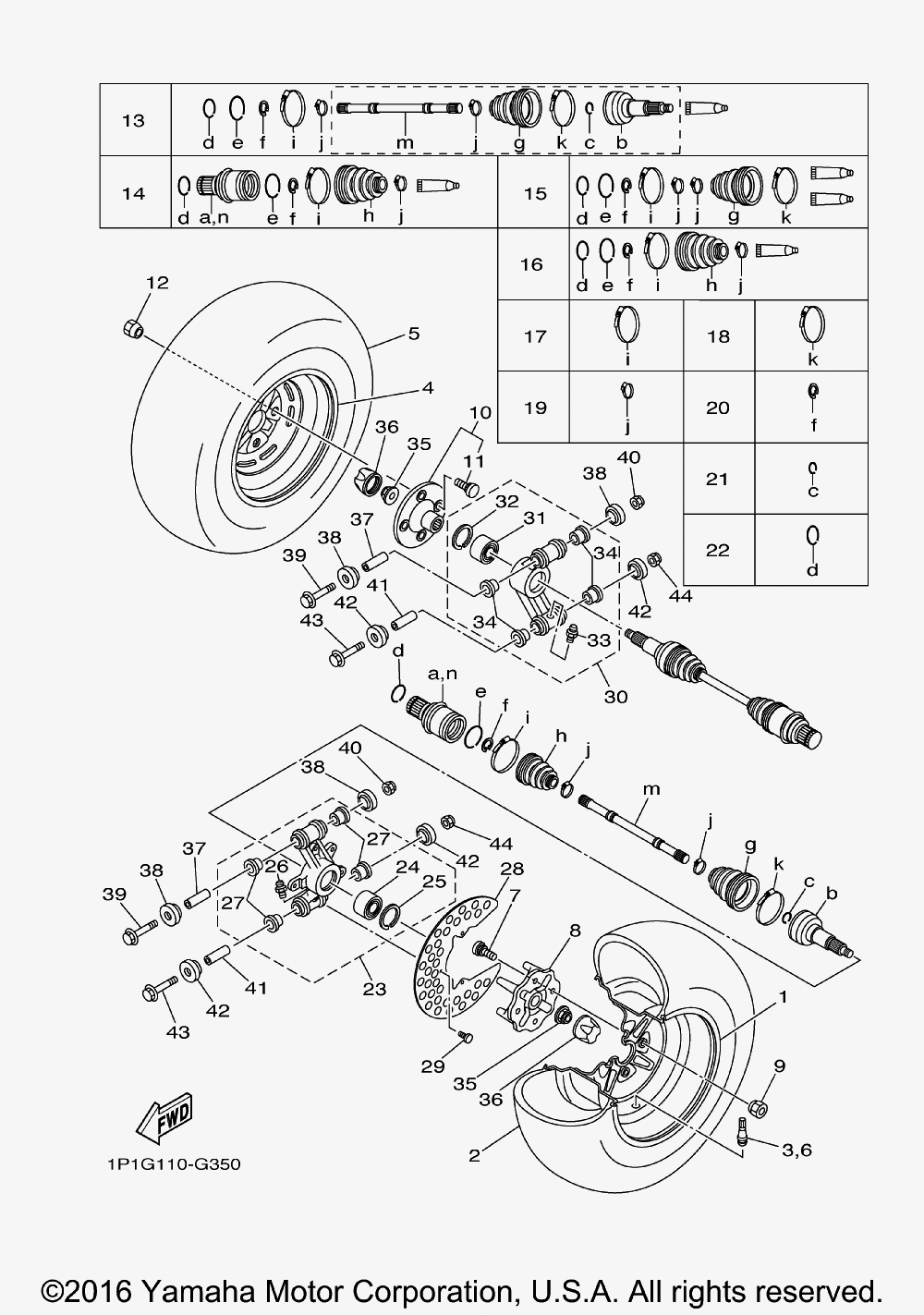

WHEEL - REAR W/ AXLE ASSY для Yamaha GRIZZLY 400 4WD HUNTER - 2008 года выпуска`
-
№АртикулНазвание
-
11D9-F5390-10-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-12809-00 TIRE (AT25X10-12 M980) (CHENG SHIN)TIRE (AT25X10-12 M980) (CHENG SHIN)
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
41D9-F5390-10-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
594110-12809-00 TIRE (AT25X10-12 M980) (CHENG SHIN)TIRE (AT25X10-12 M980) (CHENG SHIN)
-
693900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
790114-10014-00 BOLT, SERRATIONBOLT, SERRATION
-
81D9-F5311-00-00 HUB, REARHUB, REAR
-
990179-10022-00 NUTNUT
-
101D9-F532E-01-00 HUB SUB-ASSYHUB SUB-ASSY
-
1190114-10014-00 ...BOLT, SERRATION...BOLT, SERRATION
-
1290179-10022-00 NUTNUT
-
134S2-2530U-00-00 BALL JOINT SETBALL JOINT SET
-
144S1-2530V-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
154S1-2530X-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
164S1-2530Y-00-00 BOOT SET(DOUBLE OFFSET JOINT)BOOT SET(DOUBLE OFFSET JOINT)
-
174KB-2511H-00-00 BOOT BAND(DOUBLE OFFSETJOINT)BOOT BAND(DOUBLE OFFSETJOINT)
-
183HN-2511G-01-00 CIRCLIPCIRCLIP
-
193HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
202HR-2512J-00-00 SNAP RINGSNAP RING
-
214KB-2512H-00-00 CIRCLIPCIRCLIP
-
225KM-2536E-10-00 CLIP, SPRINGCLIP, SPRING
-
231D9-F530F-01-00 REAR KNUCKLE ASSYREAR KNUCKLE ASSY
-
2493305-00602-00 ...BEARING...BEARING
-
2599009-55500-00 ...CIRCLIP...CIRCLIP
-
2693700-06009-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
2790381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
281D9-F5718-00-00 PROTECTOR, DISC BRAKEPROTECTOR, DISC BRAKE
-
2990149-06280-00 SCREWSCREW
-
301D9-F532F-01-00 REAR KNUCKLE ASSY.,2REAR KNUCKLE ASSY.,2
-
3193305-00602-00 ...BEARING...BEARING
-
3299009-55500-00 ...CIRCLIP...CIRCLIP
-
3393700-06009-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
3490381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
3590179-20016-00 NUTNUT
-
365GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
375KM-23448-00-00 SPACERSPACER
-
382NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
3990105-10480-00 BOLT, FLANGEBOLT, FLANGE
-
4090185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
415KM-23448-00-00 SPACERSPACER
-
422NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
4390105-10480-00 BOLT, FLANGEBOLT, FLANGE
-
4490185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
