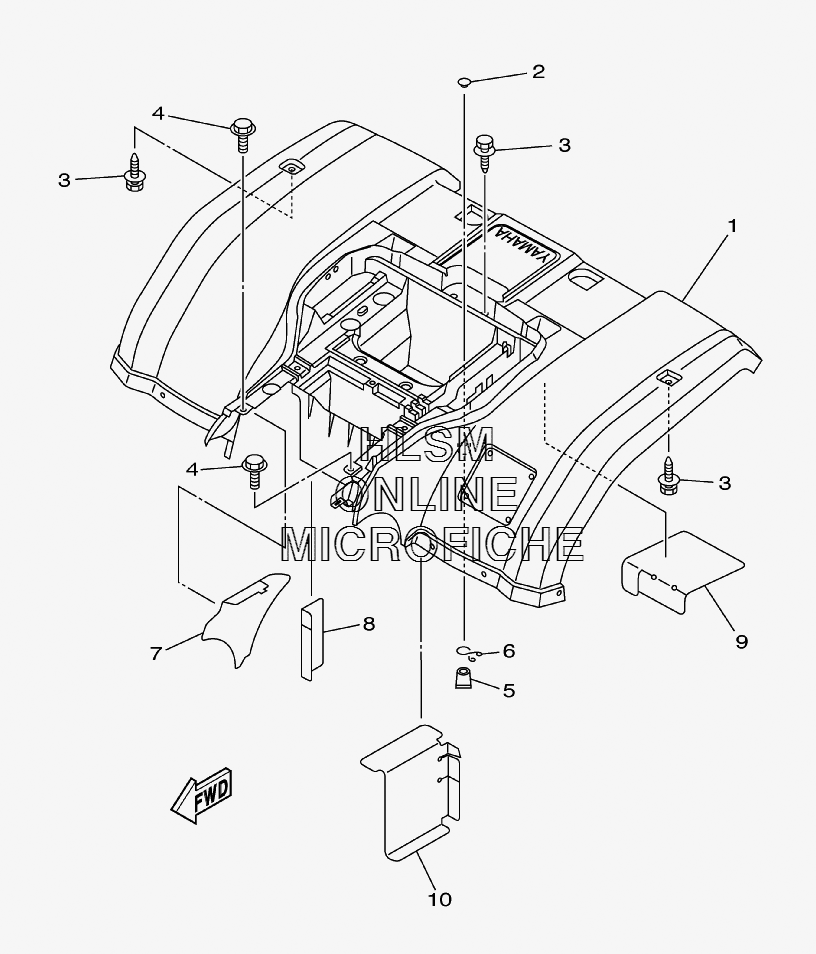

FENDER - REAR для Yamaha GRIZZLY 350 - 2008 года выпуска`
-
№АртикулНазвание
-
15ND-F1600-01-00 REAR FENDER ASSY. FOR RTRREAR FENDER ASSY. FOR RTR
-
15ND-F1600-11-00 REAR FENDER ASSY. FOR PDGREAR FENDER ASSY. FOR PDG
-
15ND-F1600-B1-00 REAR FENDER ASSY. FOR DPBSNREAR FENDER ASSY. FOR DPBSN
-
290338-09801-00 PLUGPLUG
-
390119-06157-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490119-06227-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
55BF-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
690467-160A4-00 CLIPCLIP
-
75ND-F163A-02-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
85ND-F163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
95ND-F1652-00-00 PROTECTORPROTECTOR
-
105ND-F163F-00-00 COVER, REAR FENDER 3COVER, REAR FENDER 3
