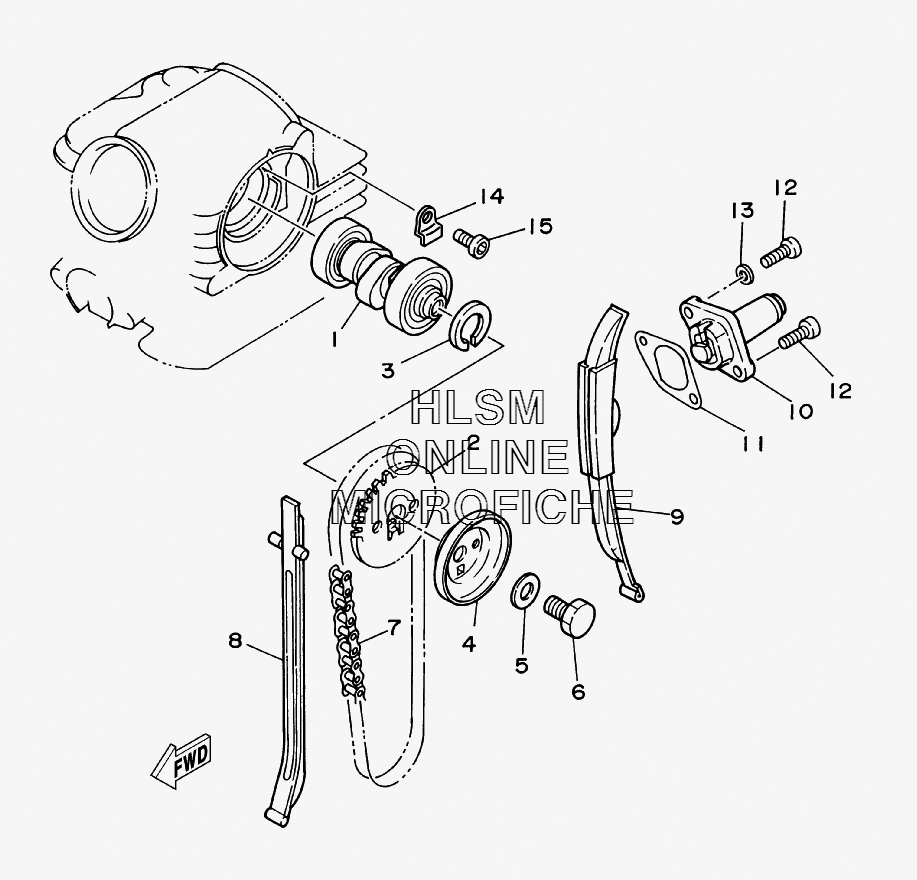

CAMSHAFT W/ CHAIN для Yamaha GRIZZLY 125 - 2008 года выпуска`
-
№АртикулНазвание
-
150M-12170-01-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
250M-12176-00-00 SPROCKET, CAM CHAIN (28T)SPROCKET, CAM CHAIN (28T)
-
390387-167L5-00 COLLARCOLLAR
-
43FA-11145-00-00 PLATE, BREATHER 2PLATE, BREATHER 2
-
590201-08048-00 WASHER, PLATEWASHER, PLATE
-
690101-08055-00 BOLTBOLT
-
794580-25092-00 CHAIN (D.I.D 25)CHAIN (D.I.D 25)
-
850M-12231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
950M-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
1050M-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
114RF-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1291312-06016-00 BOLTBOLT
-
1390430-06014-00 GASKETGASKET
-
144GL-1111F-00-00 PLATEPLATE
-
1591312-06012-00 BOLTBOLT
