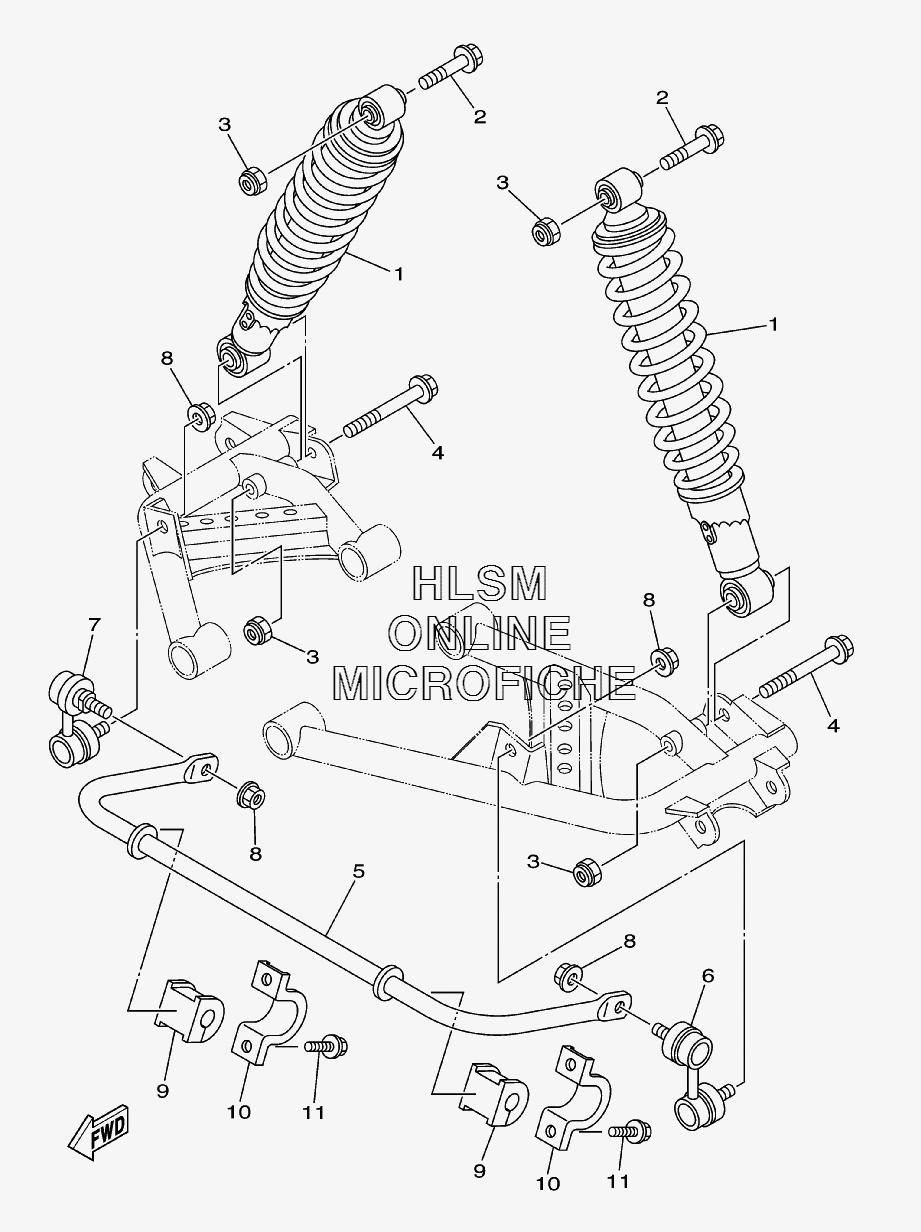

SUSPENSION - REAR SHOCK ABSORBER для Yamaha BIG BEAR 400 4WD HUNTER - 2008 года выпуска`
-
№АртикулНазвание
-
11D9-F2210-01-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
290105-10841-00 BOLT, FLANGEBOLT, FLANGE
-
390185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
490105-10202-00 BOLT, FLANGEBOLT, FLANGE
-
51D9-G7491-00-00 BAR, STABILIZERBAR, STABILIZER
-
65KM-2385L-01-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
75KM-2385M-01-00 JOINT, STABILIZER 2JOINT, STABILIZER 2
-
895602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
91D9-F386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
101D9-F386H-01-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
1195812-08012-00 BOLT, FLANGEBOLT, FLANGE
