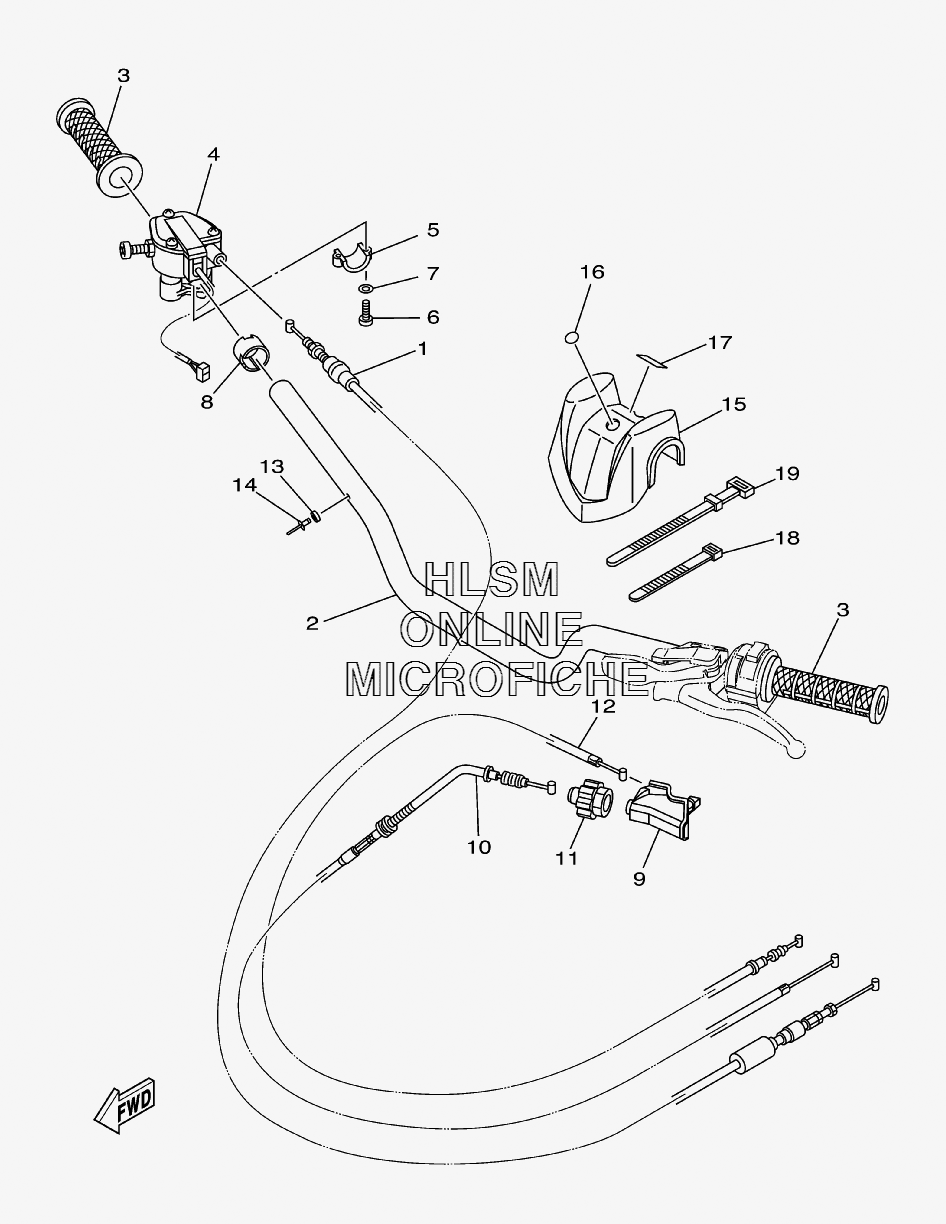

HANDLEBAR W/ CABLES для Yamaha YFZ450 - 2007 года выпуска`
-
№АртикулНазвание
-
15TG-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
25D3-26111-00-00 HANDLEBARHANDLEBAR
-
35LP-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
45TG-26250-10-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
54V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
698502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
792902-05100-00 WASHER, SPRINGWASHER, SPRING
-
81UY-26259-00-00 COLLARCOLLAR
-
95TG-26372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
105TG-26335-20-00 CABLE, CLUTCHCABLE, CLUTCH
-
111C3-26342-50-00 BOOT, CABLEBOOT, CABLE
-
125TG-26341-20-00 CABLE, BRAKECABLE, BRAKE
-
1390387-02001-00 COLLARCOLLAR
-
1490267-24143-00 RIVET, BLINDRIVET, BLIND
-
155D3-26124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
165GT-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
175D3-26219-00-00 EMBLEMEMBLEM
-
18437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
193TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
