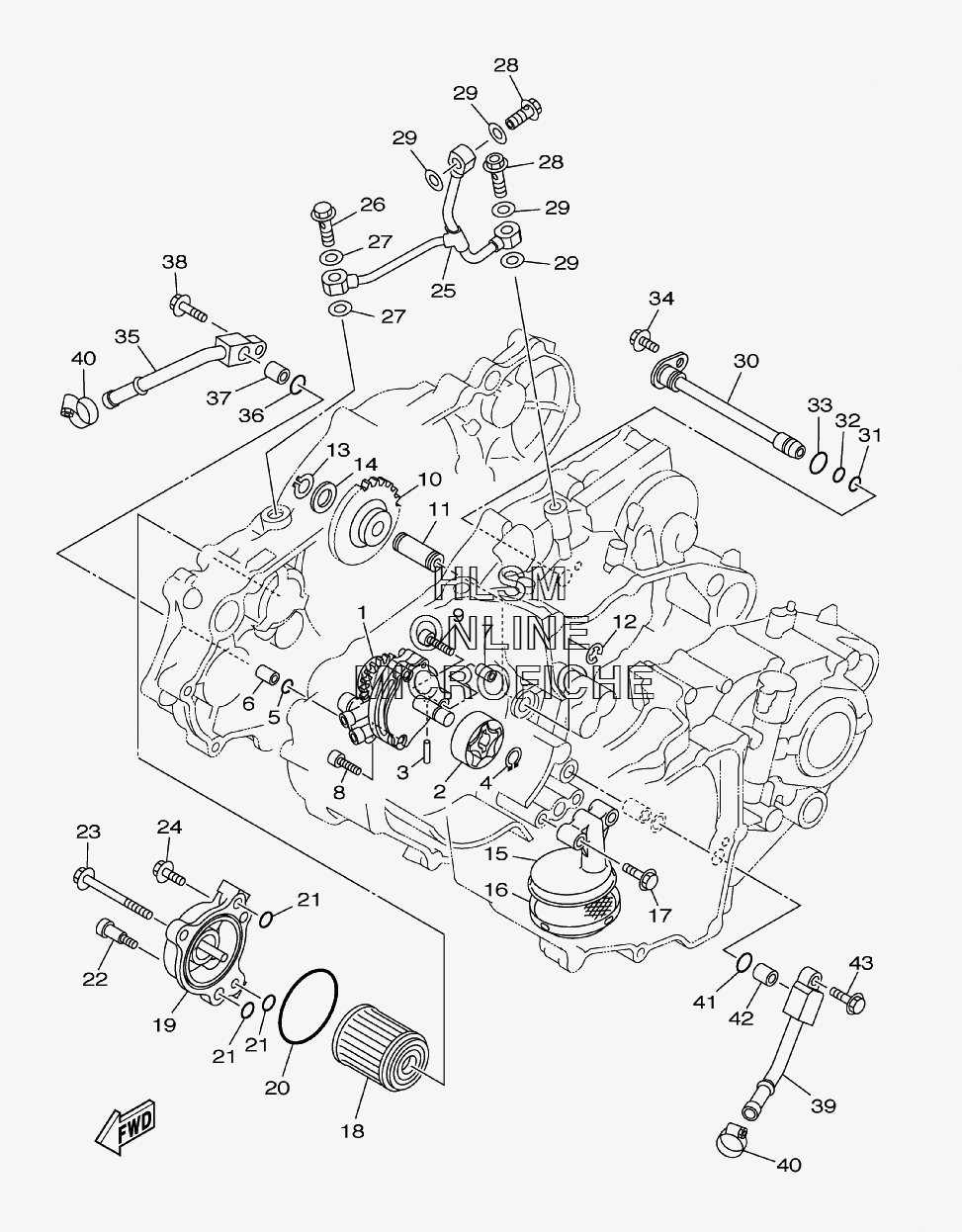

OIL PUMP для Yamaha YFZ450 BILL BALLANCE EDITION - 2007 года выпуска`
![](/wa-data/public/shop/sheme/yamaha/atv/9e8cba4f-fc0e-4589-af67-de32c190ea85.gif)
-
№АртикулНазвание
-
15D3-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
25TA-13320-00-00 ROTOR ASSY 2ROTOR ASSY 2
-
393603-16219-00 PIN, DOWELPIN, DOWEL
-
493440-10153-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
593210-10197-00 O-RINGO-RING
-
699530-10114-00 PIN, DOWELPIN, DOWEL
-
799530-08012-00 PIN, DOWELPIN, DOWEL
-
891312-06025-00 BOLTBOLT
-
991312-06030-00 BOLTBOLT
-
105TA-13341-00-00 GEAR, OIL PUMP IDLEGEAR, OIL PUMP IDLE
-
115BE-13342-00-00 SHAFT, IDLE GEARSHAFT, IDLE GEAR
-
1299002-08600-00 CIRCLIPCIRCLIP
-
1399009-12400-00 CIRCLIPCIRCLIP
-
1490201-12166-00 WASHER, PLATEWASHER, PLATE
-
155TA-13412-00-00 HOUSING, STRAINERHOUSING, STRAINER
-
165BE-13411-00-00 STRAINER, OILSTRAINER, OIL
-
1795022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
185D3-13440-00-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
195BE-13447-10-00 COVER, OIL ELEMENTCOVER, OIL ELEMENT
-
2093210-47675-00 O-RINGO-RING
-
2193210-07135-00 O-RINGO-RING
-
2290109-065G2-00 BOLTBOLT
-
2391317-06065-00 BOLTBOLT
-
2491317-06020-00 BOLTBOLT
-
255TJ-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
2690401-10015-00 BOLT, UNIONBOLT, UNION
-
2790430-10188-00 GASKETGASKET
-
2890401-08006-00 BOLT, UNIONBOLT, UNION
-
2990430-08119-00 GASKETGASKET
-
305TG-13171-00-00 PIPE, DELIVERY 2PIPE, DELIVERY 2
-
3193210-07003-00 O-RINGO-RING
-
3293210-09008-00 O-RINGO-RING
-
3393210-12759-00 O-RINGO-RING
-
3495022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
355TG-13416-10-00 PIPE, OIL 1PIPE, OIL 1
-
3693210-10197-00 O-RINGO-RING
-
3799530-10114-00 PIN, DOWELPIN, DOWEL
-
3895022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
395TG-13418-10-00 PIPE, OIL 2PIPE, OIL 2
-
4090450-22001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
4193210-10197-00 O-RINGO-RING
-
4299530-10114-00 PIN, DOWELPIN, DOWEL
-
4395022-06025-00 BOLT, FLANGEBOLT, FLANGE
