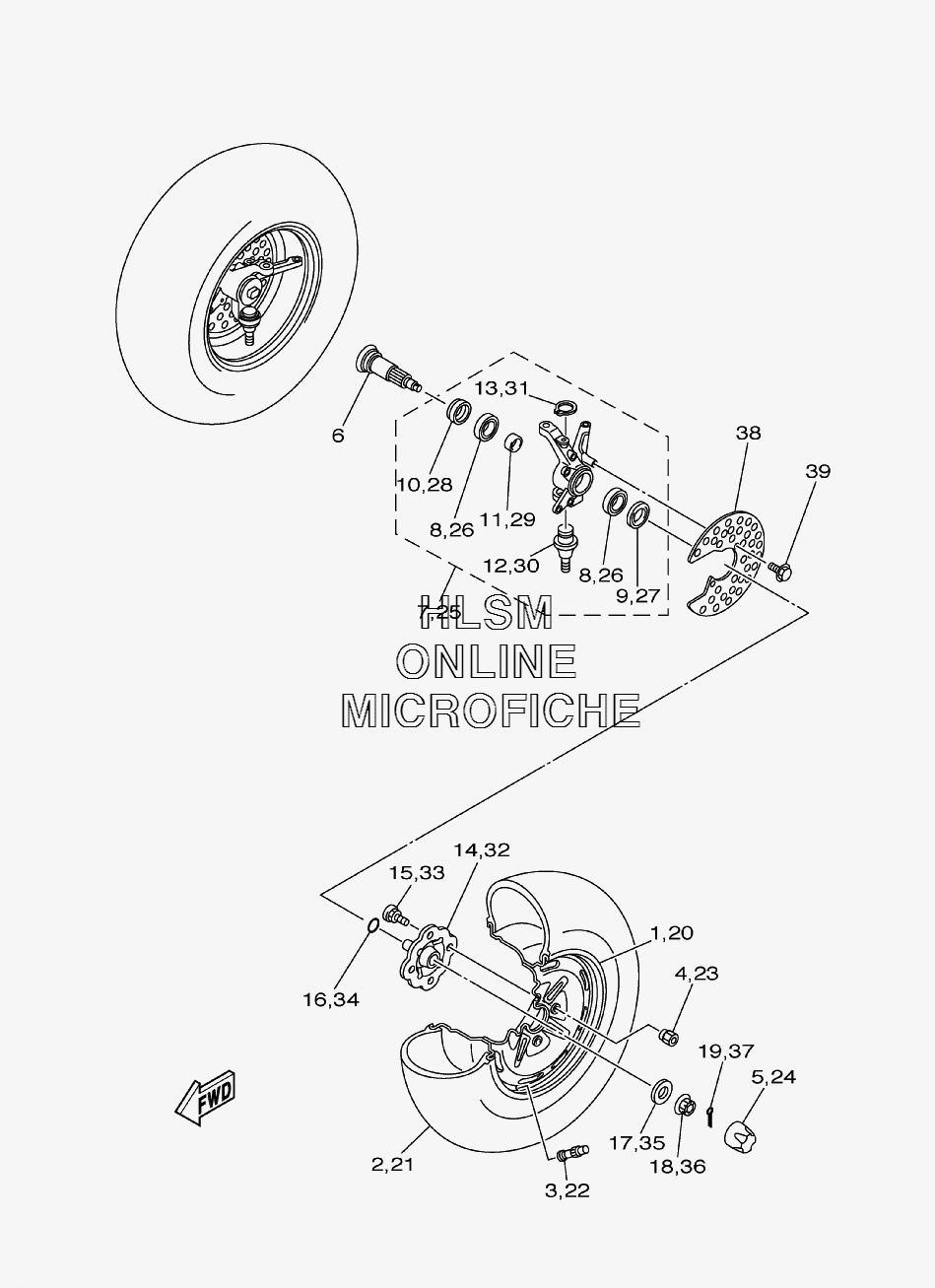

WHEEL - FRONT W/ AXLE ASSY для Yamaha WOLVERINE 350 SPORT - 2007 года выпуска`
-
№АртикулНазвание
-
15ND-F5180-21-00 FRONT RIM (12 X 6)FRONT RIM (12 X 6)
-
294108-12808-00 TIRE (AT23 X 8-12) CHENG SHINTIRE (AT23 X 8-12) CHENG SHIN
-
393900-00813-00 VALVE, RIMVALVE, RIM
-
490179-10540-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
55GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
65HA-25181-00-00 AXLE, WHEELAXLE, WHEEL
-
75ND-F3501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
893306-006Y2-00 ...BEARING...BEARING
-
993106-38046-00 ...OIL SEAL...OIL SEAL
-
1093106-38047-00 ...OIL SEAL...OIL SEAL
-
1190560-30325-00 ...SPACER...SPACER
-
125FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
1393410-32826-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
145ND-F5111-20-00 HUB, FRONTHUB, FRONT
-
1590114-10010-00 BOLT, SERRATIONBOLT, SERRATION
-
1693210-27666-00 O-RINGO-RING
-
1790201-168R1-00 WASHER, PLATEWASHER, PLATE
-
1890171-16001-00 NUT, CASTLENUT, CASTLE
-
1991401-30030-00 PIN, COTTERPIN, COTTER
-
205ND-F5180-21-00 WHEEL COMP.WHEEL COMP.
-
2194108-12808-00 TIRE (AT23 X 8-12) CHENG SHINTIRE (AT23 X 8-12) CHENG SHIN
-
2293900-00813-00 VALVE, RIMVALVE, RIM
-
2390179-10540-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
245GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
255ND-F3502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2693306-006Y2-00 ...BEARING...BEARING
-
2793106-38046-00 ...OIL SEAL...OIL SEAL
-
2893106-38047-00 ...OIL SEAL...OIL SEAL
-
2990560-30325-00 ...SPACER...SPACER
-
305FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
3193410-32826-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
325ND-F5111-20-00 HUB, FRONTHUB, FRONT
-
3390114-10010-00 BOLT, SERRATIONBOLT, SERRATION
-
3493210-27666-00 O-RINGO-RING
-
3590201-168R1-00 WASHER, PLATEWASHER, PLATE
-
3690171-16001-00 NUT, CASTLENUT, CASTLE
-
3791401-30030-00 PIN, COTTERPIN, COTTER
-
385ND-F514A-00-00 RING, WHEEL 1 (LEFT)RING, WHEEL 1 (LEFT)
-
399582P-06012-00 BOLT, FLANGEBOLT, FLANGE
