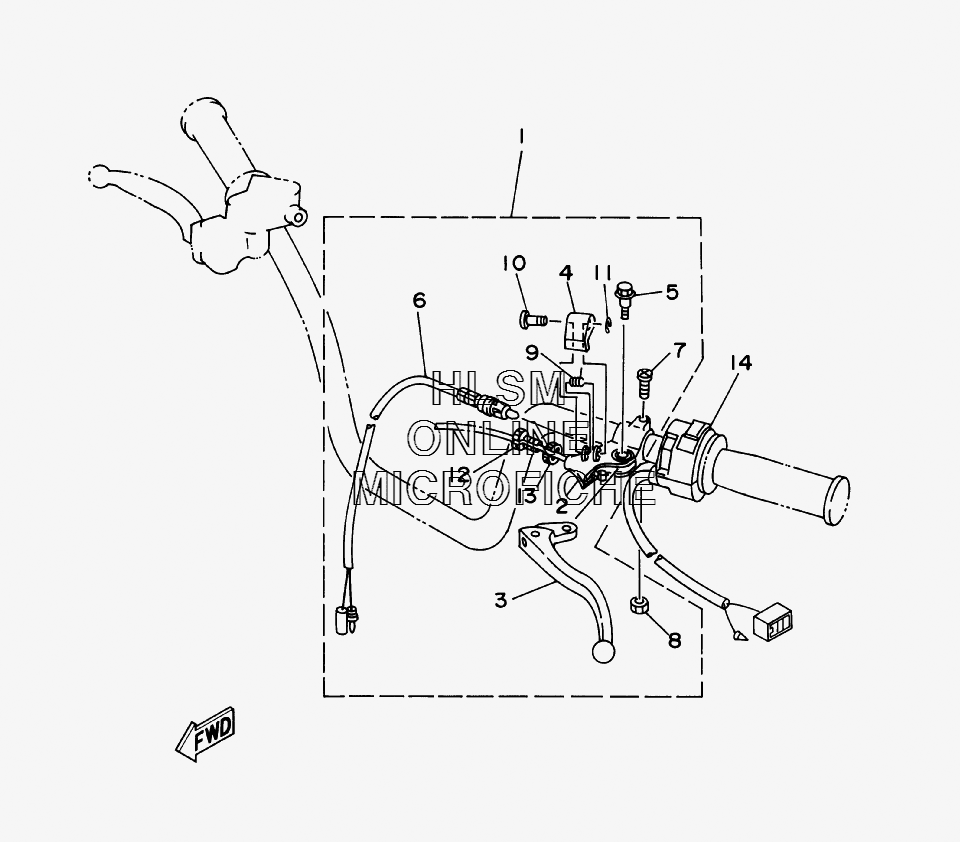

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha RAPTOR 80 - 2007 года выпуска`
-
№АртикулНазвание
-
15TH-82910-01-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
23FA-82911-01-00 ...HOLDER, LEVER 1...HOLDER, LEVER 1
-
323X-83912-00-00 ...LEVER L...LEVER L
-
43FA-83965-00-00 ...LEVER, LOCK...LEVER, LOCK
-
590109-06799-00 ...BOLT...BOLT
-
61YW-83980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
798507-06020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
895607-06100-00 ...NUT, U...NUT, U
-
93FA-83966-00-00 ...SPRING, RETURN...SPRING, RETURN
-
103FA-83967-00-00 ...PIN, LOCK 1...PIN, LOCK 1
-
113FA-26466-00-00 ...RING, SNAP...RING, SNAP
-
1290123-08046-00 ...BOLT...BOLT
-
1390179-08148-00 ...NUT, SPEC'L SHAPE...NUT, SPEC'L SHAPE
-
144EM-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
