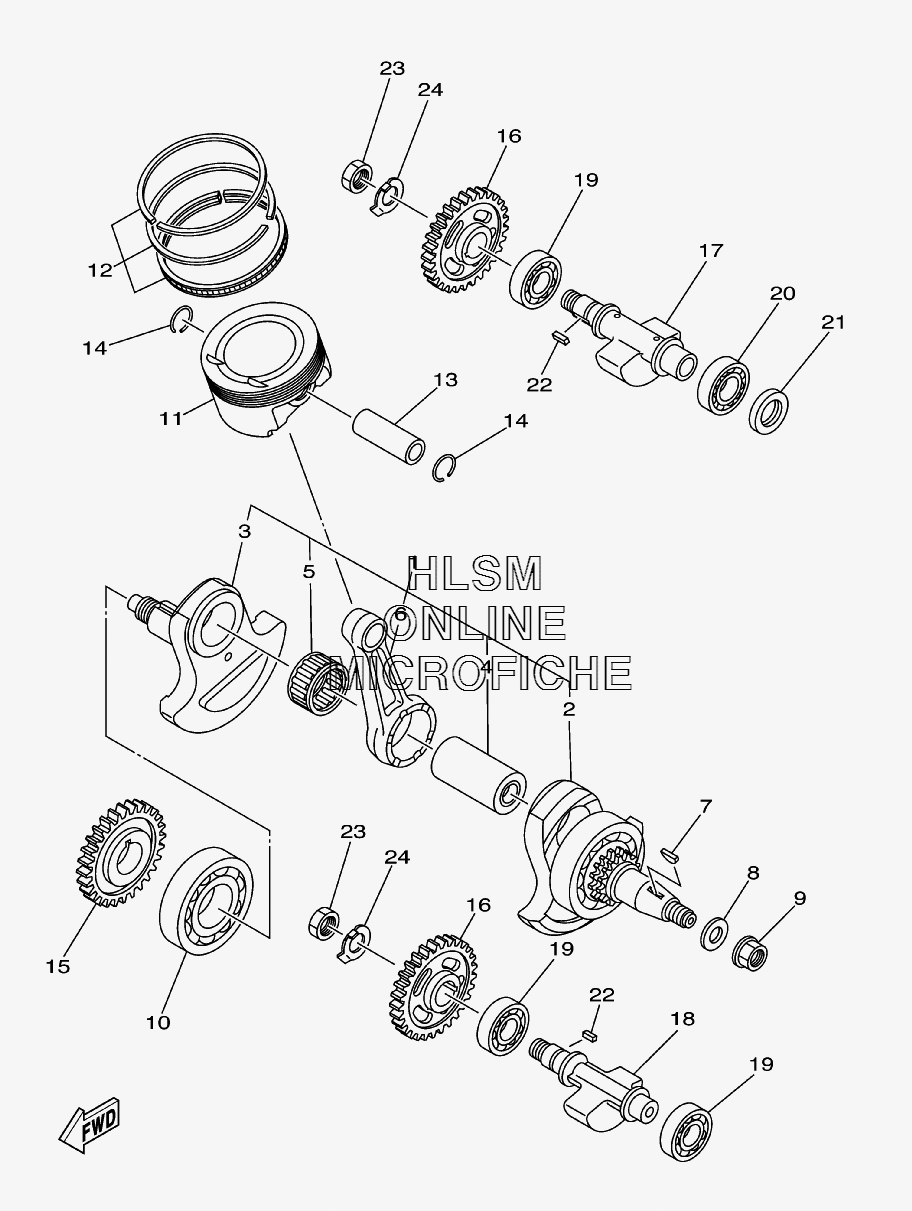

CRANKSHAFT - PISTON для Yamaha RAPTOR 700R GYTR EDITION - 2007 года выпуска`
-
№АртикулНазвание
-
11S3-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
21S3-11401-09-00 ...CRANK SUB ASSY 1...CRANK SUB ASSY 1
-
31S3-11422-00-00 ...CRANK 2...CRANK 2
-
41S3-11681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
593310-84017-00 ...BEARING...BEARING
-
61S3-11651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
790280-05001-00 KEY, WOODRUFFKEY, WOODRUFF
-
890201-16013-00 WASHER, PLATEWASHER, PLATE
-
990179-16004-00 NUTNUT
-
1093306-30810-00 BEARINGBEARING
-
111S3-11631-10-00 PISTON (STD)PISTON (STD)
-
121S3-11603-10-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
135VK-11633-00-00 PIN, PISTONPIN, PISTON
-
1493450-24154-00 CIRCLIPCIRCLIP
-
151S3-11536-00-00 GEAR, DRIVEGEAR, DRIVE
-
161S3-11531-00-00 GEAR, BALANCE WEIGHTGEAR, BALANCE WEIGHT
-
171S3-11454-00-00 WEIGHT 1WEIGHT 1
-
181S3-11464-00-00 WEIGHT 2WEIGHT 2
-
1993306-20481-00 BEARINGBEARING
-
2093306-00502-00 BEARINGBEARING
-
2193101-25106-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
2290282-05005-00 KEY, STRAIGHTKEY, STRAIGHT
-
2390170-16326-00 NUTNUT
-
2490215-16221-00 WASHER, LOCKWASHER, LOCK
