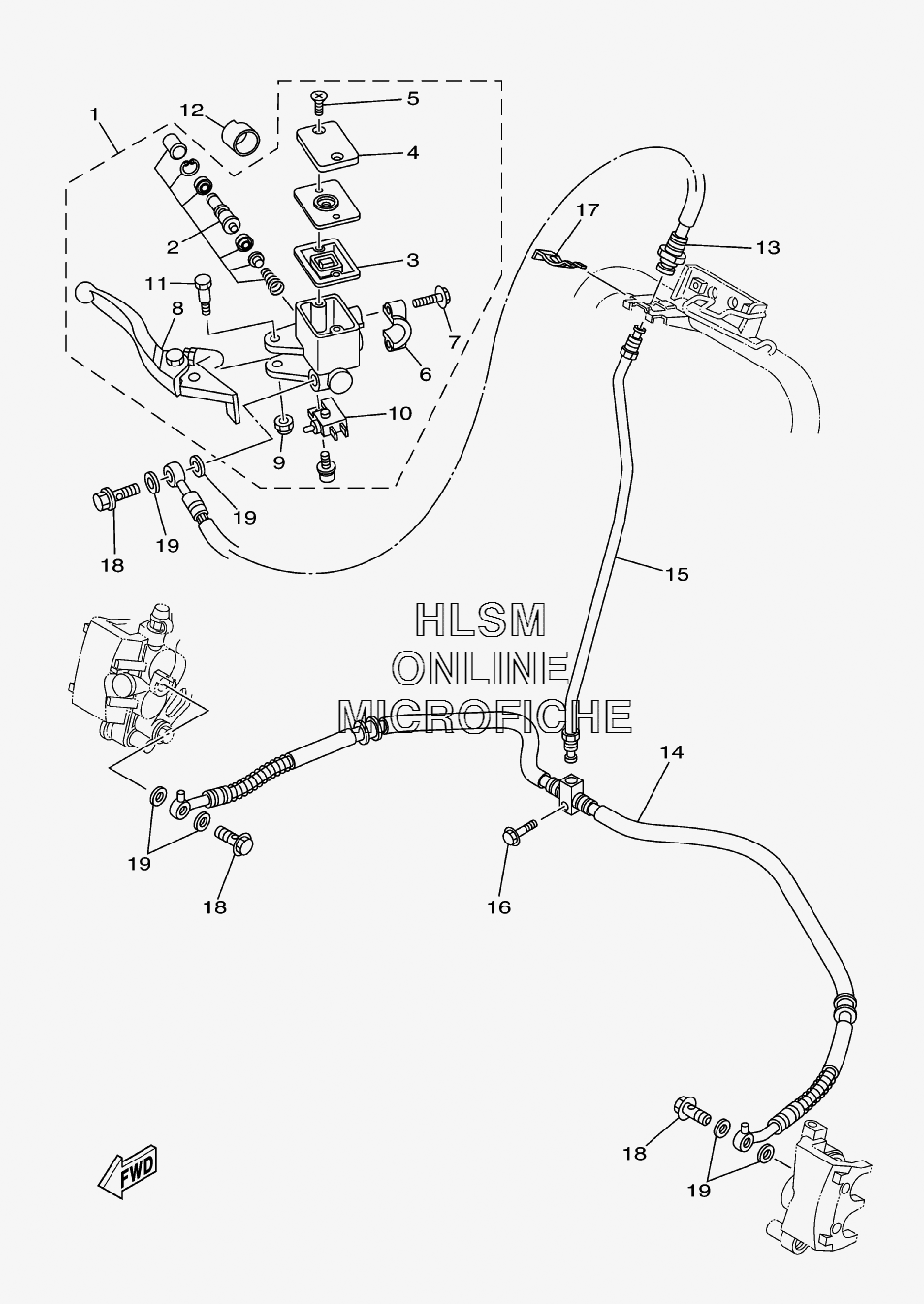

BRAKE - FRONT MASTER CYLINDER для Yamaha RAPTOR 700 - 2007 года выпуска`
-
№АртикулНазвание
-
15D3-2583T-00-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
25D3-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34TT-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
45D3-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
54NK-2589H-00-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
65LP-25867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
75MV-25833-00-00 ...BOLT, FITTING...BOLT, FITTING
-
85D3-83922-00-00 ...LEVER 2...LEVER 2
-
995604-06100-00 ...NUT, U...NUT, U
-
105D3-83980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
115MV-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
121UY-26259-00-00 COLLARCOLLAR
-
131S3-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
145TG-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
151S3-25871-00-00 PIPE, BRAKEPIPE, BRAKE
-
1695827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
172GU-25866-00-00 CIRCLIPCIRCLIP
-
1890401-10159-00 BOLT, UNIONBOLT, UNION
-
1990201-10118-00 WASHER, PLATEWASHER, PLATE
