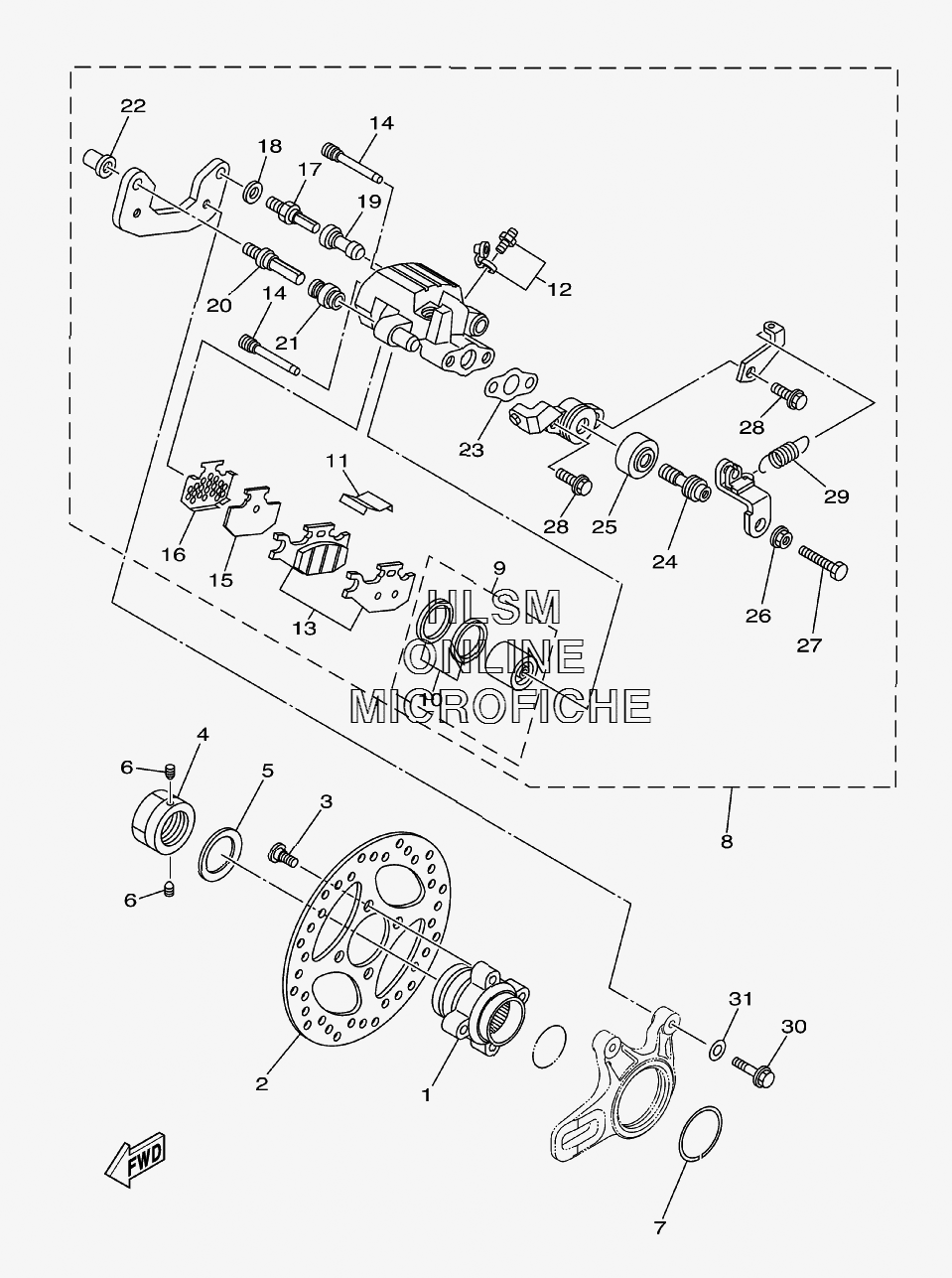

BRAKE - REAR CALIPER для Yamaha RAPTOR 700 SE - 2007 года выпуска`
-
№АртикулНазвание
-
11S3-25712-00-00 BRACKET, DISCBRACKET, DISC
-
21S3-2582W-10-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
390109-08076-00 BOLTBOLT
-
490179-36003-00 NUTNUT
-
590208-37001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
690113-06055-00 BOLT, SETBOLT, SET
-
71S3-25415-00-00 CIRCLIPCIRCLIP
-
81S3-2580V-10-00 CALIPER ASSY, REAR 1CALIPER ASSY, REAR 1
-
95UG-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
103GD-W0047-00-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
114GY-25919-50-00 ...SUPPORT, PAD...SUPPORT, PAD
-
121UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
131S3-W0046-01-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
145GH-25924-00-00 ...PIN, PAD...PIN, PAD
-
155UG-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
165GH-25828-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
171UY-25926-51-00 ...BOLT...BOLT
-
181UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
191UY-25937-51-00 ...BOOT 2...BOOT 2
-
203JD-25926-00-00 ...BOLT...BOLT
-
213JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
223JD-25961-00-00 ...NUT...NUT
-
235UG-25898-00-00 ...GASKET...GASKET
-
241S3-25978-00-00 ...SHAFT L...SHAFT L
-
251UY-25974-51-00 ...BOOT...BOOT
-
261S3-25973-00-00 ...NUT...NUT
-
271S3-25972-00-00 ...ADJUST BOLT...ADJUST BOLT
-
285UG-25833-00-00 ...BOLT, FITTING...BOLT, FITTING
-
295TG-25977-50-00 ...SPRING, RETURN...SPRING, RETURN
-
3090105-08104-00 BOLT, FLANGEBOLT, FLANGE
-
3190201-08013-00 WASHER, PLATEWASHER, PLATE
