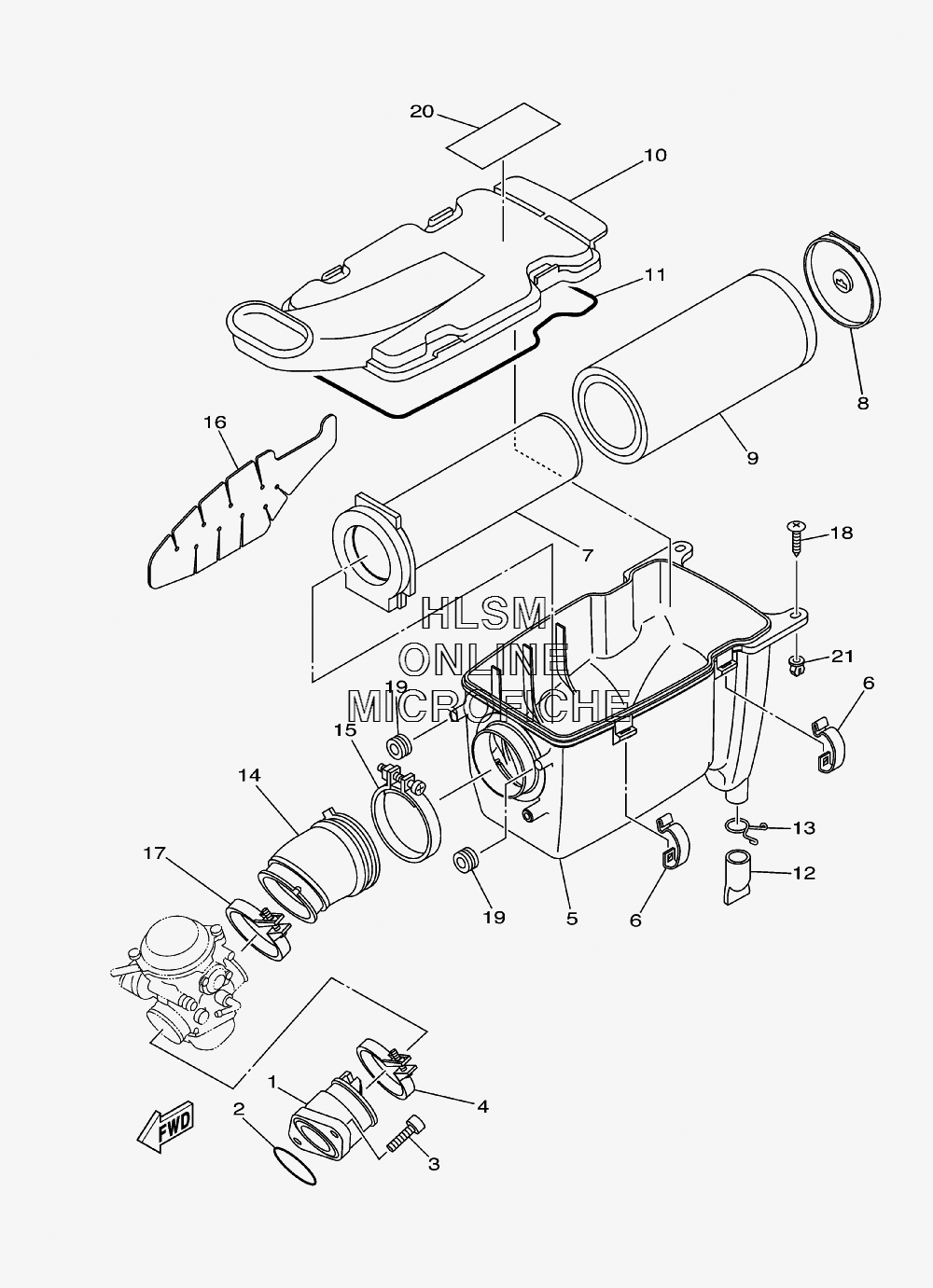

AIR CLEANER W/ INTAKE для Yamaha RAPTOR 350 SE 2 - 2007 года выпуска`
-
№АртикулНазвание
-
15YT-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-44545-00 O-RINGO-RING
-
391317-08025-00 BOLTBOLT
-
490450-52003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
55YT-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
65GH-14436-00-00 HOOKHOOK
-
71UY-14458-01-00 GUIDEGUIDE
-
81UY-14468-00-00 PLATE, ELEMENT FITTINGPLATE, ELEMENT FITTING
-
91UY-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
105YT-14412-01-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
114FU-14452-00-00 SEALSEAL
-
1259V-14457-00-00 SEALSEAL
-
1390467-22080-00 CLIP, SCISSORCLIP, SCISSOR
-
145YT-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1590460-75020-00 CLAMP, HOSECLAMP, HOSE
-
165YT-1442F-00-00 PROTECTORPROTECTOR
-
1790450-63004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1897707-60025-00 SCREW, TAPPINGSCREW, TAPPING
-
1990480-15005-00 GROMMETGROMMET
-
205UH-2177C-10-00 PLATE, EPA OFFROAD ATV 1PLATE, EPA OFFROAD ATV 1
-
2190338-08226-00 PLUGPLUG
