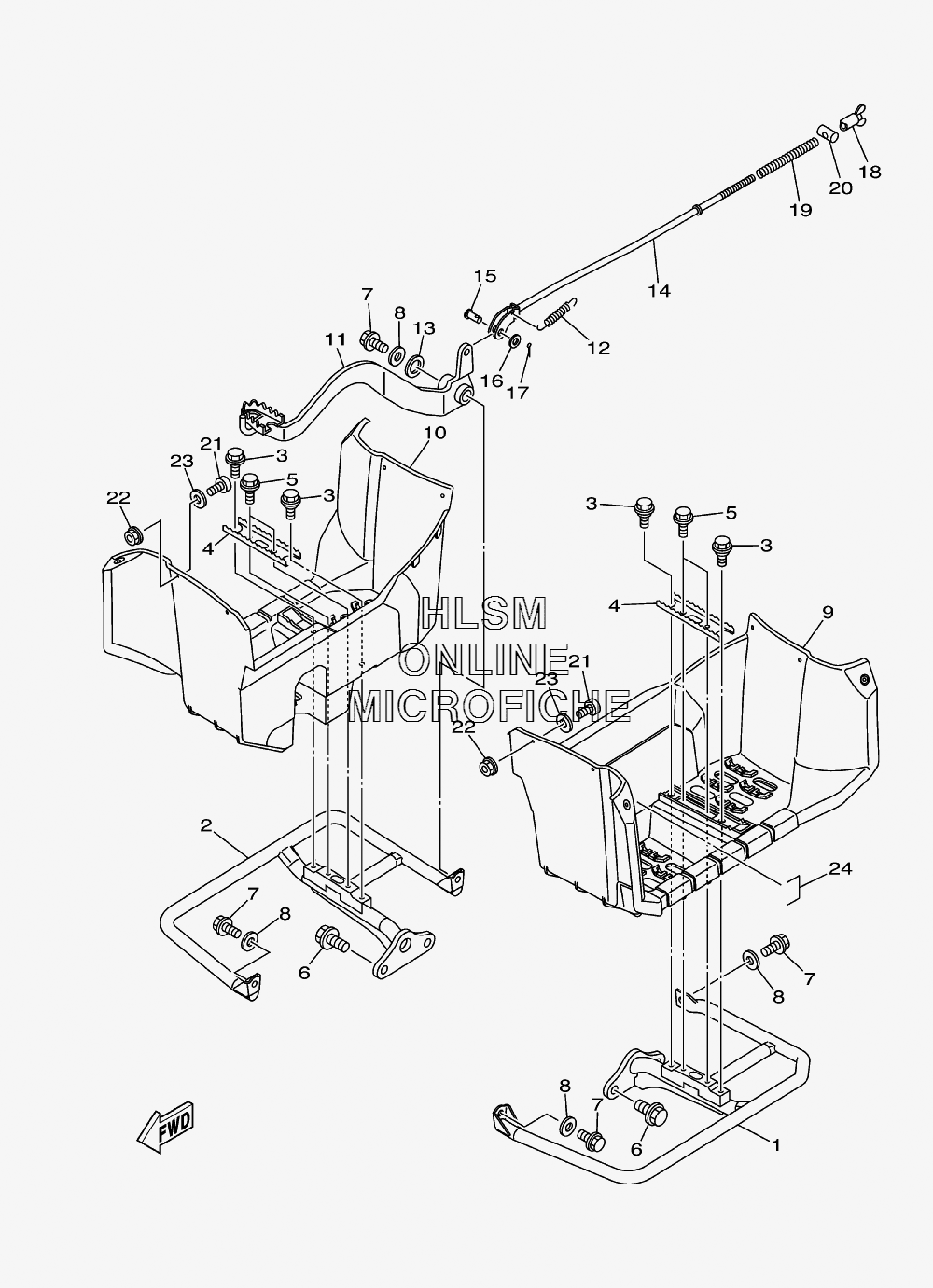

FOOTREST W/ BRAKE PEDAL для Yamaha GRIZZLY 80 - 2007 года выпуска`
-
№АртикулНазвание
-
12D3-27411-10-00 FOOTREST 1FOOTREST 1
-
22D3-27421-10-00 FOOTREST 2FOOTREST 2
-
390109-063F1-00 BOLTBOLT
-
42D3-2741A-00-00 ARM 1ARM 1
-
595807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
695817-12020-00 BOLT, FLANGEBOLT, FLANGE
-
795027-08014-00 BOLT, FLANGEBOLT, FLANGE
-
890201-086P8-00 WASHER, PLATEWASHER, PLATE
-
92D3-27453-01-00 COVER 1COVER 1
-
102D3-27463-01-00 COVER 2COVER 2
-
112D3-27211-10-00 PEDAL, BRAKEPEDAL, BRAKE
-
1290506-16318-00 SPRING, TENSIONSPRING, TENSION
-
1390201-15797-00 WASHER, PLATEWASHER, PLATE
-
143GB-27231-00-00 ROD, BRAKEROD, BRAKE
-
1590240-06076-00 PIN, CLEVISPIN, CLEVIS
-
1692907-06200-00 WASHERWASHER
-
1791401-20012-00 PIN, COTTERPIN, COTTER
-
1820E-26343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
1990501-10245-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2090249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
2198907-05016-00 SCREW, BINDSCREW, BIND
-
2295707-05300-00 NUT, FLANGENUT, FLANGE
-
2390201-05029-00 WASHER, PLATEWASHER, PLATE
-
244EM-15443-01-00 EMBLEMEMBLEM
