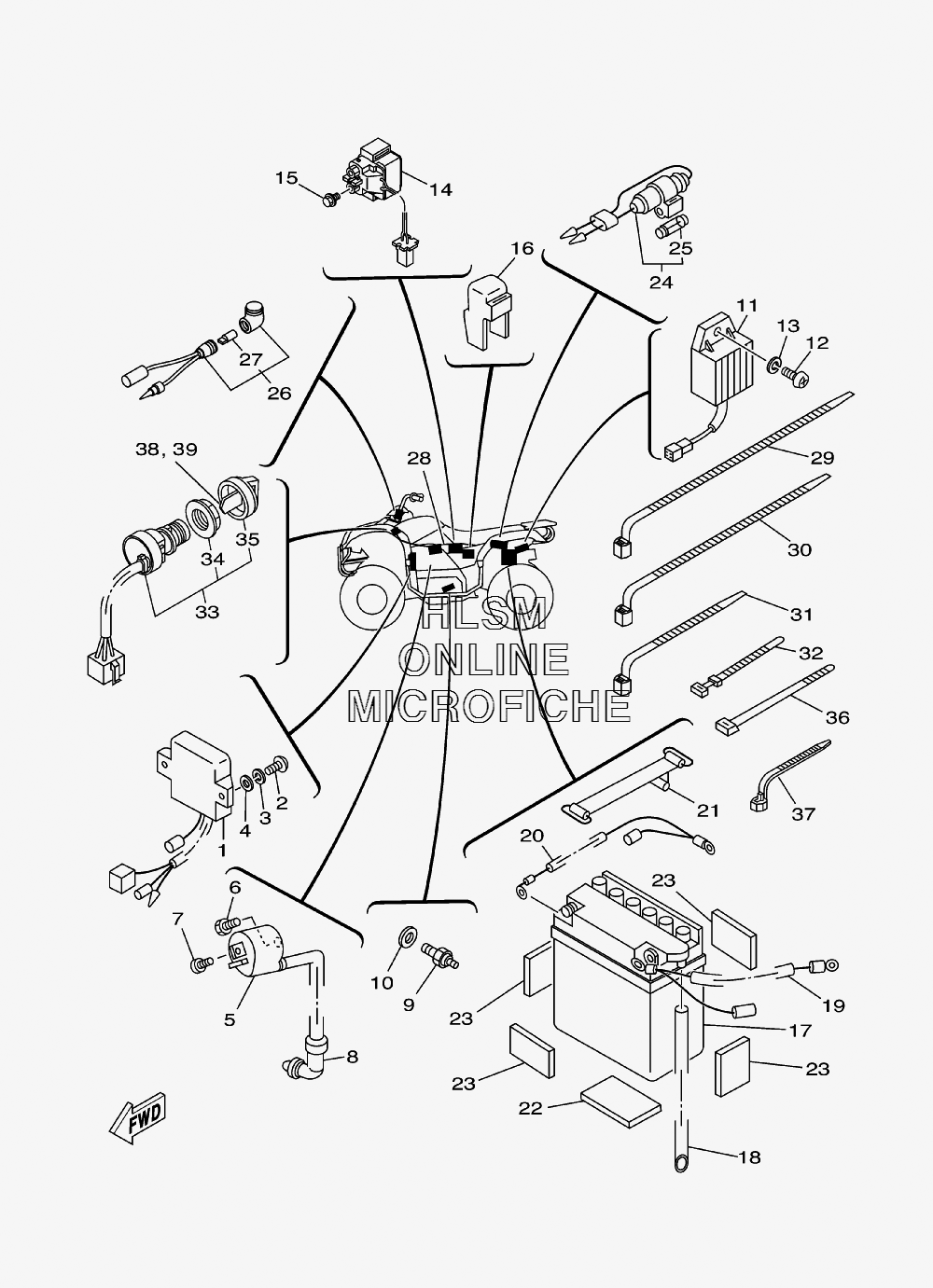

ELECTRICAL для Yamaha GRIZZLY 80 HUNTER - 2007 года выпуска`
-
№АртикулНазвание
-
14EM-85540-10-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
298507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
392907-06100-00 WASHER, SPRINGWASHER, SPRING
-
492907-06600-00 WASHER, PLATEWASHER, PLATE
-
54KJ-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
697007-06016-00 BOLTBOLT
-
790153-06034-00 SCREW, HEXAGONSCREW, HEXAGON
-
855X-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
93GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1090430-10148-00 GASKETGASKET
-
115TH-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1298507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1392907-06100-00 WASHER, SPRINGWASHER, SPRING
-
143MW-81940-01-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1595027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
161RL-81950-92-00 RELAY ASSYRELAY ASSY
-
1755X-82110-61-00 BATTERY ASSY (GS 12N7D-3B)BATTERY ASSY (GS 12N7D-3B)
-
1890445-085E0-00 HOSE (L450)HOSE (L450)
-
1955X-82115-01-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
203GB-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
214J2-82131-01-00 BAND, BATTERYBAND, BATTERY
-
2255X-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
2329W-82123-00-00 SEAT, BATTERYSEAT, BATTERY
-
243GB-82150-00-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
253GB-82151-00-00 ...FUSE (5A)...FUSE (5A)
-
264KB-83530-00-00 PILOT LIGHT ASSY (GREEN (NEUTRAL)PILOT LIGHT ASSY (GREEN (NEUTRAL)
-
275GH-83516-00-00 ...BULB (14V-1.7W)...BULB (14V-1.7W)
-
285TH-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
2990460-15126-00 CLAMP, HOSECLAMP, HOSE
-
3090464-12045-00 CLAMPCLAMP
-
3190464-13073-00 CLAMPCLAMP
-
32437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
334GB-82510-11-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
343HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
353HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
3690465-10098-00 CLAMPCLAMP
-
3790464-15195-00 CLAMPCLAMP
-
3890890-560001-00 KEY BLANK (A-TYPE)KEY BLANK (A-TYPE)
-
3990890-560002-00 KEY BLANK (B-TYPE) (OPT)KEY BLANK (B-TYPE) (OPT)
