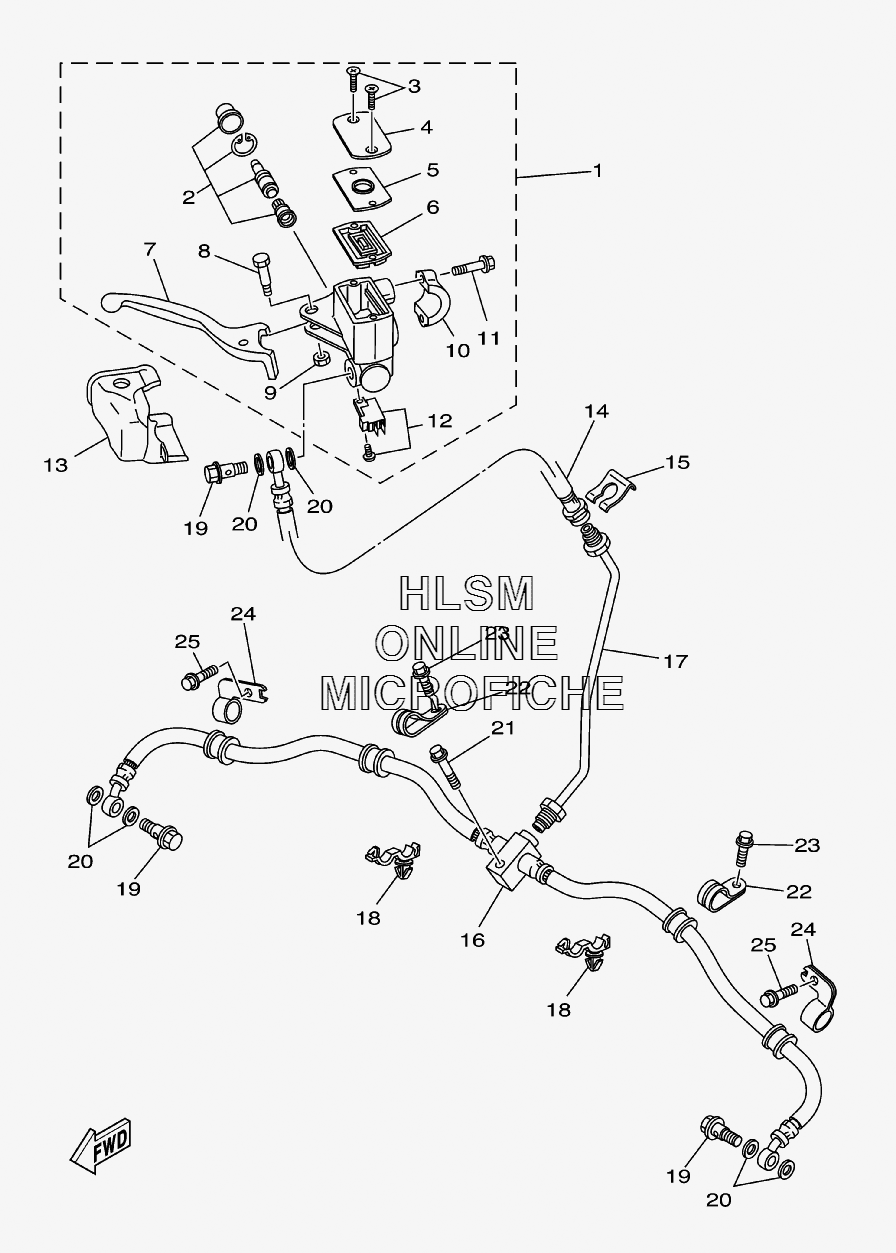

BRAKE - FRONT MASTER CYLINDER для Yamaha GRIZZLY 700 - 2007 года выпуска`
-
№АртикулНазвание
-
13B4-2583T-00-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
25LP-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
398706-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
43GM-25852-22-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
53B4-2585B-00-00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
64TT-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
73B4-83922-00-00 ...LEVER 2...LEVER 2
-
83B4-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
995604-06100-00 ...NUT, U...NUT, U
-
1056A-25867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
115EB-26332-00-00 ...BOLT...BOLT
-
124HM-83980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
133B4-2637A-00-00 COVER, HANDLE LEVER 2COVER, HANDLE LEVER 2
-
143B4-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
152GU-25866-00-00 CIRCLIPCIRCLIP
-
163B4-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
173B4-25871-00-00 PIPE, BRAKEPIPE, BRAKE
-
1890464-20010-00 CLAMPCLAMP
-
1990401-10159-00 BOLT, UNIONBOLT, UNION
-
2090201-10118-00 WASHER, PLATEWASHER, PLATE
-
2195822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
223B4-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2395802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
243B4-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2595802-06012-00 BOLT, FLANGEBOLT, FLANGE
