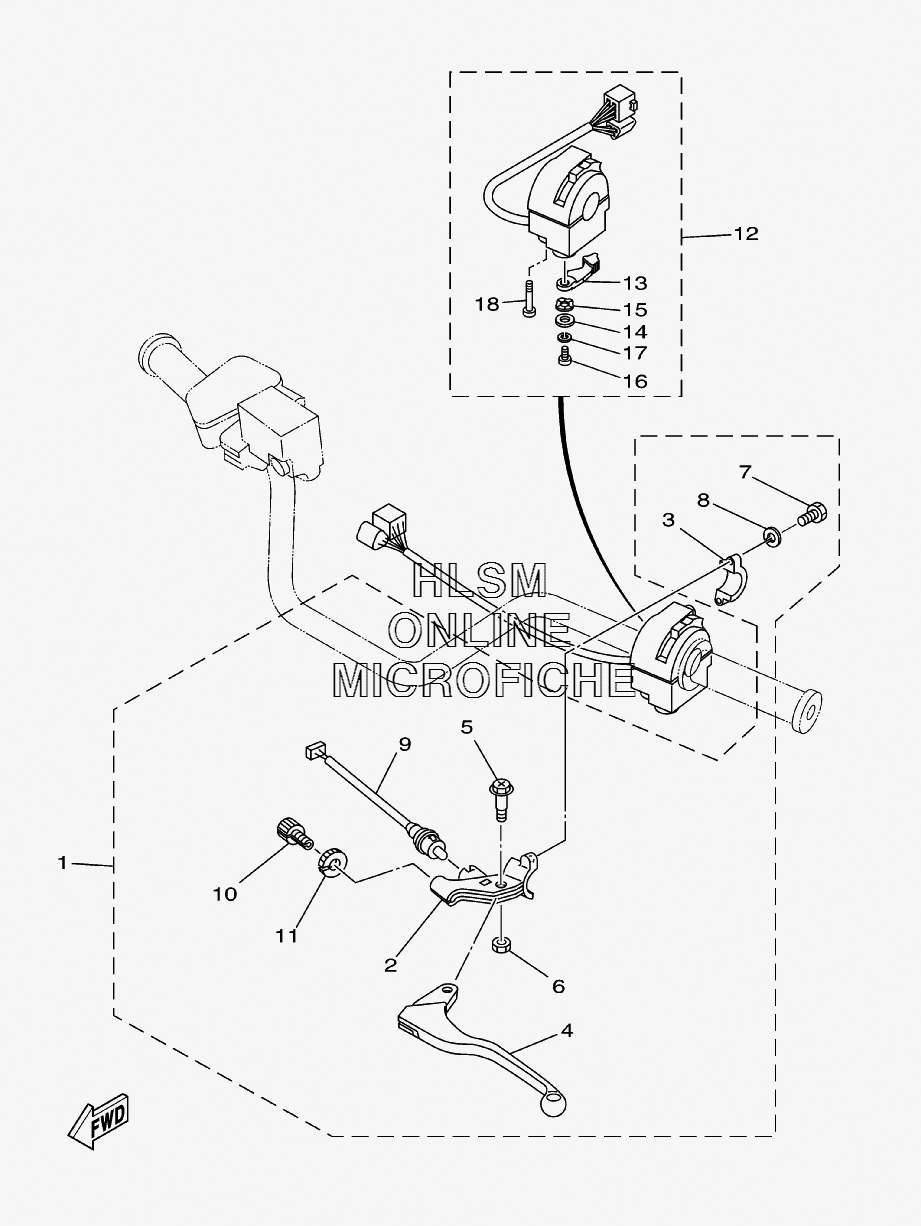

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha GRIZZLY 660 HUNTER - 2007 года выпуска`
-
№АртикулНазвание
-
15KM-82910-01-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
21YW-82911-02-00 ...HOLDER, LEVER 1...HOLDER, LEVER 1
-
32XJ-82913-00-00 ...HOLDER, LEVER LOWER 1...HOLDER, LEVER LOWER 1
-
423X-83912-00-00 ...LEVER 1...LEVER 1
-
590109-06799-00 ...BOLT...BOLT
-
695607-06100-00 ...NUT, U...NUT, U
-
798507-06020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
892907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
95KM-82917-00-00 ...SWITCH...SWITCH
-
1090123-08046-00 ...BOLT...BOLT
-
1190179-08148-00 ...NUT, SPEC'L SHAPE...NUT, SPEC'L SHAPE
-
125KM-83972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
135KM-83941-00-00 ...LEVER, STARTER...LEVER, STARTER
-
141UY-83909-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
153L4-83943-00-00 ...WASHER, STARTER...WASHER, STARTER
-
1698507-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1792907-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
1898507-05035-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
