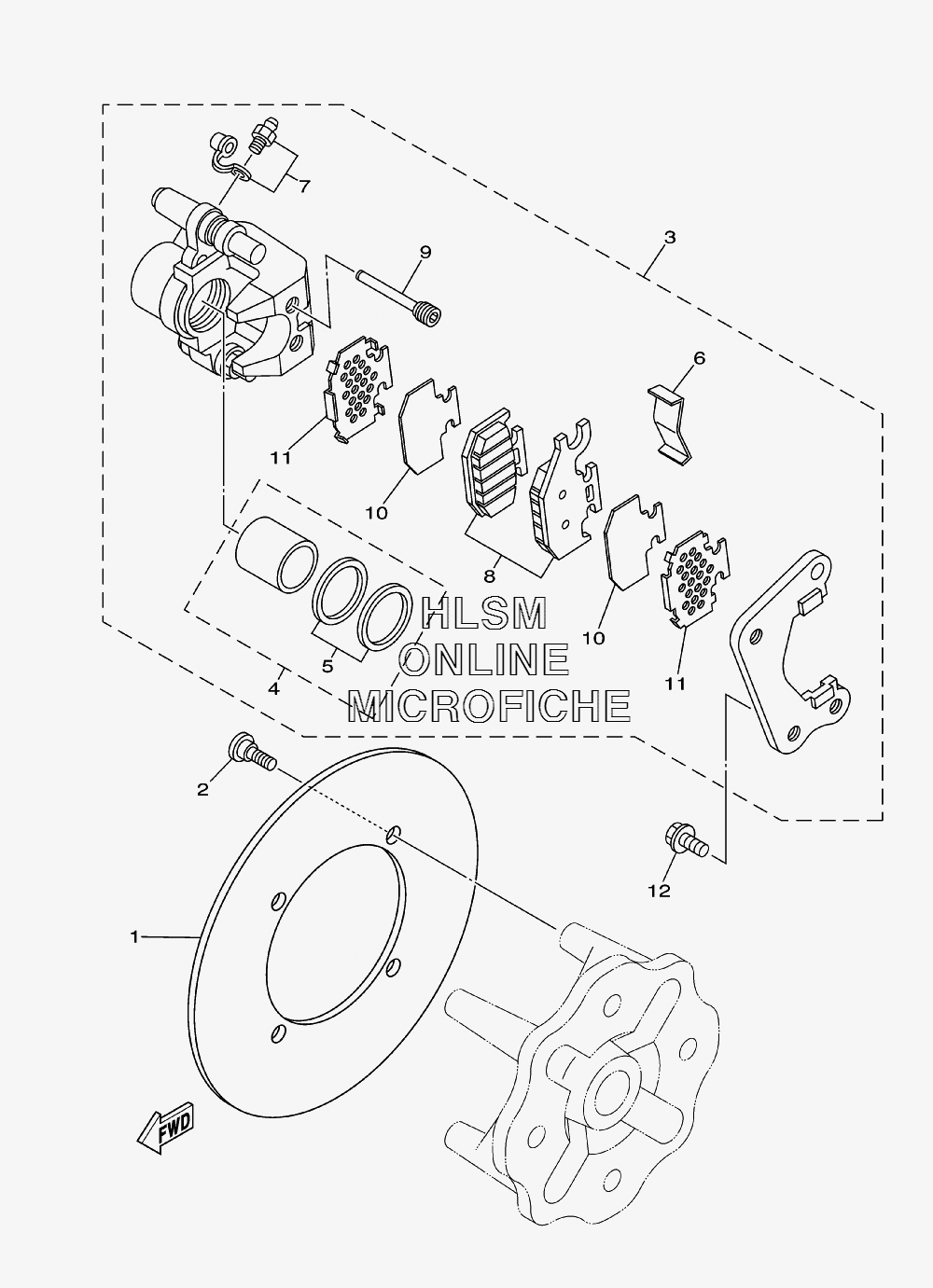

BRAKE - REAR CALIPER для Yamaha GRIZZLY 450 OUTDOORSMAN EDITION - 2007 года выпуска`
-
№АртикулНазвание
-
11D9-F5831-00-00 DISC, BRAKE (RIGHT)DISC, BRAKE (RIGHT)
-
290149-08268-00 BOLTBOLT
-
31D9-2580V-01-00 CALIPER ASSY, REAR 1CALIPER ASSY, REAR 1
-
43TB-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
53GD-W0047-00-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
64GY-25919-50-00 ...SUPPORT, PAD...SUPPORT, PAD
-
71UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
81D9-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
95GH-25924-00-00 ...PIN, PAD...PIN, PAD
-
105UG-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
115GH-25828-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
1290105-088B2-00 BOLT, WASHER BASEDBOLT, WASHER BASED
