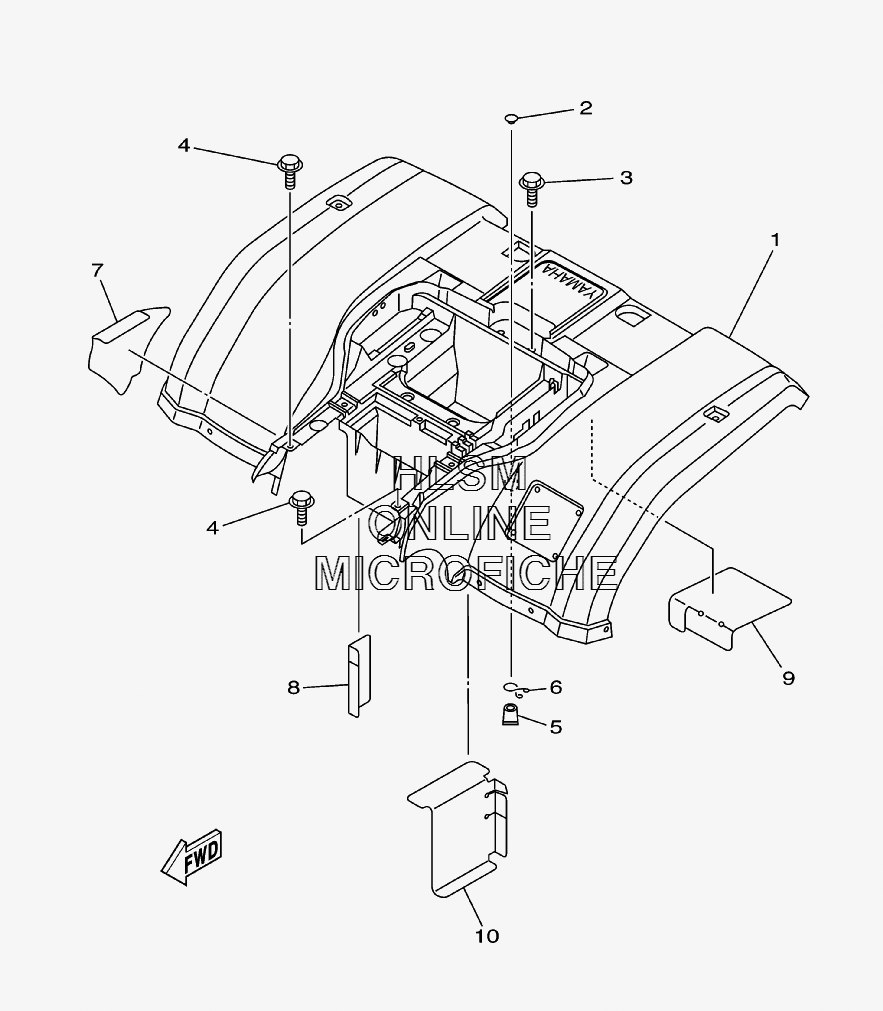

FENDER - REAR для Yamaha GRIZZLY 450 HUNTER - 2007 года выпуска`
-
№АртикулНазвание
-
15ND-F1600-E0-00 REAR FENDER ASSY.REAR FENDER ASSY.
-
290338-09801-00 PLUGPLUG
-
390119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490119-06227-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
55BF-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
690467-16195-00 CLIP, SCISSORCLIP, SCISSOR
-
75ND-F163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
85ND-F163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
95ND-F1652-00-00 PROTECTORPROTECTOR
-
105ND-F163F-00-00 COVER, REAR FENDER 3COVER, REAR FENDER 3
