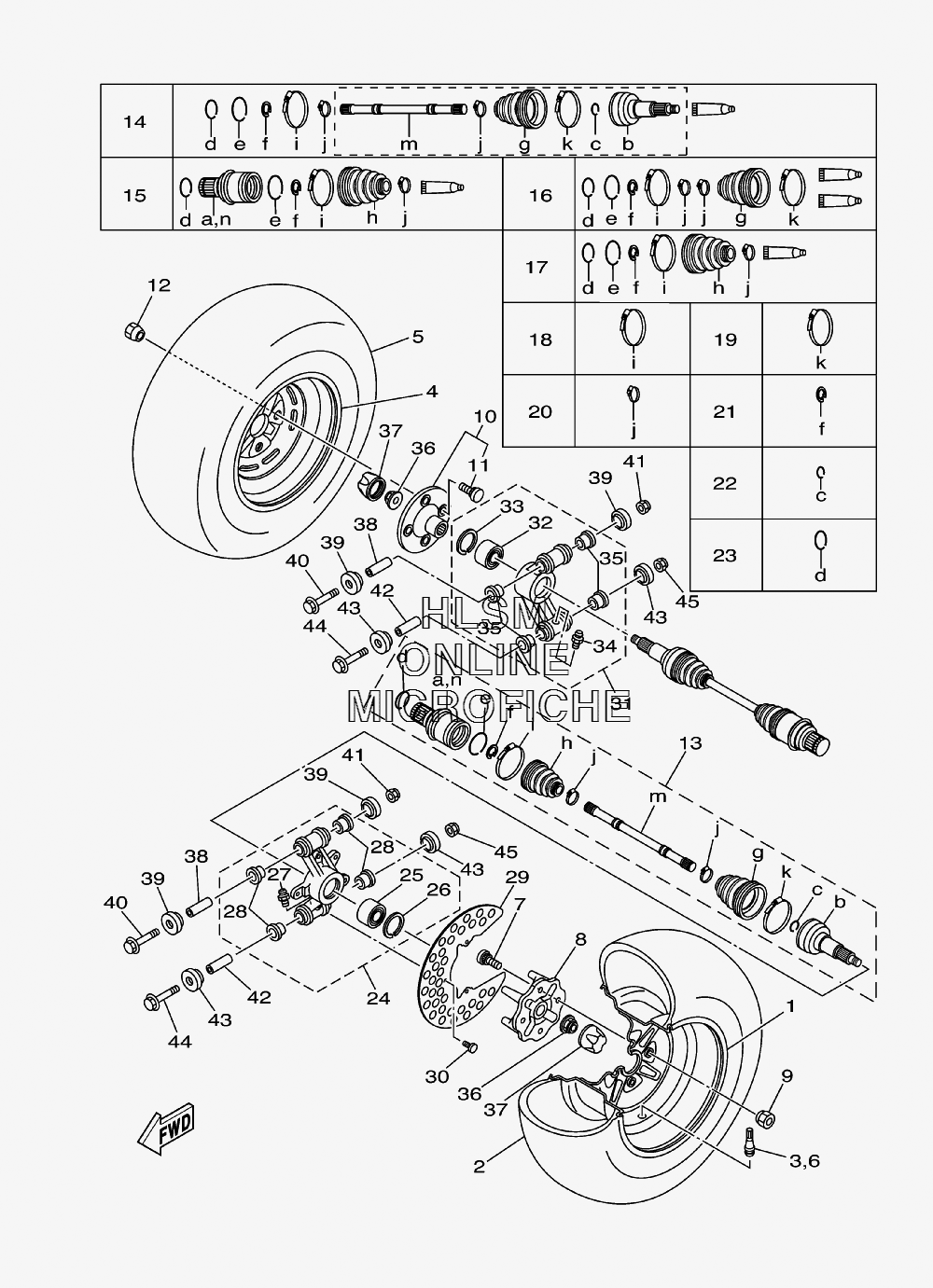

WHEEL - REAR W/ AXLE ASSY для Yamaha GRIZZLY 400 - 2007 года выпуска`
-
№АртикулНазвание
-
11D9-F5390-20-00 REAR RIM (12 X 7.5)REAR RIM (12 X 7.5)
-
294110-12809-00 TIRE (AT25 X 10-12 M980) CHENG SHINTIRE (AT25 X 10-12 M980) CHENG SHIN
-
393900-00813-00 VALVE, RIMVALVE, RIM
-
41D9-F5390-20-00 REAR RIM (12 X 7.5)REAR RIM (12 X 7.5)
-
594110-12809-00 TIRE (AT25 X 10-12 M980) CHENG SHINTIRE (AT25 X 10-12 M980) CHENG SHIN
-
693900-00813-00 VALVE, RIMVALVE, RIM
-
790114-10010-00 BOLT, SERRATIONBOLT, SERRATION
-
81D9-F5311-00-00 HUB, REARHUB, REAR
-
990179-10540-00 NUT, SPEC'L SHAPE (ATNUT, SPEC'L SHAPE (AT
-
101D9-F532E-00-00 HUB SUB-ASSYHUB SUB-ASSY
-
1190114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
1290179-10540-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
131D9-F531H-03-00 REAR DRIVE SHAFT ASSYREAR DRIVE SHAFT ASSY
-
141D9-F510F-00-00 ...BALL JOINT SET...BALL JOINT SET
-
151D9-F510J-01-00 ...DOUBLE OFF SET JOINT...DOUBLE OFF SET JOINT
-
165KM-2530X-11-00 ...BOOT SET (BALL JOINT)...BOOT SET (BALL JOINT)
-
175KM-2530Y-10-00 ...BOOT SET (DOUBLE OFFSET JOINT...BOOT SET (DOUBLE OFFSET JOINT
-
184KB-2511H-00-00 ...BOOT BAND (DOUBLE OFFSETJOINT...BOOT BAND (DOUBLE OFFSETJOINT
-
193HN-2511G-01-00 ...BOOT BAND (BALL JOINT)...BOOT BAND (BALL JOINT)
-
203HN-2512G-01-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
212HR-2512J-00-00 ...SNAP RING...SNAP RING
-
224KB-2512H-00-00 ...CIRCLIP...CIRCLIP
-
235KM-2536E-10-00 ...CLIP, SPRING...CLIP, SPRING
-
241D9-F530F-01-00 REAR KNUCKLE ASSYREAR KNUCKLE ASSY
-
2593305-00602-00 ...BEARING...BEARING
-
2699009-55500-00 ...CIRCLIP...CIRCLIP
-
2793700-06009-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
2890381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
291D9-F5718-00-00 PROTECTOR, DISC BRAKEPROTECTOR, DISC BRAKE
-
3090149-06280-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
311D9-F532F-01-00 REAR KNUCKLE ASSY, 2REAR KNUCKLE ASSY, 2
-
3293305-00602-00 ...BEARING...BEARING
-
3399009-55500-00 ...CIRCLIP...CIRCLIP
-
3493700-06009-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
3590381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
3690179-20006-00 NUTNUT
-
375GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
385KM-23448-00-00 SPACERSPACER
-
392NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
4090105-10480-00 BOLT, FLANGEBOLT, FLANGE
-
4190185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
425KM-23448-00-00 SPACERSPACER
-
432NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
4490105-10480-00 BOLT, FLANGEBOLT, FLANGE
-
4590185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
