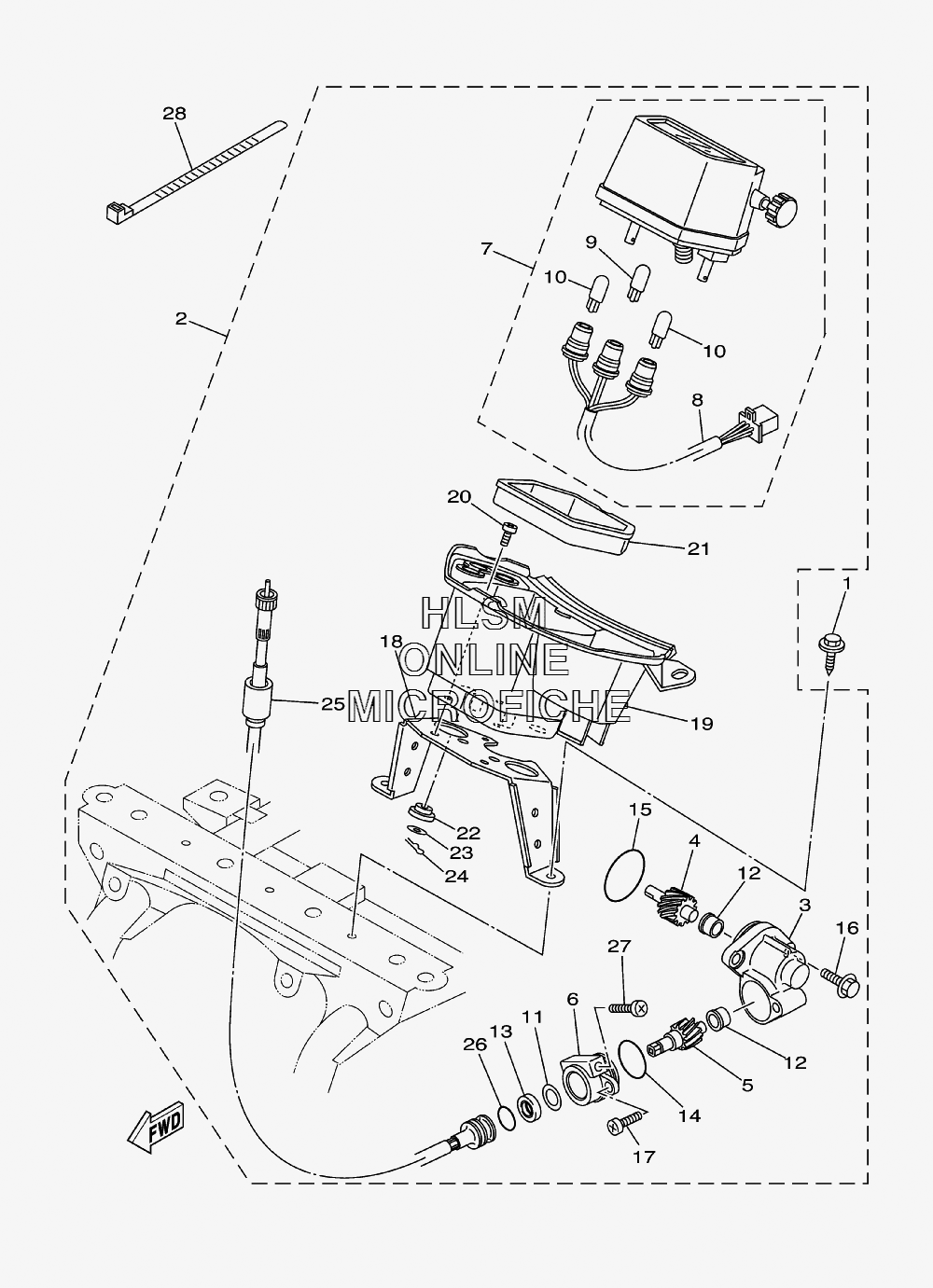

SPEEDOMETER ASSY. для Yamaha GRIZZLY 350 - 2007 года выпуска`
-
№АртикулНазвание
-
190119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
25UH-W0081-01-00 SPEEDOMETER KIT (OPT)SPEEDOMETER KIT (OPT)
-
34WV-17811-00-00 ...HOUSING, TACHOMETER GEAR...HOUSING, TACHOMETER GEAR
-
44WV-17831-00-00 ...GEAR, DRIVE...GEAR, DRIVE
-
54WV-17841-00-00 ...GEAR, DRIVEN...GEAR, DRIVEN
-
659V-17811-00-00 ...HOUSING, TACHOMETER GEAR...HOUSING, TACHOMETER GEAR
-
74SH-83570-00-00 ...SPEEDOMETER ASSY (MILE/H)...SPEEDOMETER ASSY (MILE/H)
-
84SH-83536-00-00 ...SOCKET, METER...SOCKET, METER
-
94R0-83517-00-00 ...BULB (12V-3.4W T10)...BULB (12V-3.4W T10)
-
103GM-83517-00-00 ...BULB (12V-1.7W)...BULB (12V-1.7W)
-
1190201-12M34-00 ...WASHER, PLATE...WASHER, PLATE
-
1290381-08002-00 ...BUSH, SOLID...BUSH, SOLID
-
1393102-08307-00 ...OIL SEAL...OIL SEAL
-
1493210-24253-00 ...O-RING...O-RING
-
1593210-32172-00 ...O-RING...O-RING
-
1695027-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1798507-06016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
185UH-F834L-00-00 ...BRACKET, METER...BRACKET, METER
-
195UH-F837L-11-00 ...PANEL, CONSOLE 1...PANEL, CONSOLE 1
-
2098507-05010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
215UH-H252R-00-00 ...DAMPER...DAMPER
-
221M1-83526-00-00 ...DAMPER 2...DAMPER 2
-
234X8-83524-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
24437-83525-00-00 ...CLIP...CLIP
-
255VH-H3550-00-00 ...SPEEDOMETER CABLE ASSY...SPEEDOMETER CABLE ASSY
-
2698517-06030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2793210-14104-00 ...O-RING...O-RING
