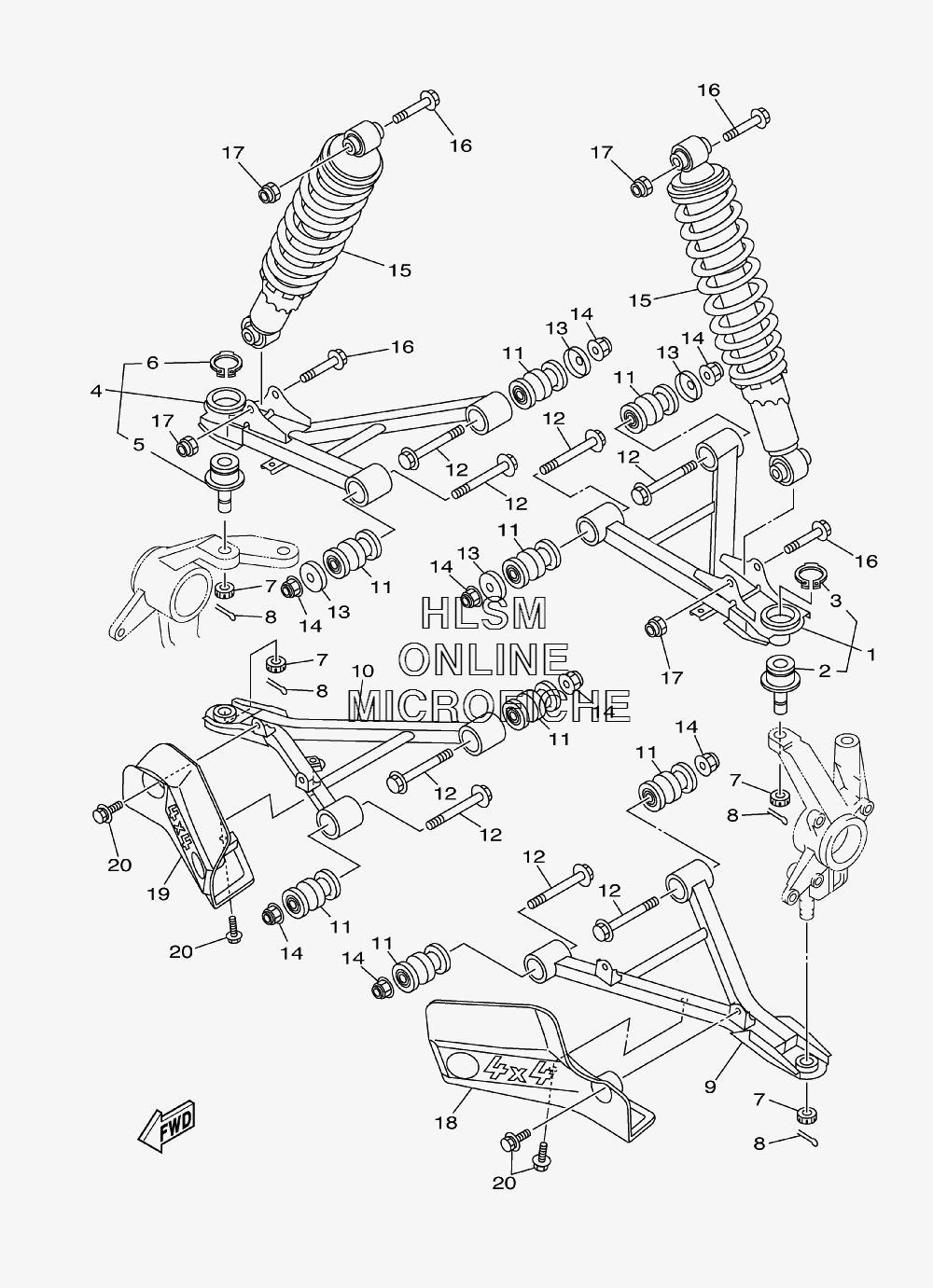

SUSPENSION - FRONT WHEEL для Yamaha BIG BEAR 400 IRS EXPLORING EDITION - 2007 года выпуска`
-
№АртикулНазвание
-
14S1-F3540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
25FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
393410-32826-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
44S1-F3550-00-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
55FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
693410-32826-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
790171-12816-00 NUT, CASTLENUT, CASTLE
-
891401-25020-00 PIN, COTTERPIN, COTTER
-
94S1-F357A-00-00 ARM,FR. LWR. LH.ARM,FR. LWR. LH.
-
104S1-F358A-00-00 ARM,FR. LWR. RH.ARM,FR. LWR. RH.
-
112HR-23526-00-00 BUSHBUSH
-
1290105-10890-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
135KM-22149-00-00 WASHERWASHER
-
1490185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
154S1-F3350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
1690105-108B1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1790185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
185FU-F3123-01-00 COVER, LOWER 1COVER, LOWER 1
-
195FU-F3133-01-00 COVER, LOWER 2COVER, LOWER 2
-
2090119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
