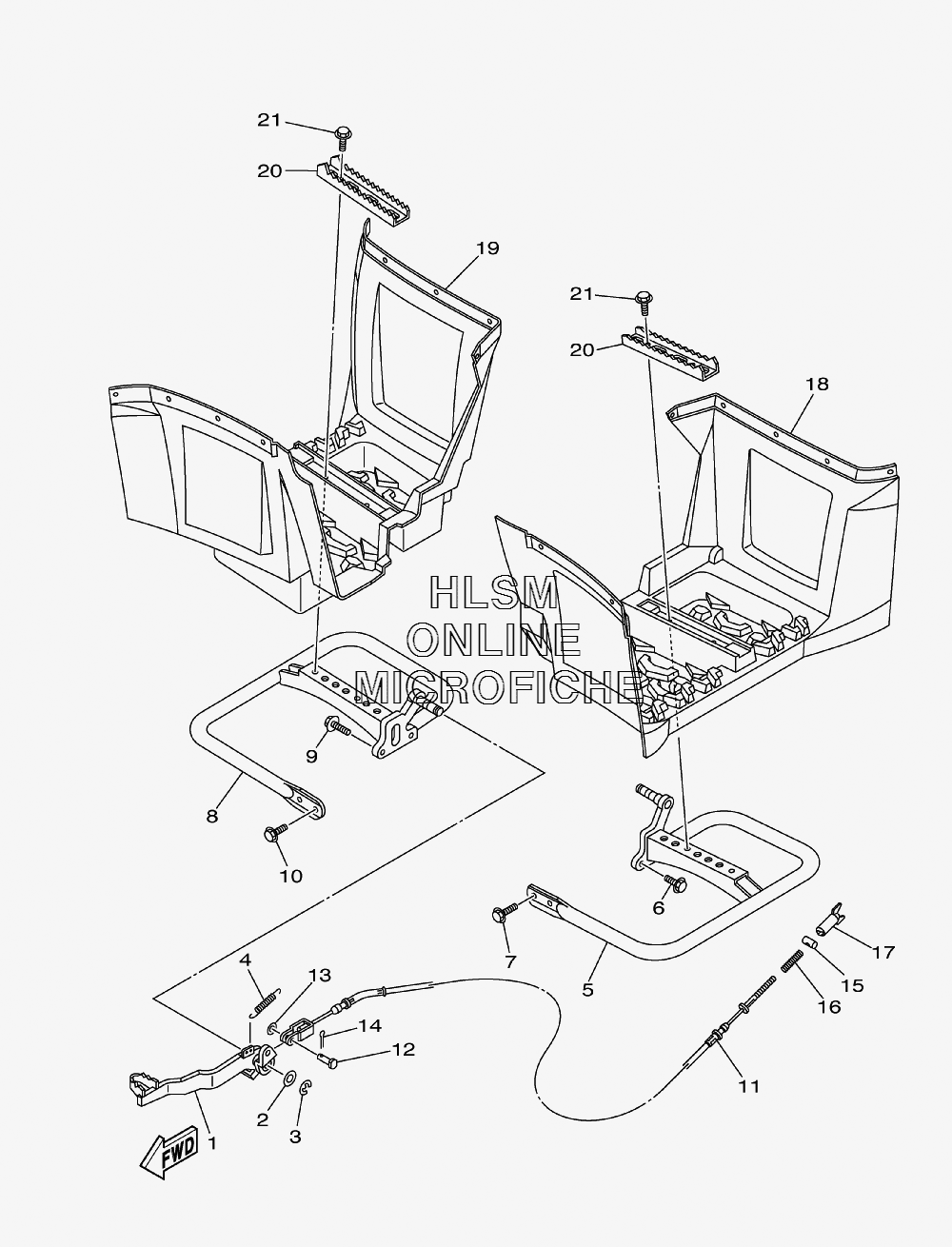

FOOTREST W/ BRAKE PEDAL для Yamaha BIG BEAR 400 HUNTER-IRS - 2007 года выпуска`
-
№АртикулНазвание
-
14S1-F7211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
290201-15797-00 WASHER, PLATEWASHER, PLATE
-
393430-12008-00 CIRCLIP, E-TYPECIRCLIP, E-TYPE
-
490506-16318-00 SPRING, TENSIONSPRING, TENSION
-
54S1-F7452-00-00 BRACKET, FOOTREST 1BRACKET, FOOTREST 1
-
695817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
79581P-08016-00 BOLT, FLANGEBOLT, FLANGE
-
84S1-F7462-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
995817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
109581P-08016-00 BOLT, FLANGEBOLT, FLANGE
-
114S1-26361-00-00 CABLE, BRAKECABLE, BRAKE
-
1290240-08124-00 PIN, CLEVISPIN, CLEVIS
-
1390201-08083-00 WASHER, PLATEWASHER, PLATE
-
1491401-20020-00 PIN, COTTERPIN, COTTER
-
1590249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
1690501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
174S1-F6343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
184S1-F7453-00-00 COVER 1COVER 1
-
194S1-F7463-00-00 COVER 2COVER 2
-
201P0-F741A-00-00 ARM 1ARM 1
-
219581P-06016-00 BOLT, FLANGEBOLT, FLANGE
