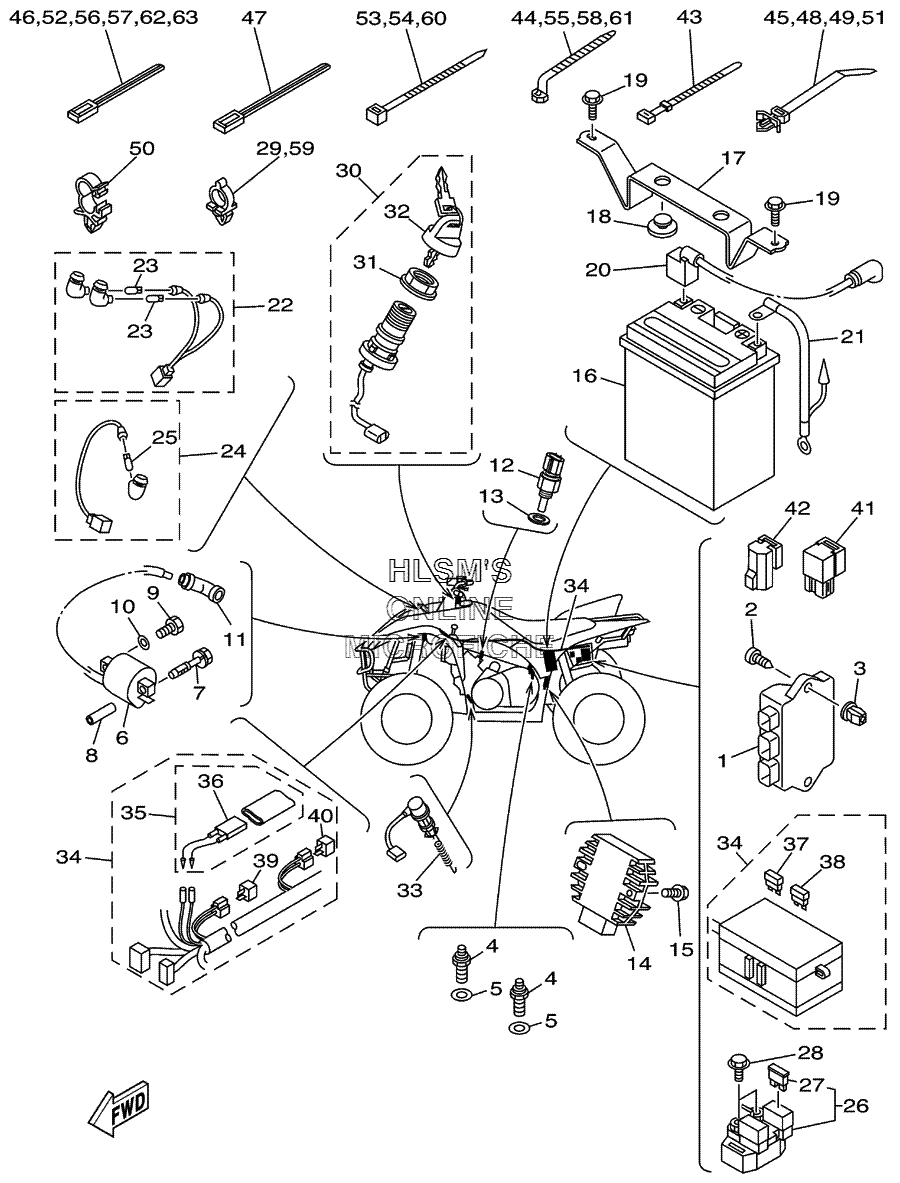

ELECTRICAL для Yamaha WOLVERINE 350 YFM35XV - 2006 года выпуска
-
№АртикулНазвание
-
15UH-85540-00-00 C.D.I. UNIT ASSY.C.D.I. UNIT ASSY.
-
297707-60420-00 SCREW, TAPPINGSCREW, TAPPING
-
390338-08226-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
43GB-82540-01-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
590430-10148-00 GASKETGASKET
-
65KM-82310-00-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
790109-06723-00 BOLTBOLT
-
85UH-H1318-00-00 SPACERSPACER
-
997007-06020-00 BOLTBOLT
-
1092907-06600-00 WASHER, PLATEWASHER, PLATE
-
111UY-82370-20-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
124GB-83591-10-00 THERMO UNITTHERMO UNIT
-
1390201-12172-00 WASHER, PLATEWASHER, PLATE
-
145GT-81960-00-00 RECTIFIER & REGULATOR ASSY.RECTIFIER & REGULATOR ASSY.
-
1595807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
165TE-H2100-00-00 BATTERY ASSY. (YUASA YTX14AH)BATTERY ASSY. (YUASA YTX14AH)
-
175TE-H2128-01-00 BRACKET, BATTERYBRACKET, BATTERY
-
18371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
1995807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
203D5-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
215UH-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
225TE-83530-00-00 PILOT LIGHT ASSY.PILOT LIGHT ASSY.
-
235GH-83516-00-00 ...BULB (14V-1.7W)...BULB (14V-1.7W)
-
244KB-83530-30-00 PILOT LIGHT ASSY. (RED) (OIL)PILOT LIGHT ASSY. (RED) (OIL)
-
255GH-83516-00-00 ...BULB (14V-1.7W)...BULB (14V-1.7W)
-
264XE-81940-12-00 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
272GH-82151-00-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
289502P-06008-00 BOLT, FLANGEBOLT, FLANGE
-
2990464-10833-00 CLAMPCLAMP
-
305LP-82510-00-00 MAIN SWITCH ASSY.MAIN SWITCH ASSY.
-
313HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
323HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
334KB-82530-10-00 STOP SWITCH ASSY.STOP SWITCH ASSY.
-
343D5-82590-00-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
355ND-82180-00-00 ...CIRCUIT BREAKER ASSY....CIRCUIT BREAKER ASSY.
-
365ND-82560-00-00 ......THERMO SWITCH ASSY.......THERMO SWITCH ASSY.
-
375JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
385JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
393WP-81980-00-00 ...RECTIFIER 2...RECTIFIER 2
-
404WA-81980-00-00 ...DIODE ASSY....DIODE ASSY.
-
415DM-81950-00-00 RELAY ASSY.RELAY ASSY.
-
4229U-81950-93-00 RELAY ASSY.RELAY ASSY.
-
4390464-51800-00 CLAMPCLAMP
-
4490464-12830-00 CLAMPCLAMP
-
4590464-25800-00 CLAMPCLAMP
-
4690464-31827-00 CLAMPCLAMP
-
4790464-40825-00 CLAMPCLAMP
-
4890464-25800-00 CLAMPCLAMP
-
4990464-25800-00 CLAMPCLAMP
-
5090464-16006-00 CLAMPCLAMP
-
5190464-25800-00 CLAMPCLAMP
-
5290464-31827-00 CLAMPCLAMP
-
5390464-48800-00 CLAMPCLAMP
-
5490464-48800-00 CLAMPCLAMP
-
5590464-12830-00 CLAMPCLAMP
-
5690464-31827-00 CLAMPCLAMP
-
5790464-31827-00 CLAMPCLAMP
-
5890464-12830-00 CLAMPCLAMP
-
5990464-10833-00 CLAMPCLAMP
-
6090464-48800-00 CLAMPCLAMP
-
6190464-12830-00 CLAMPCLAMP
-
6290464-31827-00 CLAMPCLAMP
-
6390464-31827-00 CLAMPCLAMP
